Better Home Products · Grab Bars

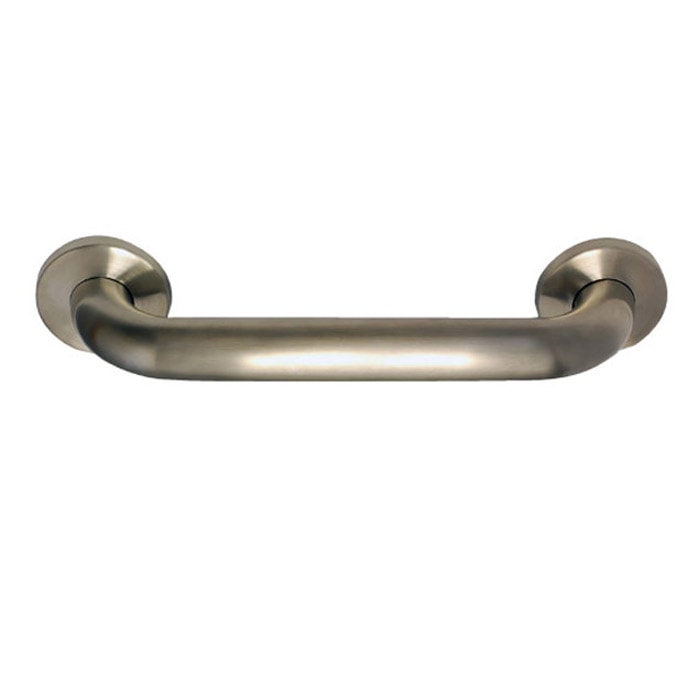

HC Series Grab Bars 1 1/2" O.D. Concealed
Item HC12
Project pricing by quote
Finish — Satin Nickel
2 optionsCoordinated grab bars from Better Home Products.
Product details
- Lengths from 12″, 18″, 24″, 36″, 42″ and 48″
- Individually Polybagged with 2″ stainless steel screws
- Type 304 stainless steel with satin finish
- Tubing: ).50″ wall thickness (18 Gauge), heliarc welded tubing
- Mounting Flanges: .078″ wall thickness (14 Gauge), heliarc welded to tubing
- Mounting flanges are 3″ in diameter and have 3 hole mount
- Length of Grab bar is measured from center of flange to center of flange
- Concealed flange covers are "snap on"
- All heavy-duty stainless steel grab bars have a 1 1/2″ wall clearance to meet ADA code requirements and are designed to withstand 1,000 lbs. push/pull, when properly installed
