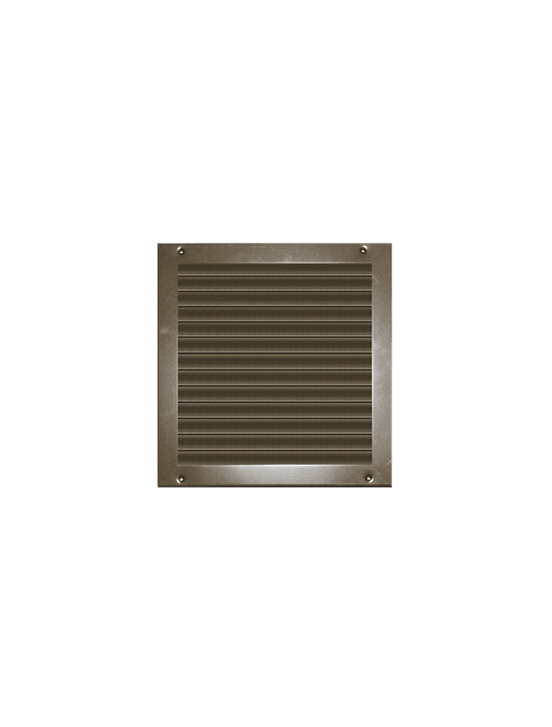

YLV Series

Features & options

• Divided Reverse “Y” Blade, Inverted Louvers
• 90-Minute Fire Rated Steel Louvers
• For use in fire-rated door applications under positive and neutral pressure
• Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), NFPA 252 (2012), CSI CODE 08 90 00 Louvers and Vents
• [Notes]
• Order size equal to opening size
• Follow all door manufacturer’s instructions for use and installation of all louver products
• Optional Insect screen
• FEATURES
• 18 Gauge cold rolled steel frame and blades
• Mitered welded corner frame construction
• Divided row “Y” blades spaced at 1” increments with blocked vision design
• Counter sunk mounting holes with screws for each side of doors
• Minimum door size thickness 1 ⅜”
• Baked on powder coat finish
• Color: Standard Bronze
• Fasteners: Phillips pan head screw 8 x ¾”
