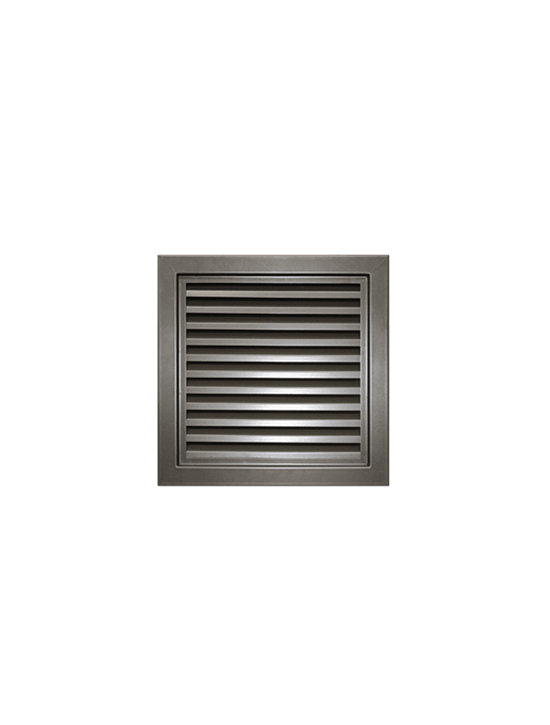

Manufacturer product view. Confirm the selected finish on your quote.
Features & options
- Inverted Y-Blade Louvers
- 90-Minute Fire Rated Steel Louvers
- For use in fire-rated door applications under positive and neutral pressure
- Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), NFPA 252 (2012), CSI CODE 08 90 00 Louvers and Vents
- [Notes]
- Order size equal to opening size
- Follow all door manufacturer’s instructions for use and installation of all louver products
- Optional Insect screen
- FEATURES
- Fusible Link Design Temperature 165°F Max
- 16 Gauge Cold Rolled Steel Frame and Blades
- Mitered Welded Corner Frame Construction
- Free Flow Area: 45% Free
- 1 9/16” Deep Louver Assembly
- Cadmium Plated Steel Rivets
- Cadmium Plated Steel Tension Spring
- Door Size Thickness: 1 ¾” Only
- Baked on Powder Coat Finish
- Fasteners: 3 x ¾” LG & 1 x ½” LG
Specifications
- Free Flow Area
- 45% Free
- Door Size Thickness
- 1 ¾” Only
- Fasteners
- 3 x ¾” LG & 1 x ½” LG
