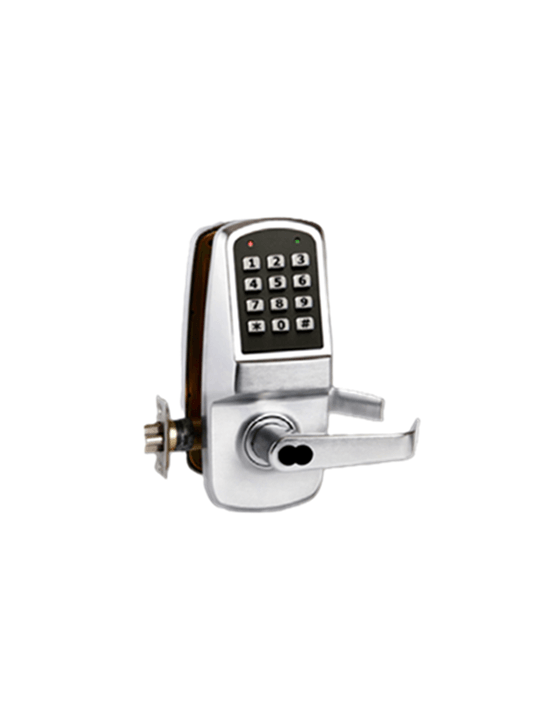

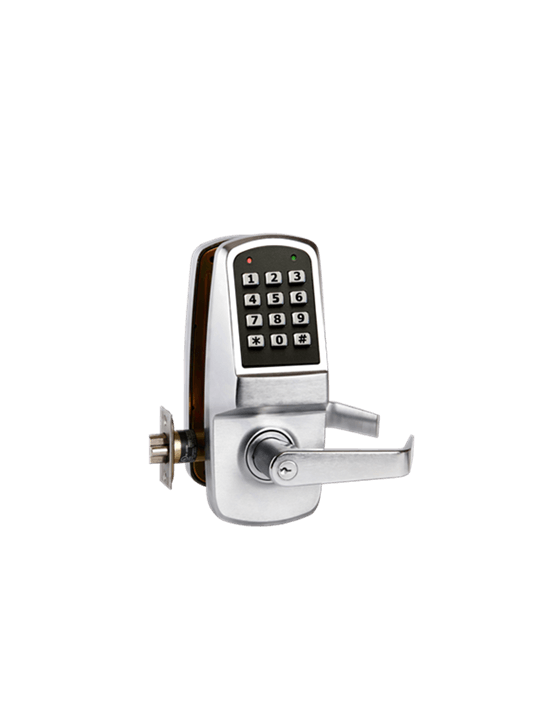

CR8000 Series

Specifications

Master PIN Code

Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.

Manager PIN Code

Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.

User PIN Code

This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.

One-Time User PIN Code

Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.

Passage Mode

Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen

Beep & LED Indicators

This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.

Lock-Out Mode

This feature is enabled by the Master PIN Code. When enabled, It Retricts all User PIN codes and RIFD CARD / KEYFOB access except Master PIN code. The padlock icon will appear on the screen when the unit is in lock-out mode.

Keypad Anti-Tamper Lock Out

This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be used to open the lock and reset to factory settings.

Weather Resistant

CR8000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water, and corrosion. All models are weather-resistant for temperature ranges of 30° F ~ 150° F (-35° C ~ +66° C).

Non-Handed

The CR8000 can be installed for both left and right door opening.

APPLICATIONS

For Offices, Schools, Hospitals, Apartments, Condo units, Hotel/Motel, Residential, Commercial, and Public buildings.

DOOR RANGES

1 ⅜” to 1 ¾ ” thickness.

BACKSET

2 ¾” standard or 2 ⅜”, 3 3/4” or 5” optional backset..

LATCH FACEPLATE

Standard 1 ⅛” x 2 ¼” for 2 ¾” backset. Optional 1” x 2 ¼” for 2 ⅜” backset.

STRIKES

ASA Strike standard, T and full lip strike available on request

ANSI STANDARDS

Meets ANSI / BHMA A156.2 Series 4000 Grade 1 requirements.

CLUTCH

Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

POWER SUPPLY

4AA Batteries (comes standard in packaging).

CYLINDER

6-pin solid brass “Schlage C” keyway standard with two brass keys per lock.

INTERCHANGEABLE CORE (IC)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST and FALCON. Prefix “IC” before part number.

KEYPAD

12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service codes.
