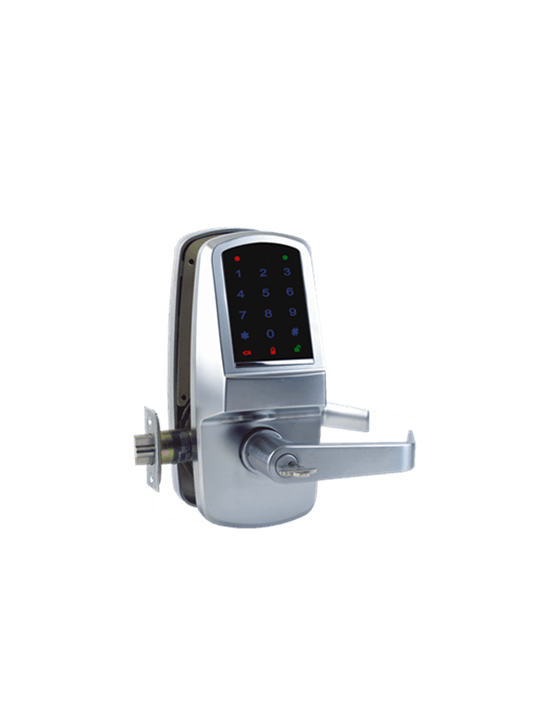

CR6000 Series

Specifications

Master PIN Code

Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock andreset to factory settings.

Manager PIN Code

Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.

User PIN Code

This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.

One-Time User PIN Code

Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.

Passage Mode

Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.

Beep & LED Indicators

This indicators can either be programmed or different settings. This feature is useful in making sure that every eypress was successfully entered.

Lock-Out Mode

This feature can either be enabled by the Master r Manager PIN Codes. When enabled, it restricts all User PIN codes ccess except Master and Manager PIN codes.

SMART Card

Compatible with existing MIFARE infrastructures.

Touch Screen Anti-Tamper Lock Out

This function will auto shut off the lock if an invalid code is entered 5 times in succession to prevent tampering.

Weather Resistant

CR6000 are manufactured making sure that internal electronic parts are protected form moisture, dust water and corrosion. All models are weather resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ +66°C).

Wake-Up Button

Pressing this button activates the number pad. Enter the PIN code when while the number pad is illuminated. This button is also used to quit programming mode.

APPLICATIONS

For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings.

DOOR RANGES

1 ⅜” to 2” thickness.

BACKSET

2 ¾” standard or 2 ⅜” optional backset.

LATCH FACEPLATE

Standard 1 ⅛” x 2 ¼” for 2 ¾” backset. Optional 1” x 2 ¼” for 2 ⅜” backset.

STRIKES

ASA Strike standard, T and full lip strike available on request.

ANSI STANDARDS

Certified ANSI / BHMA A156.2 Series 4000 Grade 1 requirements.

CLUTCH

Clutch technology allows turning of lever without retracting the latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

POWER SUPPLY

4 AA Batteries (comes standard in packing)

PROXIMITY CARD (STANDARD)

Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.

CYLINDER

6-pin solid brass “Schlage C” keyway standard with two brass keys per lock.

RFID KEYFOB (OPTIONAL)

Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3⁄16”.

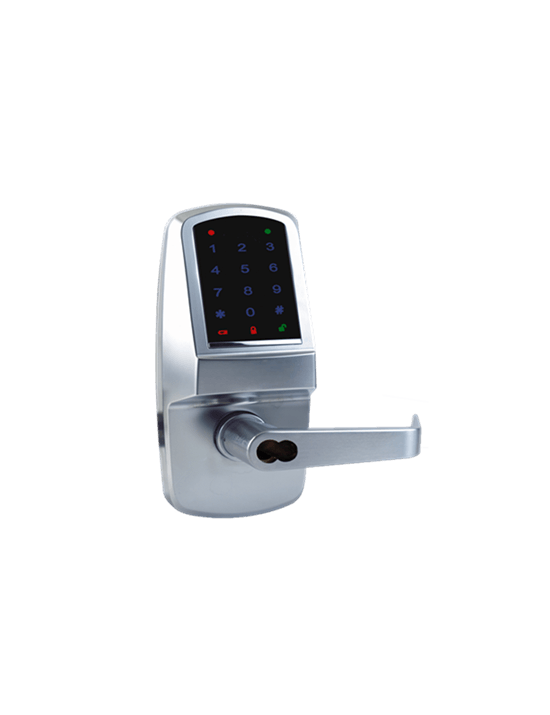

INTERCHANGEABLE CORE (IC)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST and FALCON. Prefix “IC” before part number.

TOUCH SCREEN

Responds to human touch enabling convenient entrance or access to the programming menu. After the operation has been completed, the lock reverts to sleep mode.
