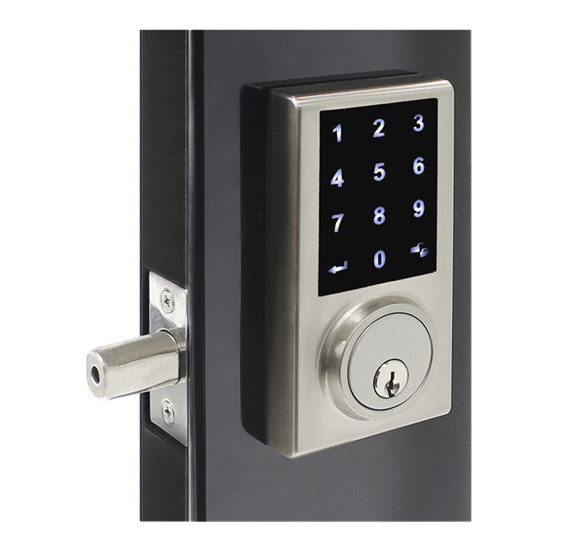

Manufacturer product view. Confirm the selected finish on your quote.
Cal-Royal · Electronic & Electrified
ZWDB-10 Series
Model ZWDB-10
Project pricing by quote
Finish — - Bright Brass
Stock finish and function combinations are confirmed on your quote.
Features & options
- Touch Screen Electronic Deadbolt
- For Residential and Standard Duty Commercial Applications
- Meets ANSI GRADE 3 Standards
- 1-Year Electronic Warranty
- User-friendly design
Specifications
- Applications
- For Residential and Standard Duty Commercial Applications
- Door Ranges
- 1 ⅜” (35mm) to 1 ¾” (45mm) Thickness
- Material
- Zinc Alloy and Steel
- Backset
- 2 ⅜” (60mm) or 2 ¾” (70mm) 2-Way Adjustable Backset
- Latch Faceplate
- 1” (25.4mm) x 2 ¼” (57mm) Square Corner
- Strike
- 1” (25.4mm) x 2 ¼” (57mm) Square Corner Strike
- Dimensions
- Exterior Trim: 5 ¼” (133mm) x 2 5/8” (67mm) x 11/16” (23mm) Interior Trim: 7 7/16” (189mm) x 2 7/8” (73mm) x 1 ⅛” (28mm)
- Cylinder & Keyways
- 5-Pin, Kwikset KW1 Keyway.
- Finishes
- US3 - Bright Brass US15 - Satin Nickel US26 - Bright Chrome US26D - Satin Chrome US12P - Tuscany Bronze • BUILT-IN Z-WAVE TECHNOLOGY TO CONNECT
