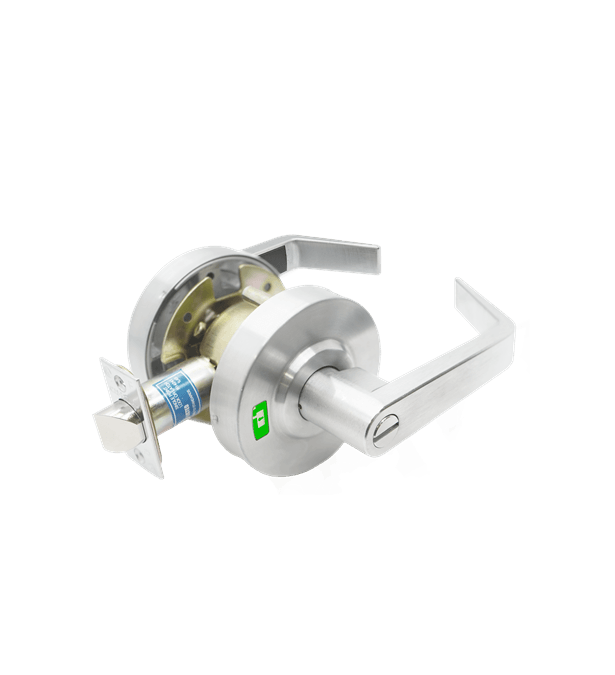

INDCGN-20 Series

Specifications

General

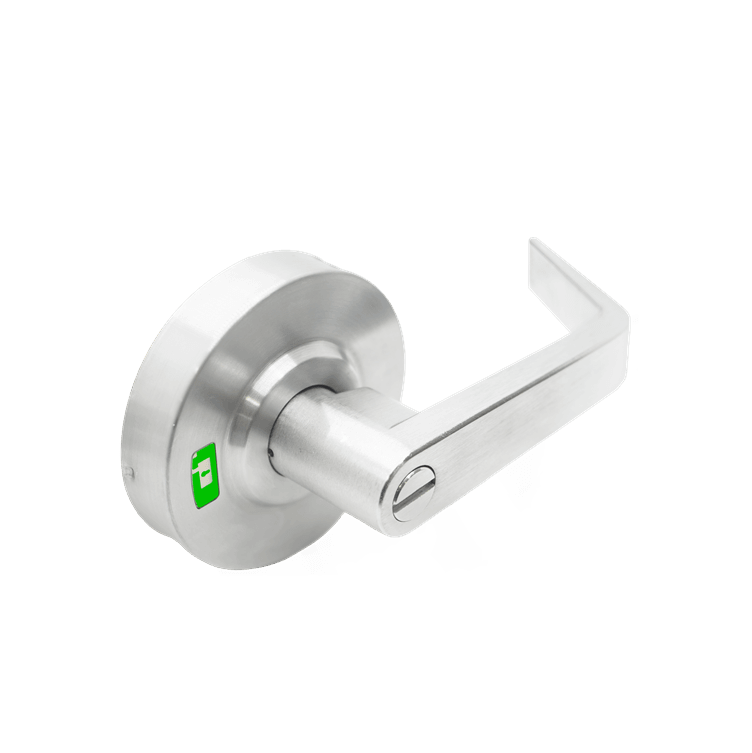

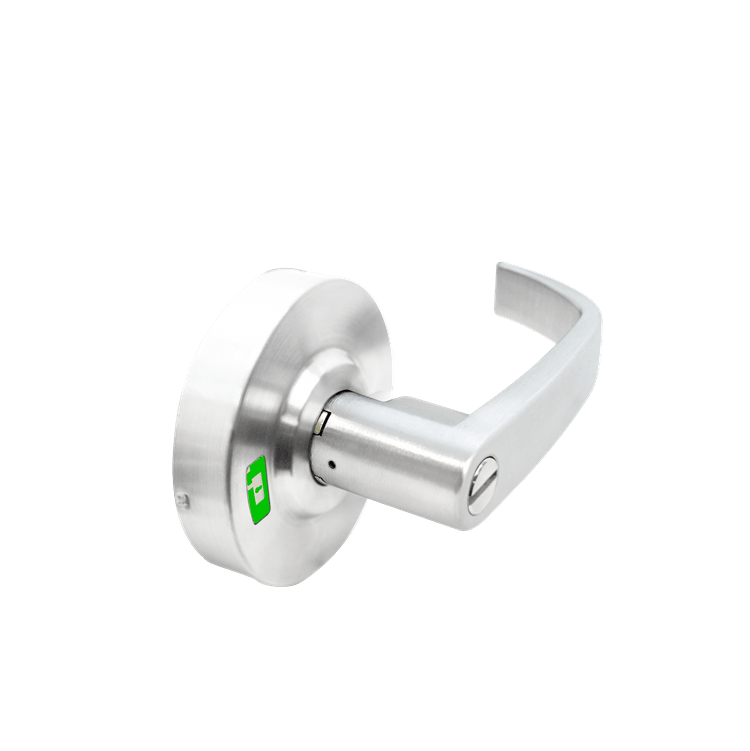

Full length 4 ¾” lever handle with ⅜” return. Rose diameter 3 9/16”. Non-handed levers. Concealed mounting screws.

Applications

For offices, schools, hospitals, corrosive environments, commercial and public buildings.

Door Ranges

For 1 ⅜” to 1 ¾” thick doors. Specify door thickness upon ordering.

Ansi Standards

Meets ANSI / BHMA A156.2 Series 4000, Grade 1 requirements.

Strikes

ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.

Trim

Thru-bolted assembly through door with separate spring cage for each lever.

Housing

Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛” diameter bore.

Latch Faceplate

Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.

Latch Options

2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” & 5” backset optional. GND750 deadlatch reversible for flat and beveled door. ¾” throw anti-friction deadlatch for pair of fire doors. EMERGENCY SLOT on the outside trim to unlock door in case of emergency.
