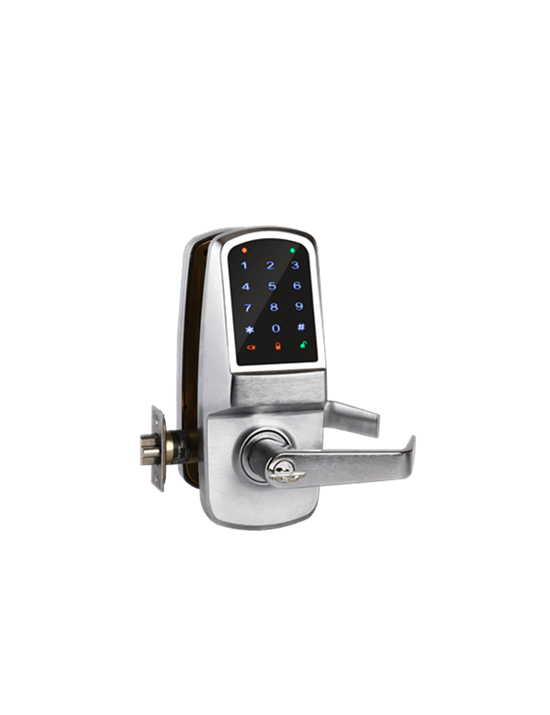

CR6100 Series

Specifications

Access Log (Audit Trail)

The ExperienSmart app features a 24/7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be saved as an excel file via email.

Anti-Tamper Lock-Out

The lock will shut down for 60 seconds and not allow operation, if invalid code is entered 5 times in succession to prevent tampering.

Beep & LED Indicators

These indicators can either be programmed for different settings. This feature is useful in making sure that everykeypress was successfully entered.

Smart Connect Module (item CR6000-BLE)

Optional device used for managing locks via the ExperienSmart app, 8m-10m detection range.

Lock-Out Mode

This feature is enabled by the Master PIN Code. When enabled, it restricts all User PIN codes and RFID CARD / KEYFOB access except Master PIN code. The padlock icon will appear on the screen when the unit is in lock-out mode.

Low Battery Warning

The low battery icon on the screen will blink when battery power is low.

Master PIN Code

Use for programming the lock and entering User PIN codes. Can also be use to open the lock and reset to factory settings.

NFC (Near Field Communication) Interface

NFC compatible for android phones.

One-Time User PIN Code

Can only be used once. This lock can store up to 2 one-time User PIN code simultaneously.

Passage Mode

Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.

Re-Lock Time

When the code is successfully entered and the device unlocks, it will automatically relock after 5 seconds by default. Through feature settings, the re-lock time may be changed from 1 to 10 seconds.

RFID Card (Standard); RFID Keyfob (Optional)

Compatible with existing MIFARE infrastructures.

Touch Screen (Lock Activation)

Touch the screen to activate lock. Enter the PIN code when while the number pad is illuminated. Also same as using the RFID card/keyfob.

User PIN Code

This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 500 RFID Card/Keyfob and 500 User PIN codes each, 4 to 6 digit code combination.

Weather Resistant

CR6100 Series models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ +66○C).

APPLICATIONS

For offices, schools, hospitals, apartments, condo units, hotel / motel, residential, commercial, and public buildings

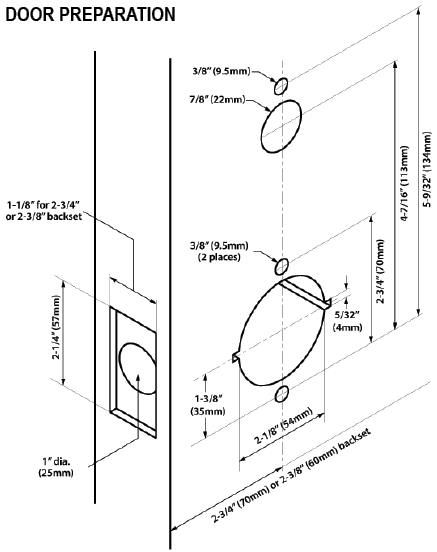

DOOR RANGES

1 ⅜” to 1 ¾” thickness.

BACKSET

2 ¾” standard or 2 ⅜” optional backset

LATCH FACEPLATE

Standard 1 ⅛” x 2 ¼” for 2 ¾” backset. Optional 1” x 2 ¼” for 2 ⅜” backset.

STRIKES

ASA Strike standard, T and full lip strike available on request.

ANSI STANDARDS

Meets ANSI / BHMA A156.2 Series 4000 Grade 1 requirements.

CLUTCH

Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

CYLINDER

6-pin solid brass “Schlage C” keyway standard with two brass keys per lock.

PROXIMITY RFID CARD (STANDARD)

2 pcs. included. Compatible with existing MIFARE infrastructures. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16"

RFID KEYFOB (OPTIONAL)

Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 ³⁄₁₆”.

POWER SUPPLY

4 AA 1.5V Alkaline Batteries (comes standard in packaging).

SMARTPHONE CONNECTIVITY (OPTIONAL)

Lock can be managed / synced using the ExperienSmart app for both Apple & Android phones. (Smart Connect Module installation required).

INTERCHANGEABLE CORE (IC)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST and FALCON. Prefix “IC” before part number.

TOUCH SCREEN

Responds to human touch enabling convenient entrance or access to the programming menu. After the operation has been completed, the lock reverts to sleep mode.
