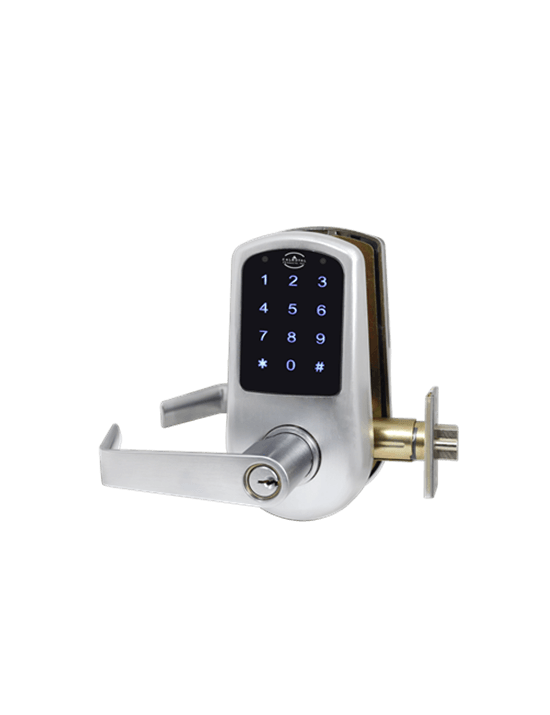

Manufacturer product view. Confirm the selected finish on your quote.
Cal-Royal · Electronic & Electrified
CR9000 Series
Model CR9000
Project pricing by quote
Finish — Satin Chrome
Features & options
- Digital touch screen door lock with clutch technology.
- ANSI / BHMA Grade 2
- Optional interchangeable core for Best, Falcon, Arrow.
- Main Features
- Master Code
- User pin code up to 50 codes, 4 - 6 digits
- One-time user pin code up to 2 different codes, 4 - 6 digits
- Non-handed, field reversible levers
- UL / CUL listed up to 20-minute rating
- Conformed to ada requirementfor barrier-free accessibility
- Enables lock-out mode
- Enables passage mode
- Stand-alone touchscreen feature
- Touch to wake-up
- Low battery indicator
- Auto re-lock time
- Sound on / off
- 2-year warranty
- Specifications
- 1” x 2 ¼” (25mm x 57mm) square corner, beveled, for 2 ⅜” (60mm) backset optional.
Specifications
- APPLICATIONS
- For offices, schools, hospitals, apartments, condo units, hotel / motel, residential, commercial, and public buildings
- DOOR THICKNESS
- 1 ⅜” (35mm) ~ 1 ¾” (45mm) standard.
- BACKSET
- 2 ¾” (70mm) standard or 2 ⅜” (60mm) optional backset.
- LATCH FACEPLATE
- 1 ⅛” x 2 ¼” (28mm x 57mm) square corner, beveled, for 2 ¾” (70mm) backset standard.
- STRIKES
- ANSI Curved lip strike 1 ¼” x 4 ⅞” x 1 ³⁄₁₆” (32mm x 124mm x 30mm) lip to center standard. Optional (“T”, “Full-lip”) strikes available on request, lip lengths and strike box available.
- ANSI STANDARDS
- Meets ANSI / BHMA A156.2 Series 4000, Grade 2 strength and operational requirements.
- CLUTCH
- Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.
- LATCH BOLT
- ½” (13mm) throw solid brass, deadlocking on keyed and non-keyed function.
- CYLINDER
- 6-pin solid brass “Schlage C” keyway standard with two brass keys per lock.
- LEVER MECHANISM
- Free wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.

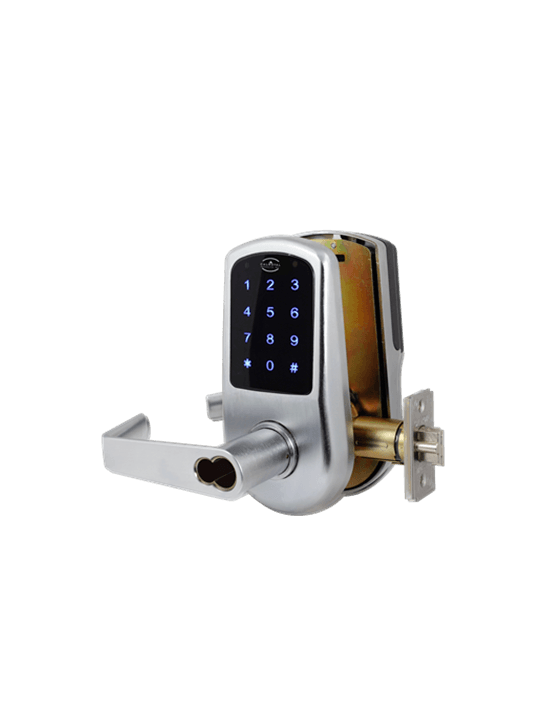

- INTERCHANGEABLE CORE (IC)
- Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST and FALCON. Prefix “IC” before part number.
- POWER SOURCE
- Powered by 4 AA Alkaline batteries.
- WEATHER RESISTANT
- All models are weather-resistant for temperature ranges of -30°F ~ 150°F (-35°C ~ 66°C) at 85% relative humidity.
