Cal-Royal · Electronic & Electrified

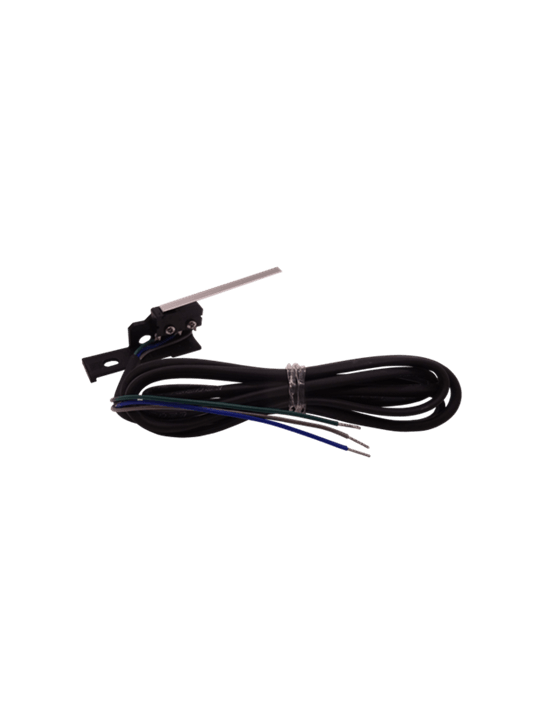

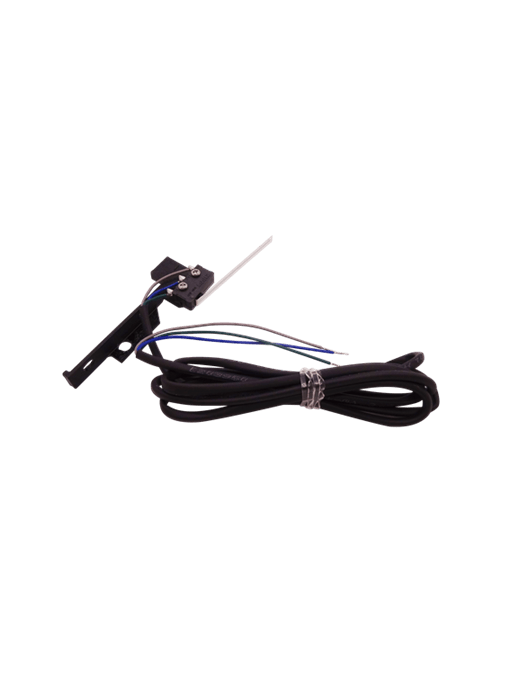

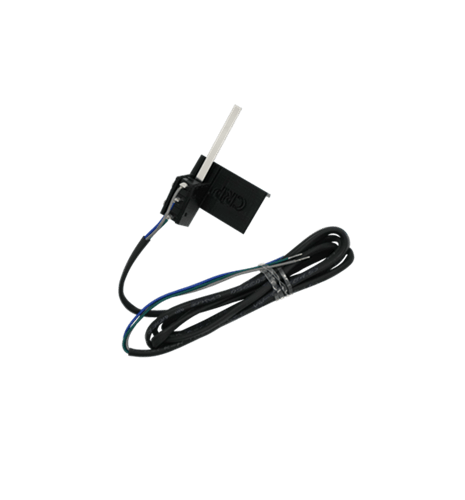

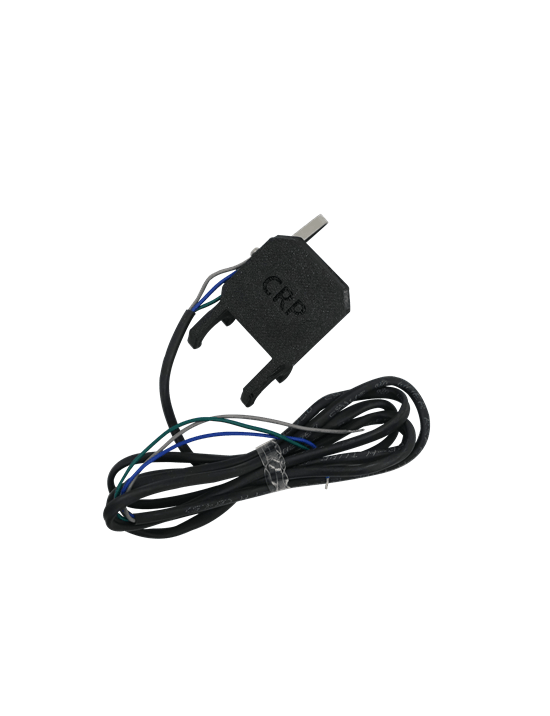

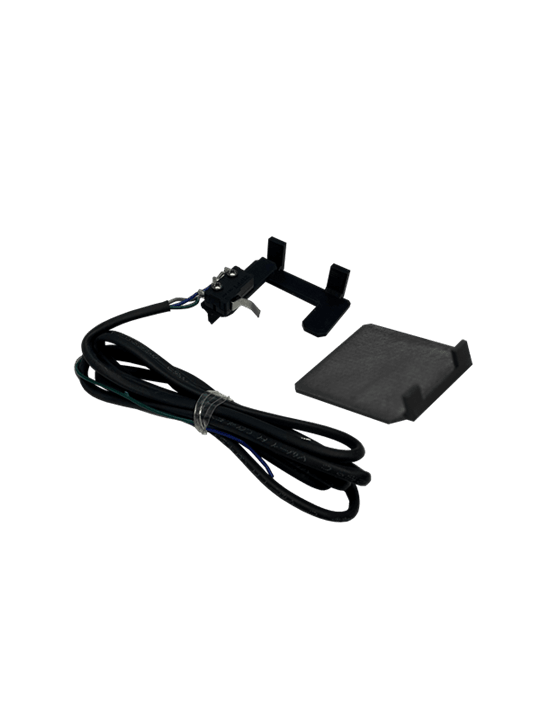

RX & LBM Switches
Model RX7700
Project pricing by quote
Features & options
- Applicable for 9800, 7700 and 2200 series exit device
- RX (REQUEST TO EXIT) signal switch features is used to signal the use of an opening from the push side.
- LBM (LATCH BOLT MONITORING) signal switch monitors both egress and access of an opening.
- When the push pad is depressed, the switch is activated
- These devices are equipped with an internal SPDT (SINGLE PULL, DOUBLE THROW) switch that monitors the touch bar
- Field install
Product documents
SpecificationRXLBM SpecsInstallation Instructions - RX77000RX7700-SWITCH INSTALLATION INSTRUCTIONInstallation Instructions - RX2298RX2298-SWITCH INSTALLATIN INSTRUCTIONInstallation Instructions - RX7700-FLRRX7700-FLR SWITCH INSTALLATION INSTRUCTIONInstallation Instructions - LBM7700LBM7700 INSTALLATION INSTRUCTIONInstallation Instructions - LBM2298LBM2298 INSTALLATION INSTRUCTION
