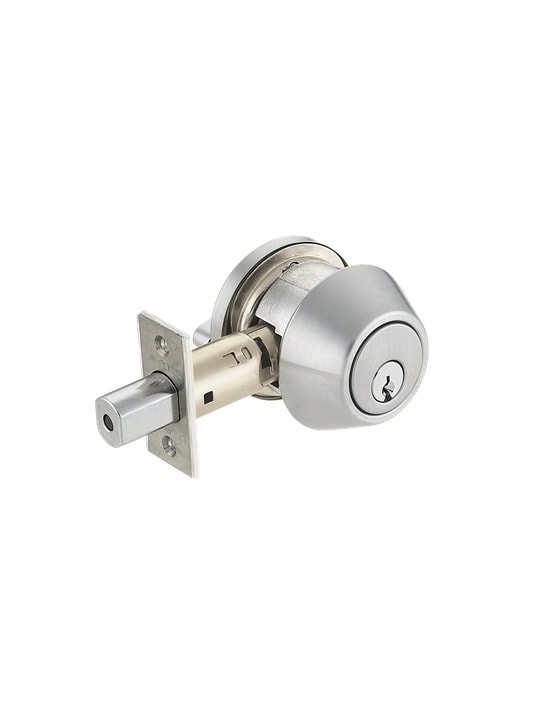

T300 Series

Specifications

Trim

Wrought Brass or Stainless Steel.

Door Ranges

Adjustable 1 ⅜” (35mm) to 1 ¾” (45mm) door thickness. Optional 2 ¼“ thick doors. Specify conversion kit for single (CONV T360) or double (CONV T362) Cylinder.

Backset

Adjustable UL Listed 3 Hour Fire Rating 2 ⅜” or 2 ¾” latch bolt.

Strike

1 ⅛” x 2 ¾” square corner. Extra security 1” throw bolt with ¼” free spinning anti-cut through pin. 2 pcs x 3” screws with wood frame reinforcer greatly strengthens door frames.

Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Interchangeable Core

Interchangeable Core locks will accept compatible 6 or 7-Pin cores with BEST, FALCON and ARROW. Interchangeable Core locks will also accept SCHLAGE full size Large format OEM interchangeable core cylinders and compatible Schlage 6-pin Interchangeable Core. Interchangeable Core offered by Cal-Royal Products, Inc. 2 ½” 1 ”7 8 1 ” 1” 2 ½” 1 ” 1” ¼” (6mm) thru bolts for high security Sturdy, all steel latch case and mechanism 1” (25mm) throw high-strength steel alloy deadbolt with anti-saw pin Steel mounting plateADA Ergonomic Thumb Turn Removable Solid Brass Standard “C” 6-pin cylinder. Available with Small Format and Large Format Interchangeable Core Plastic Filler for use on 1 ⅛” door preparation Anti-pry shield (Zinc Alloy) One-piece steel housing for extra strength
