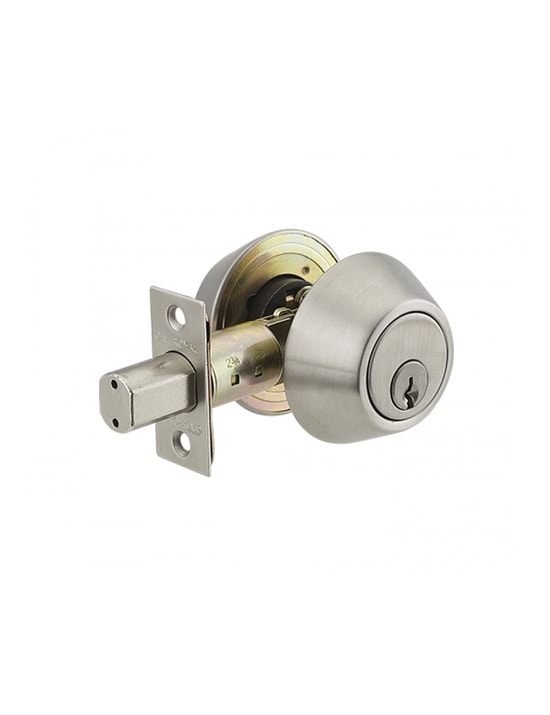

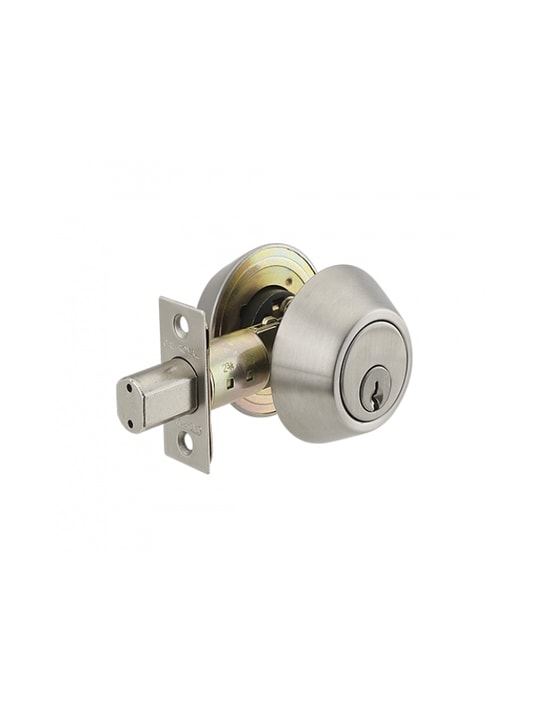

LSD Series

Specifications

Trim

Wrought Brass or Stainless Steel.

Backset

Adjustable 2 ⅜” or 2 ¾”.

Door Ranges

Adjustable 1 ⅜” (35mm) to 1 ¾” (45mm) door thickness.

Keyways

6 pin solid brass “C” keyway standard. Optional Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Strike

1 ⅛” x 2 ¾” square corner.

Finishes

LSD SERIES is available in US32D, US26, US26D, US10B, US3, US5, US15, and US1 finish. Refer to price list for other stock finishes and functions. One-piece steel housing for extra strength Adjustable 2 ⅜” or 2 ¾” latch Latch front adapter to convert 1” face plate to 1 ⅛” wide door preparations Sturdy, all steel latch case and mechanism Conforms with ANSI A156.36 Grade 3, Exceeds 100,000 cycles
