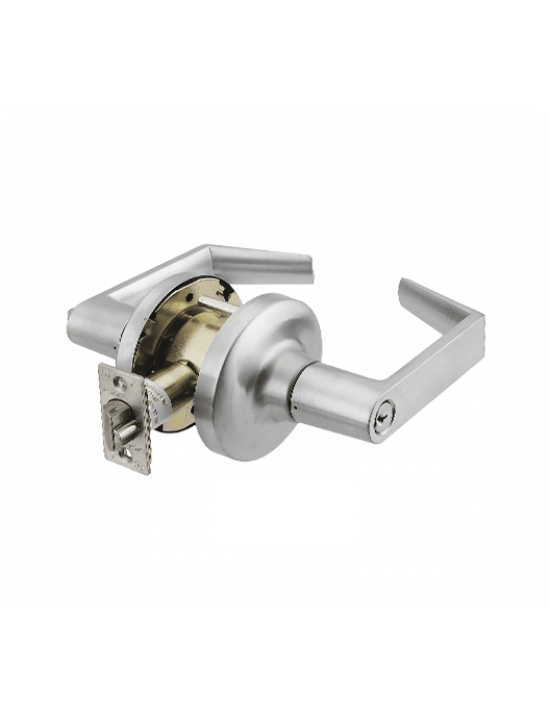

Calypso Series

Specifications

Applications

For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.

Door Ranges

1 ⅜” to 2” thickness doors.

Backset

2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.

Latch Faceplate

2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.

Strikes

ASA strike standard, “T” and full lip strike available on request.

Cylinder & Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Interchangeable Core

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.

Ansi Standards

Meets or exceeds requirements of ANSI / BHMA A156.2 Series 4000, Grade 1 TACTILE & LEAD LINING available upon request. Meets ADA requirements Specially designed for Barrier Free Application Conforms with ANSI / BHMA A156.2, Series 4000, Grade 1 Requirements, Exceeds 1,000,000 Cycles
