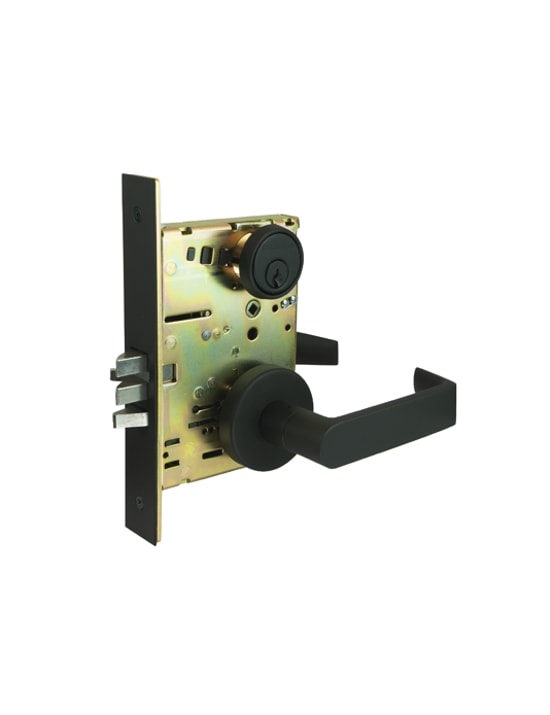

Manufacturer product view. Confirm the selected finish on your quote.
Cal-Royal · Locksets
NM Series US19 Finish

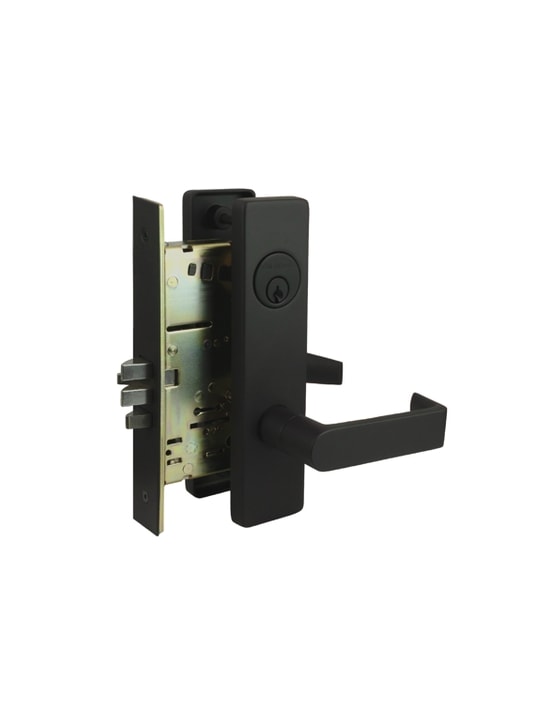

Model SS Sectional Trim
Project pricing by quote
Finish — Polished Brass
Black Finish
View manufacturer productFeatures & options
- BHMA Certified Lifetime Warranty, GRADE 1
- Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Optional Interchangeable Core
- Rust-proof heavy duty 2 ¾" backset lock case
- Individual spring to prevent lever sag, easily reversible
- Forged brass lever handles exceed requirements of ADA (American Disability Act)
- Auxiliary latch bolt
- Armored front plate conceals lock mounting screws
- 1" throw heavy duty deadbolt with anti-saw hardened pins
- Heavy duty ¾" latch bolt with anti-friction latch, easily reversible
- Optional Electrified Locks available
- Conforms & Meets ADA Regulations
- For more designs and details, please refer to the NM Series page.
Specifications
- Finishes
- Symbol BHMA Description US3 605 Polished Brass US4 606 Satin Brass US10 612 Satin Bronze US10B 613 Oil Rubbed Bronze US19 622 Flat Black Coated US26D 626 Satin Chrome US26 625 Polished Chrome US32D 630 Stainless Steel
- Strike
- 1 ¼” x 4 ⅞” 32 mm x 124 mm
Product documents

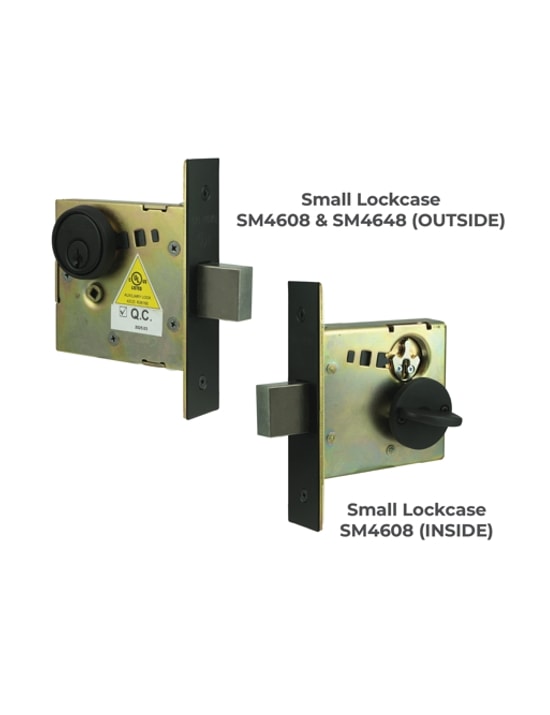

Features & SpecificationNM SpecsAccessoriesNM AccessoriesTemplate - NM8010 Wood or Composite Doors Escutcheon TrimNM8010 Mortise Lockset 0924 Template - M8460 Series Mortise DeadboltM8460 Template - NM8040 Wood or Composite Doors Escutcheon TrimNM8040 Mortise Lockset0924 Template - SM4608 Series Mortise DeadboltSM4608-Small-DeadboltTemplate - NM8050 Wood or Composite Doors Escutcheon TrimNM8050 Mortise Lock0924 Template - SM4628 Series Mortise DeadboltSM4628-Small-DeadboltTemplate - NM8056 Wood or Composite Doors Escutcheon TrimNM8056 Mortise Lock1024Template - SM4638 Series Mortise DeadboltSM4638-Small-DeadboltTemplate - NM8070 Wood or Composite Doors Escutcheon TrimNM8070 Mortise lock0924 1Template - SM4648 Series Mortise DeadboltSM4648-Small-DeadboltTemplate - NM8071 Wood or Composite Doors Escutcheon TrimNM8071 Mortise Lockset CSLTemplate - M8462 Series Mortise DeadboltM8462 Template - NM8080 Wood or Composite Doors Escutcheon TrimNM8080 Mortise Lock0924 Template - M8463 Series Mortise DeadboltM8463 Template - NM8170 Wood or Composite Doors Escutcheon TrimNM8170 Mortise Lock0923Template - M8464 Series Mortise DeadboltM8464 Template - NM8082 Wood or Composite Doors Escutcheon TrimNM8082 Mortise Lock0924 Template - M8400 Series Mortise DeadboltM8400-Series-Mortise-Deadbolt-TemplateTemplate - NM8172 Wood or Composite Doors Escutcheon TrimNM8172 Mortise Lock0923Template - NM8444 Wood or Composite Door Escutcheon TrimNM8444 Mortise Lock 0924Template - NM8445 Wood or Composite Door Escutcheon TrimNM8445 Mortise Lock v4 Template - NM8453 Wood or Composite Doors Escutcheon TrimNM8453 Mortise Lock 1024 Template - NM8456 Wood or Composite Doors Escutcheon TrimNM8456 Mortise Lock 0924Template - NM8457 Wood or Composite Doors Escutcheon TrimNM8457 Mortise lock 0924Template - NM8465 Wood or Composite Doors Escutcheon TrimNM8465 0924Template - NM8466 Wood or Composite Doors Escutcheon TrimNM8466 Mortise Lock 0924Template - NM8473 Wood or Composite Doors Escutcheon TrimNM8473 1024Template - NM8480 Wood or Composite Doors Escutcheon TrimNM8480 Mortise Lockset Stormroom with Deadbolt 1024Template - NM8486 Wood or Composite Doors Escutcheon Trim with IndicatorNM8486 Mortise Lock with OCCUPIED Indicator 1024Template - NM8495 Mortise Lock Privacy with OCCUPIED IndicatorNM8495 Mortise Lock Privacy with OCCUPIED Indicator ver 22 1024 Template - NM Series LFPNM Series Face Plate with corresponding latch holeInstallation Instructions - NM SeriesInstallation Instructions - NM SeriesInstructions [How to Change Handing] - New NM SeriesNew NM series How to Change handing 20220615Cross ReferencesNM CrossReferencePart NumbersNM Part Numbers
