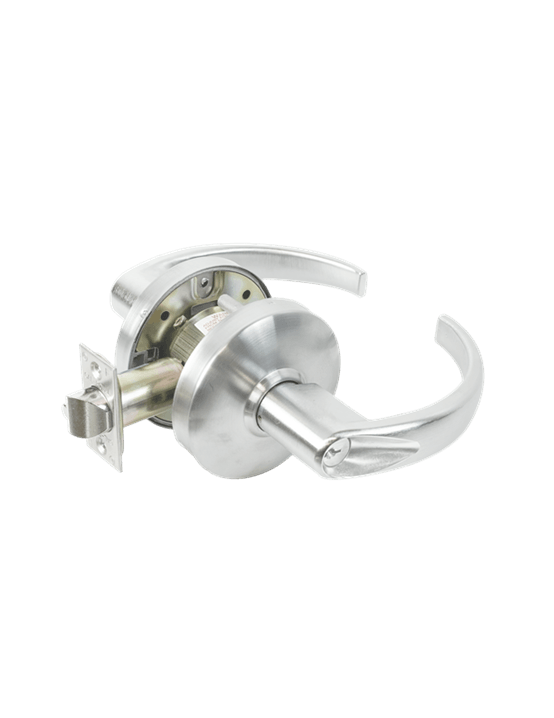

Genesys Series

Specifications

General

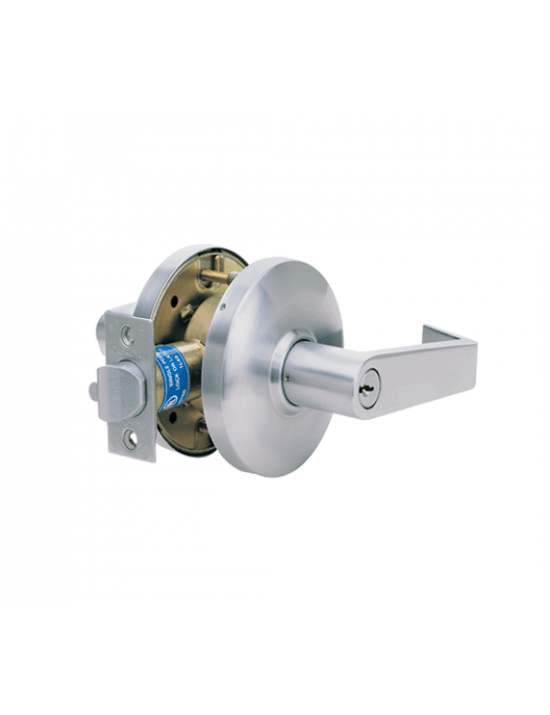

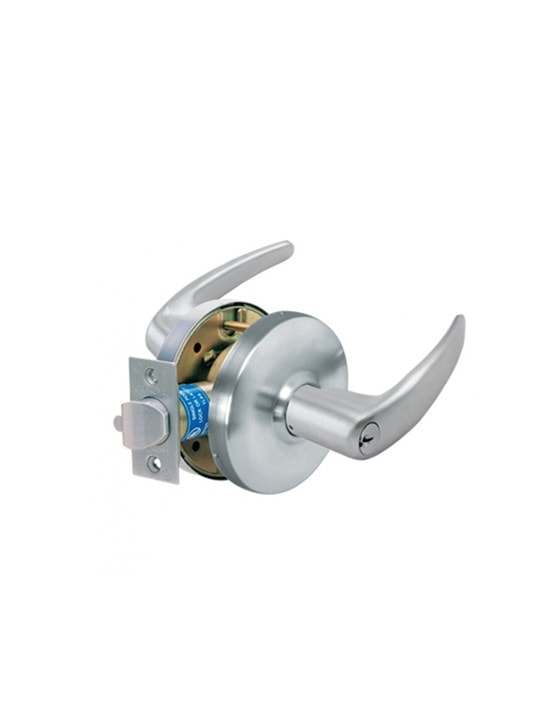

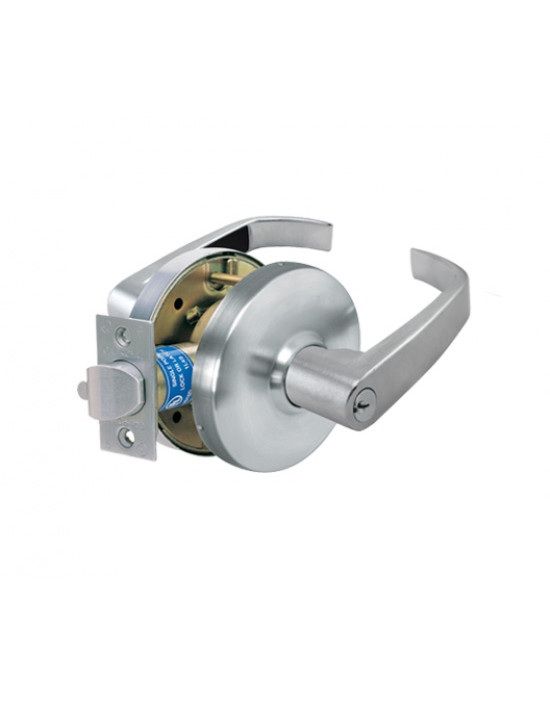

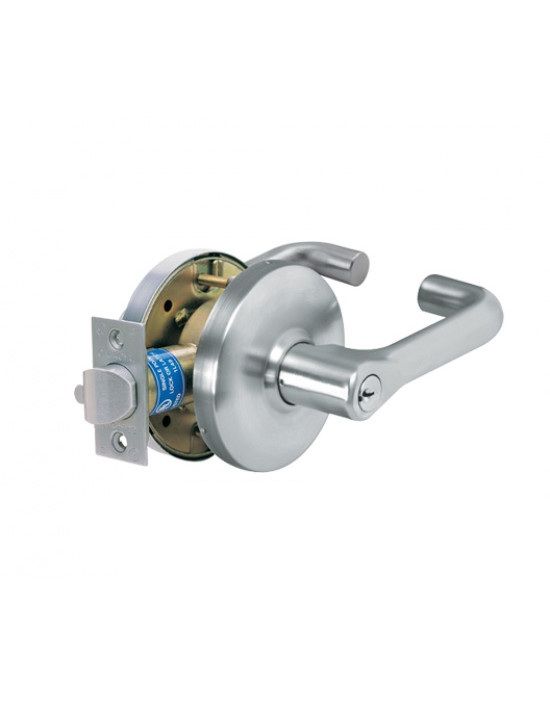

Full length 4 ¾” lever handle with ⅜” return on GN and SPA Design. Rose diameter 3 ½”. Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.

Clutch

Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

Applications

For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.

Door Ranges

1 ⅜” to 1 ¾” thickness. 2” to 2 ¼” thickness also available on request.

Ansi Standards

Meets or exceeds ANSI / BHMA A156.2 Series 4000, Grade 1 requirements.

Cylinder & Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, OCorbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Latch Faceplate

Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.

Strikes

ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.

Trim

Thru-bolted assembly through door with separate spring cage for each lever.

Housing

Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛” diameter bore.

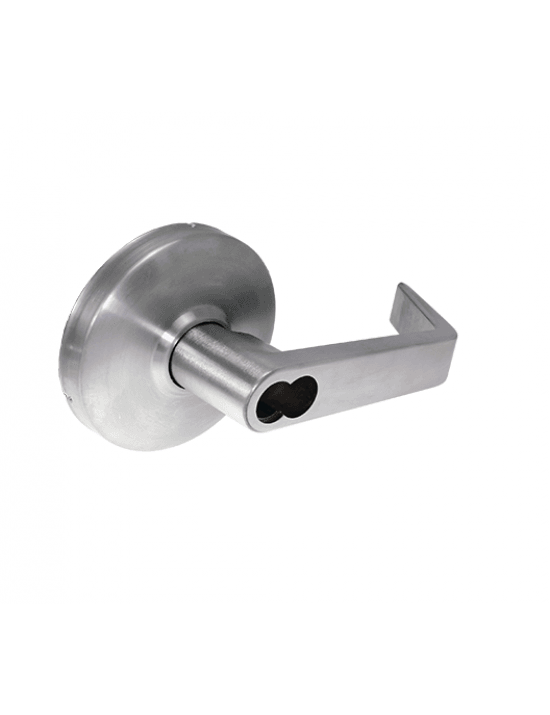

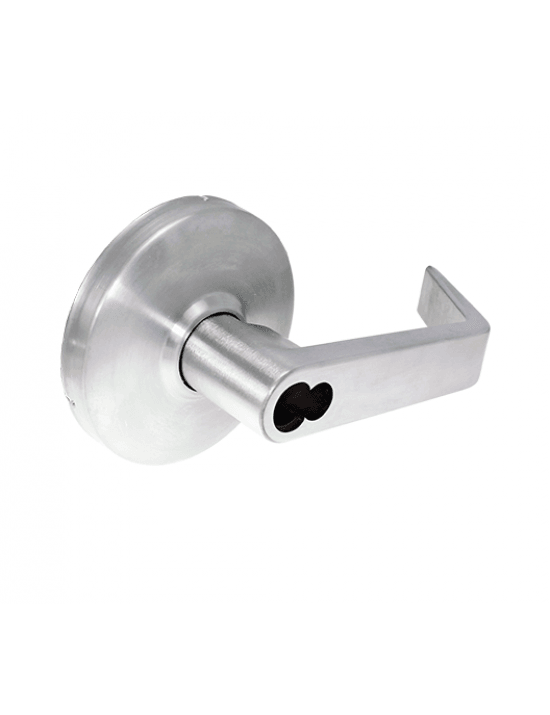

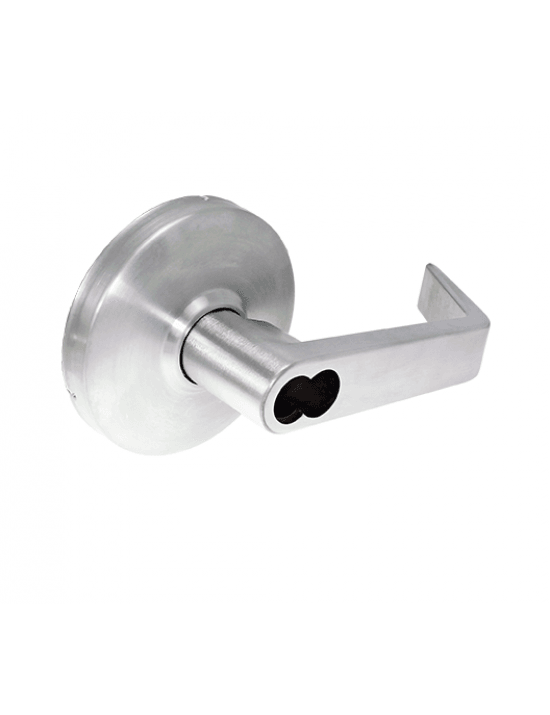

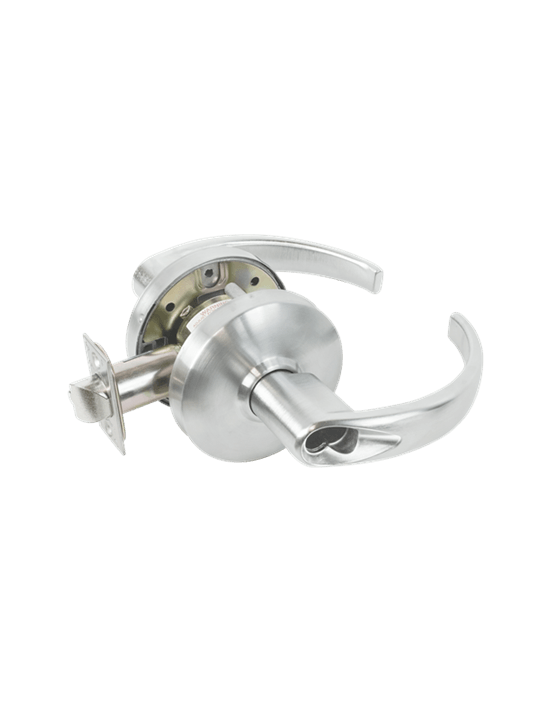

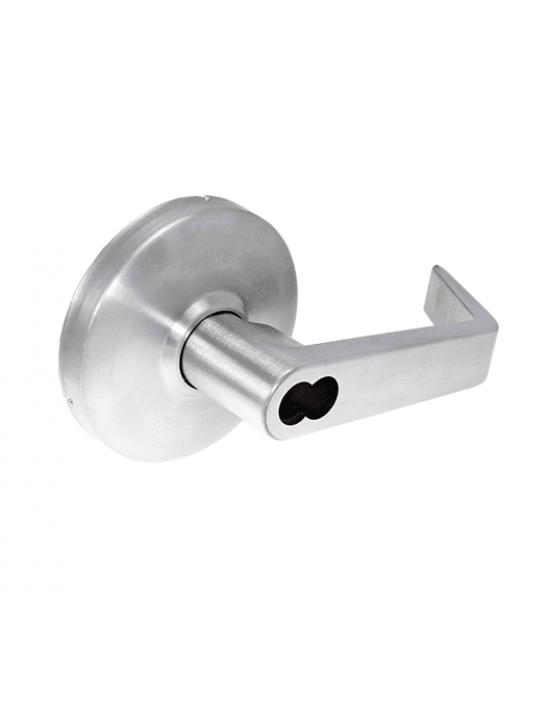

Small Format Interchangeable Core (Ic)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number.

Large Format Interchangeable Core (Ic)

Also available with SCHLAGE, CORBIN / RUSSWIN, SARGENT and YALE large format cylinders. For Schlage, Corbin / Russwin, Sargent and Yale format specifications, refer to page 30.

Latch Options

2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” and 5” backset optional. GND750 deadlatch reversible for flat and beveled door. ¾” throw anti-friction deadlatch for pair of fire doors.
