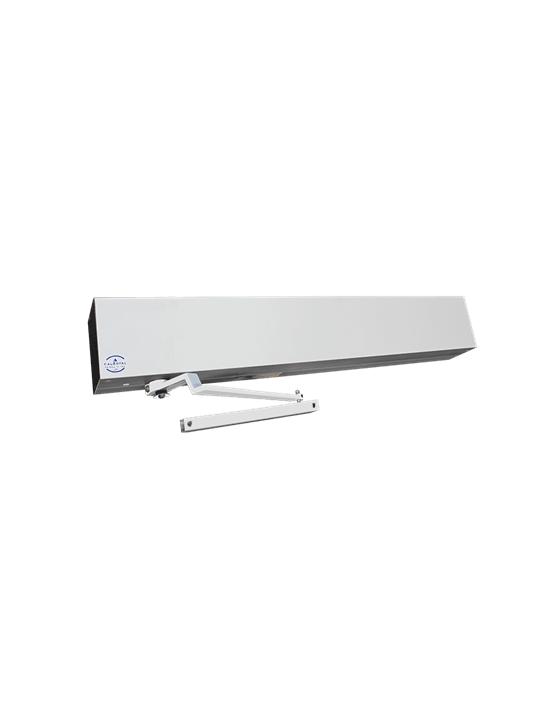

Manufacturer product view. Confirm the selected finish on your quote.
Cal-Royal · Electronic & Electrified
8600 Series
Model 8600
Project pricing by quote
Features & options
- Automatic Swing Door Operator. A swing door operator is beneficial for any commercial, retail or industrial environment
- Optional Exterior / Interior Operations
- Interior Operator with Clutch System but without wind dampening and Power Close with 5 force settings feature.
- ADA Compliant and conforms to ANSI A156.19/ UL235 standard for door operators
- 700 lbs door capacity and 48" wide
- Easy non-handed conversion, specify hand when ordering
- Programmable controller with easy setup and programming
- Push and Go feature opens a door when pushed manually
- Obstacle detection feature for open and closing ensure the safest use possible
- On-Board Power Supply, 12/24 VDC 1.2A for strike and latches
- Adjustable closing and Opening speeds
- Adjustable closing force
- Adjustable latching speed and position
- Electrified lock input and delay
Product documents
View Catalog8600 catalog v2Accessories8600 accessories v2Controller Programming ManualDCG1057-CONTROL PROGRAMMING MANUAL8600 Installation Instructions8600 Installation Manual Version 08-02-238600 Wiring Diagram with Card Reader, Push Button and Door StrikeDCG1060 OPERATOR WITH CARD READER PUSH BUTTON DOOR STRIKE8600 Wiring Diagram with 2 Card Reader, Push Button and Door StrikeDCG1061 OPERATOR WITH 2 CARD READER PUSH BUTTON DOOR STRIKE8600 Wiring Diagram with Door StrikeDCG1062 OPERATOR WITH DOOR STRIKEMTR1 (Receiver) wiring diagram to 8600 Control BoardMTR1 wire diagram 2 8600CBPart Numbers8600 partnumbers v2
