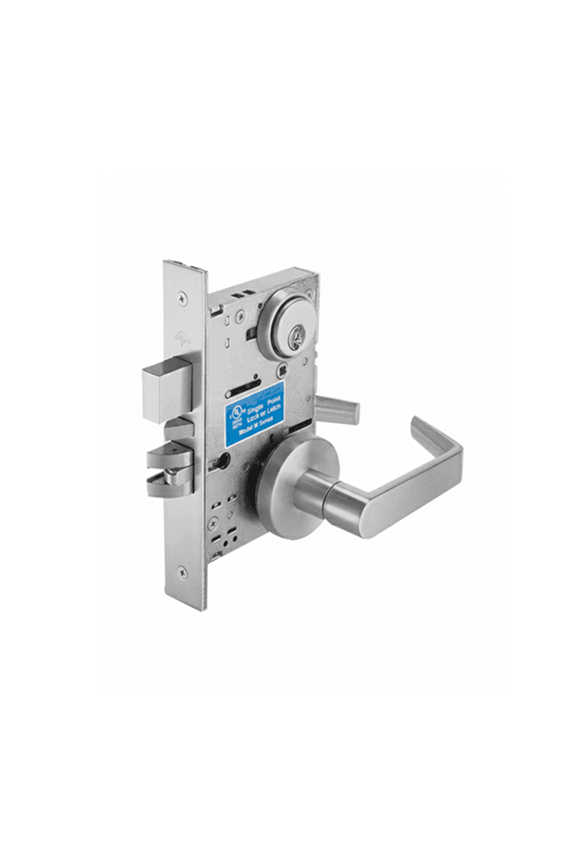

Manufacturer product view. Confirm the selected finish on your quote.
Cal-Royal · Locksets
SC Series

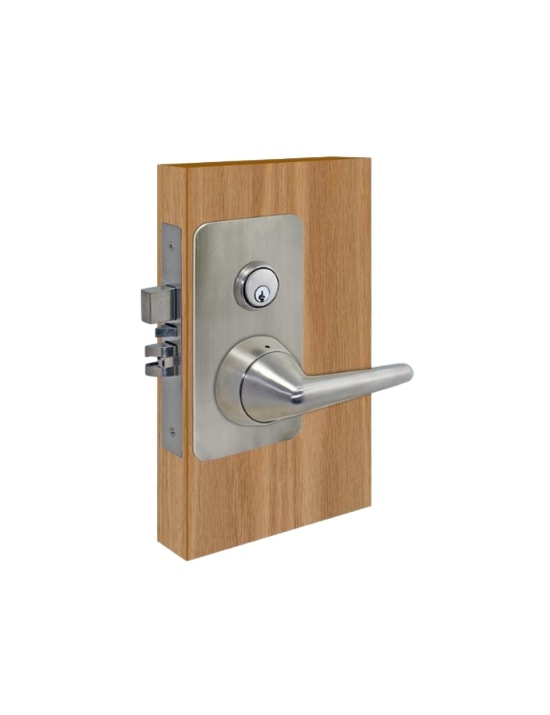

Model SC Mortise
Project pricing by quote
Finish — Polished Brass
Features & options

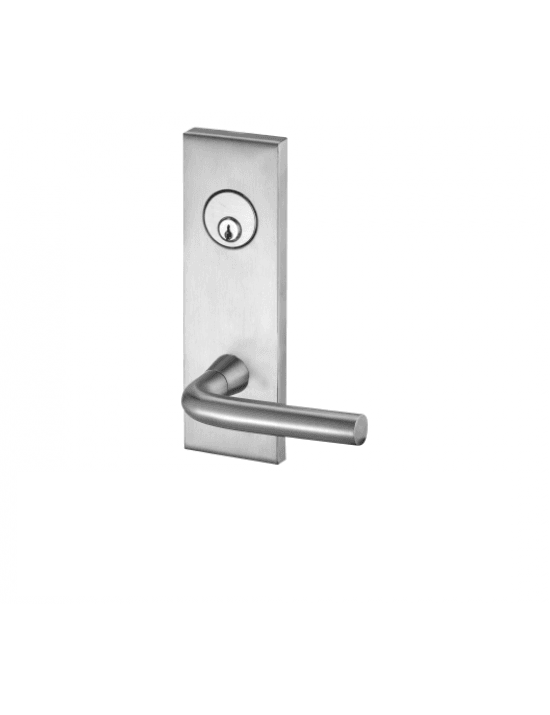

- Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
- Fully reversible design
- No exposed mounting screws on outside and inside trims
- Outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged

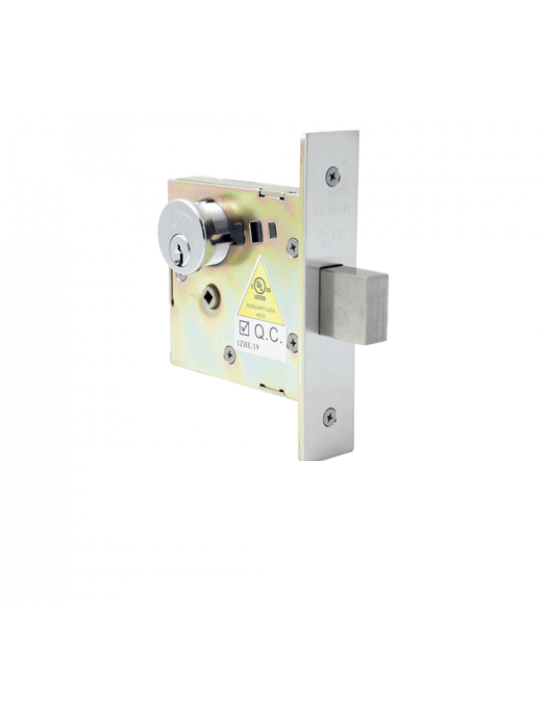

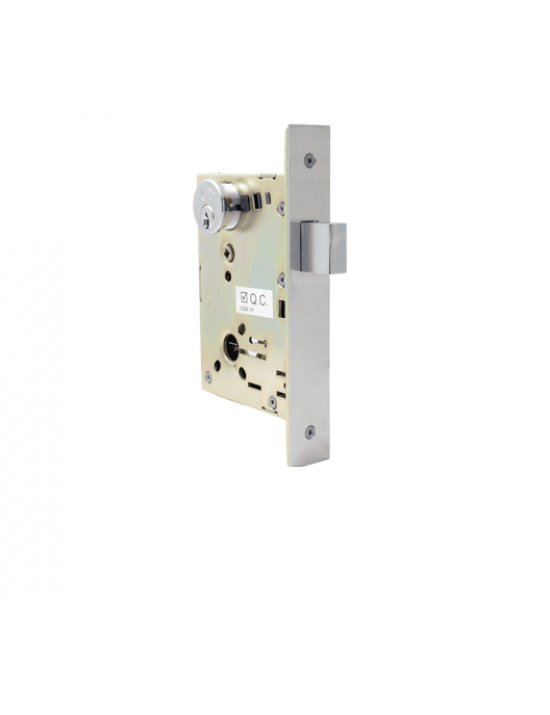

- Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles
Specifications
- Cylinder & Keyways
- 6-pin solid brass “C” keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
- Interchangeable Core (Ic)

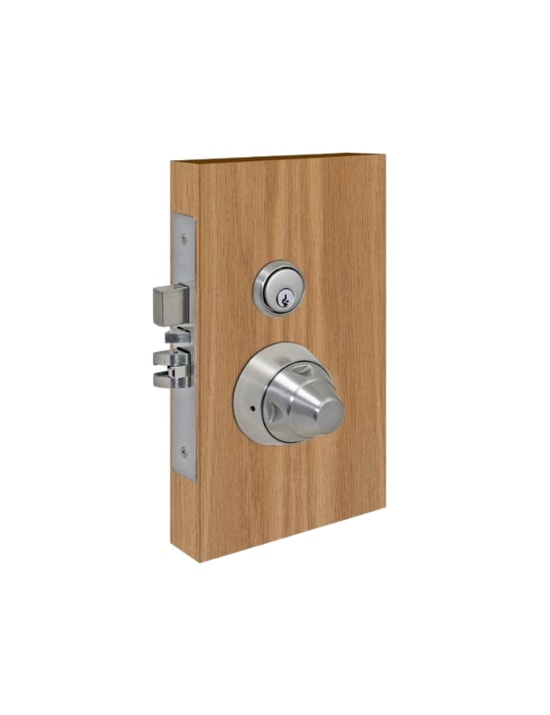

- Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW (SFIC). Also available with SCHLAGE, CORBIN / RUSSWIN D-1 thru 4, SARGENT LA , and YALE GA Large Format Cylinders.
- Certifications
- ANSI / BHMA Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards UL / cUL UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate POSITIVE PRESSURE Meets positive pressure requirements UL 10C and UBC 7-2 (1997) ADA Meets ADA requirements, specifically designed for Barrier Free Application Conforms to ANSI A117.1
- Finishes
- Symbol BHMA Description US3 605 Polished Brass US4 606 Satin Brass US10B 613 Oil Rubbed Bronze US19 622 Flat Black Coated US26 625 Polished Chrome US26D 626 Satin Chrome US10 612 Satin Bronze US32D 630 Stainless Steel
Product documents
Features & SpecificationsSC SpecsAccessoriesSC Series AccessoriesTemplate – SC Series, Heavy Duty Mortise LockSC Series Template 101424Template – SC Series with Hospital Latch (HL) TrimSC Series Hospital Latch HL Trim - TemplateInstallation Instructions – SC Series with Escutcheon TrimInstallation Instructions-SC Series Escutcheon TrimInstallation Instructions – SC Series with Sectional TrimInstallation-Instructions-SC-Series-with-Sectional-TrimInstallation Instructions – SC Series with Hospital Latch (HL) TrimSC Series Hospital Latch HL Trim - Installation InstructionsInstallation Instructions - SC8080LOTInstallation-Instructions-SC8080LOTCross ReferencesSC-Heavy-Duty-Mortise-Lock-COMPARISON-CHARTPart NumbersSC Part NumberHanding Chartdoorframehandingchart
