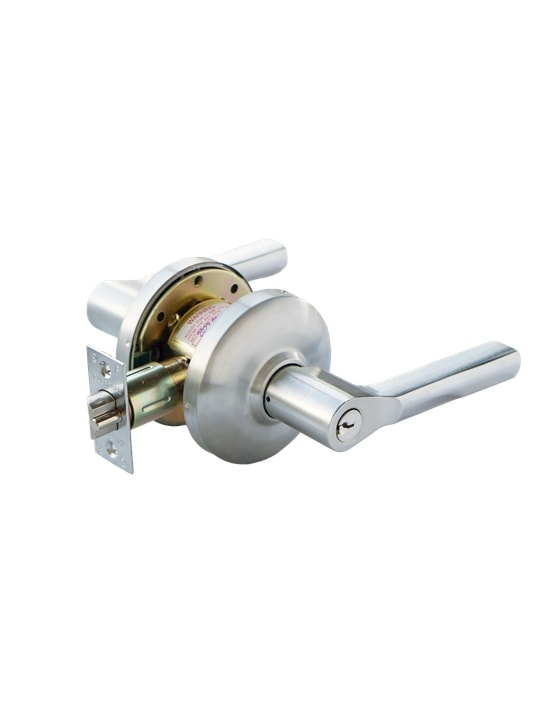

C2-LON Design

Specifications

General

Full length 4 ¾” lever handle with ⅜” return. Rose diameter 3 ⅜”. Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.

Clutch

Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

Applications

For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.

Door Ranges

1 ⅜” to 1 ¾” thickness. 2” to 2 ¼” thickness also available upon request.

Latch Faceplate

Standard 2 ¼” x 1 ⅛” for 2 ¾” backset.

Trim

Optional thru-bolted assembly through door with separate spring cage for each lever.

Strikes

ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.

Cylinder & Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Housing

Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛” diameter bore.

Interchangeable Core (Ic)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.

Latch Options

2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” and 5” backset optional. GND750 deadlatch reversible for flat and beveled door. ¾” throw anti-friction deadlatch for pair of fire doors.

Ansi Standards

Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C) 4 ¾” 2” Optional Removable Thru-Bolt Push in and turn button function
