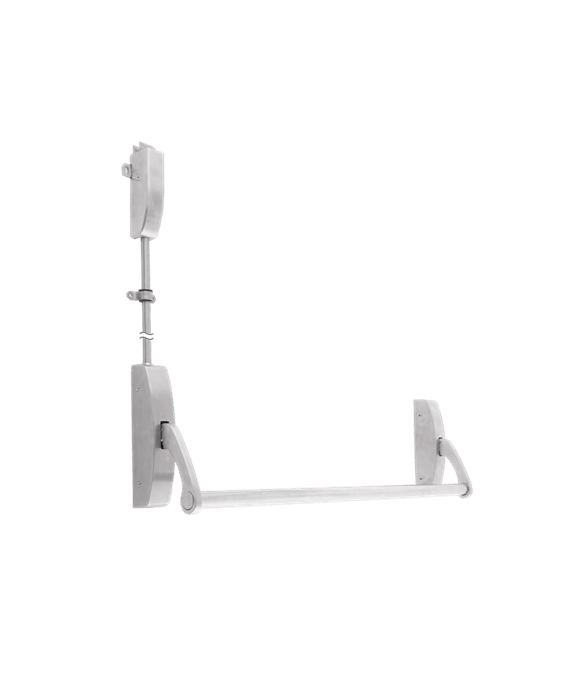

45-SVR & F45-SVR Cross Bar Narrow Style Surface Vertical Rod

Specifications

Dimensions

Touchbar height to finished floor 41” (1041 mm) at center Touchbar projection Neutral Depressed 5 13/64” (132 mm) 4 7/32” (107mm) Main case 8 55/64” x 1 17/32” x 2 13/64” (225 mm x 39 mm x 56 mm) End case 8 55/64” x 1 17/32” x 2 13/64” (225 mm x 39 mm x 56 mm) Panic grade top & bottom latch case 4 11/16” x 1 1/16” x 1 47/64” (119 mm x 27 mm x 44 mm) Fire grade top & bottom latch case 4 11/16” x 1 1/16” x 1 47/64” (119 mm x 27 mm x 44 mm) Top and bottom rod length for 36” x 84” doors Top rod 34 27/32” (885 mm), bottom rod 33 35/64” (852 mm) Top and bottom rod length for 48” x 96” doors Top rod 34 27/32” + 12” ETR (910.4 mm), bottom rod 33 35/64” (852 mm) Vertical Rods 15/32” (11.9 mm) round tubing
