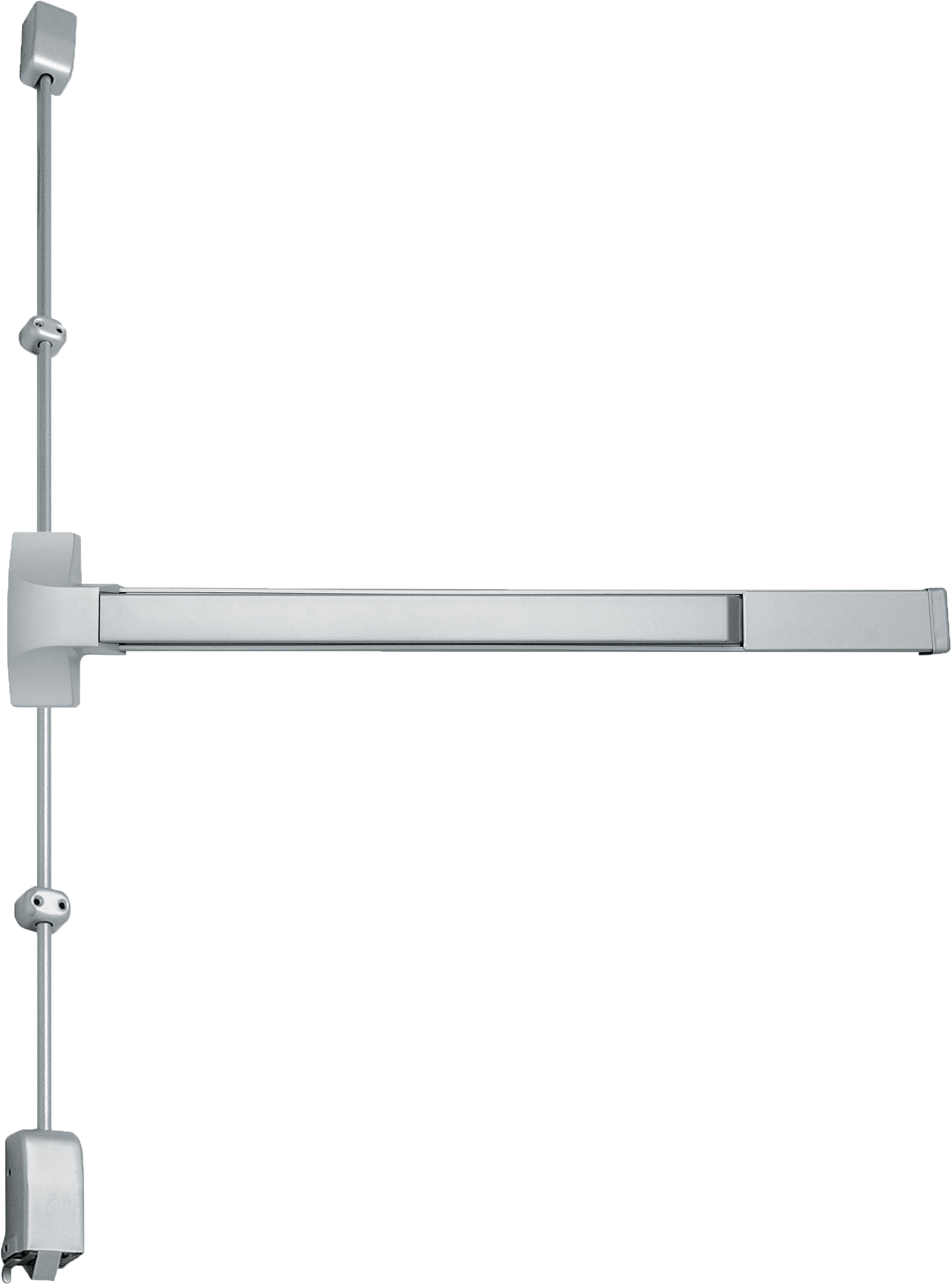

T5000V & TF5000V Surface Vertical Rod Exit Device

Specifications

Dimensions

Touchbar height to finished floor 41” (1041 mm) at center Touchbar projection Neutral 2 ½” (64 mm) Depressed 1 ¾” (45 mm) Panic grade top & bottom latch case 8 ⅟16” x 2 ¾” x 2 ½”(205 mm x 70 mm x 63 mm) Fire grade top latch case 3 15/16” x 2 11/16” x 2 1/16” (100 mm x 68 mm x 52 mm) Fire grade bottom latch case 3 15/16” x 2 ⅛” x 1 ⅜” (100 mm x 54 mm x 35 mm) Top and bottom rod length for 36” x 84” doors Top rod 38” (965 mm), Bottom rod 37 ½” (953 mm) Vertical rods ½” (13 mm) Round tubing MODEL ACTUAL LENGTH MAX CUT DOWN DOOR SIZE
