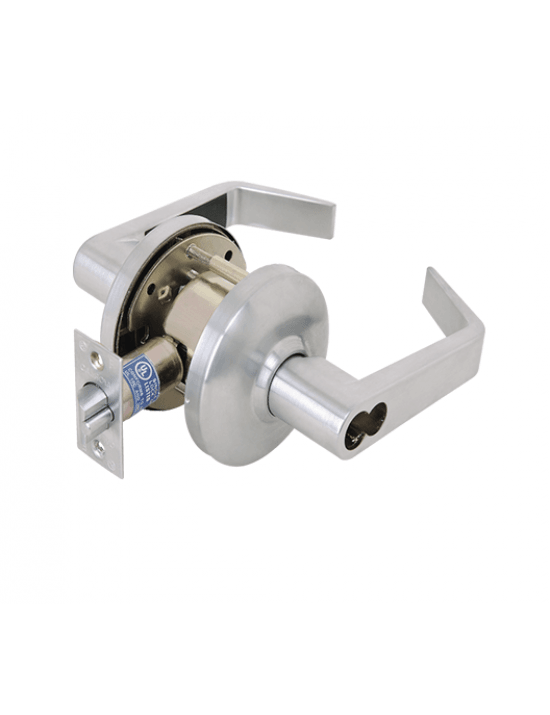

Commander Series

Specifications

Applications

For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.

Door Ranges

1 ⅜” to 1 ¾” thickness doors.

Backset

2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.

Latch Faceplate

2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.

Strikes

ASA strike standard, “T” and full lip strike available on request.

Ansi Standards

Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles. TACTILE & LEAD LINING available upon request.

Large Format Interchangeable Core (Ic)

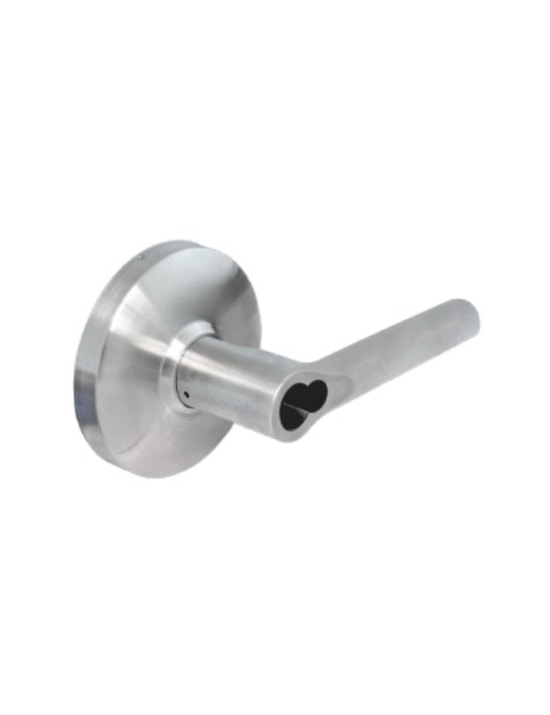

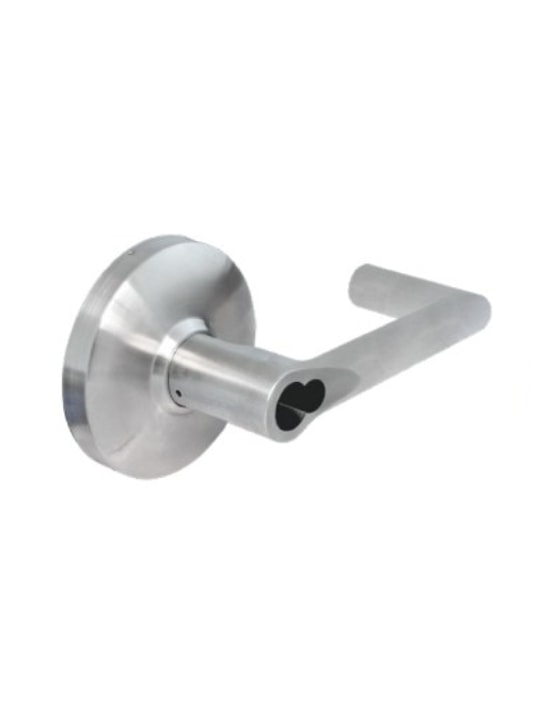

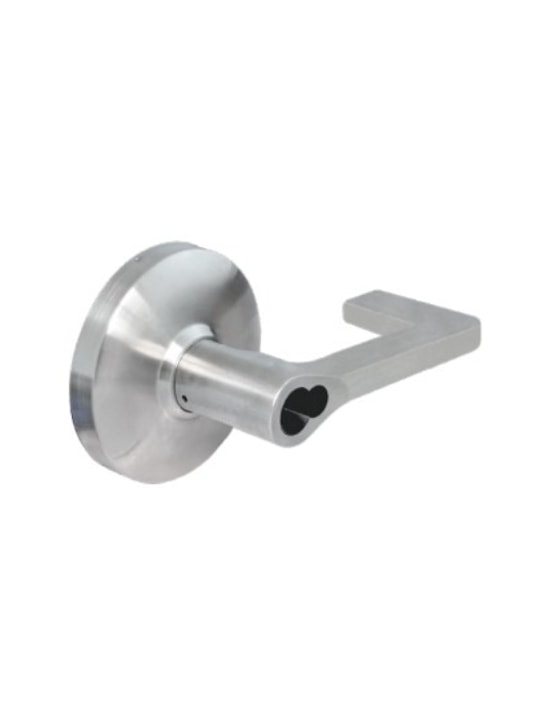

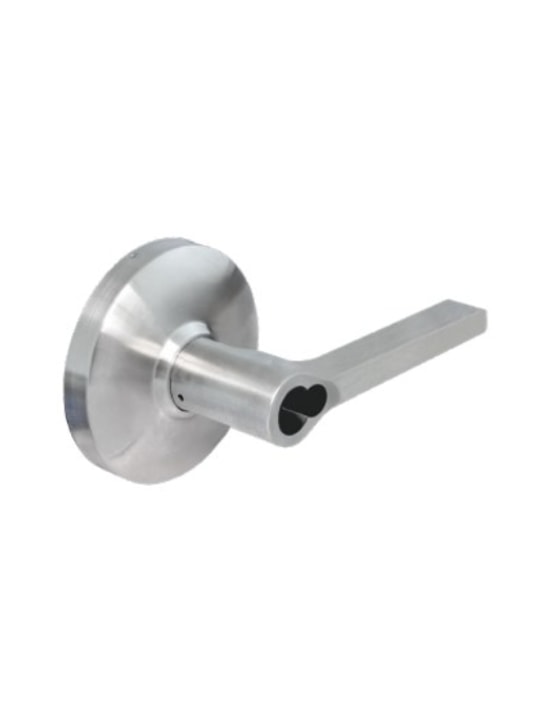

Interchangeable Core locks will accept compatible: • 6 pin cores SCHLAGE large format cylinders in all seven lever designs: COM, 2-AT, 2-SPA, 2-AUG, 2-DAN, 2-LON, and 2-TAC • 6 or 7 pin cores CORBIN / RUSSWIN, and 6 pin cores with SARGENT, in 2-AT, 2-SPA, 2-AUG, 2-DAN, 2-LON, and 2-TAC designs only. • 6 pin cores YALE large format cylinders in 2-AT, and 2-SPA lever designs only. • and compatible Schlage 6-pin Interchangeable Core. Interchangeable Core offered by Cal-Royal. See reverse page. 2-TAC DESIGN 2-LON DESIGN 2-DAN DESIGN 2-AUG DESIGN Meets ADA requirements Specially designed for Barrier Free Application Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements, Exceeds 400,000 Cycles

Clutch

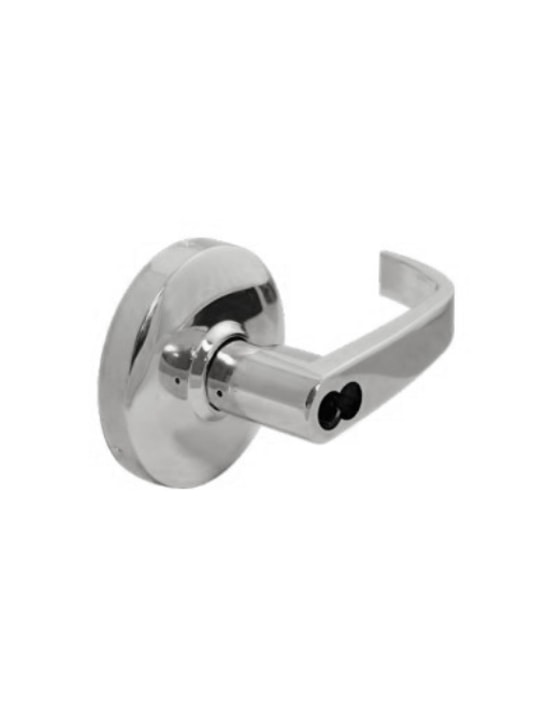

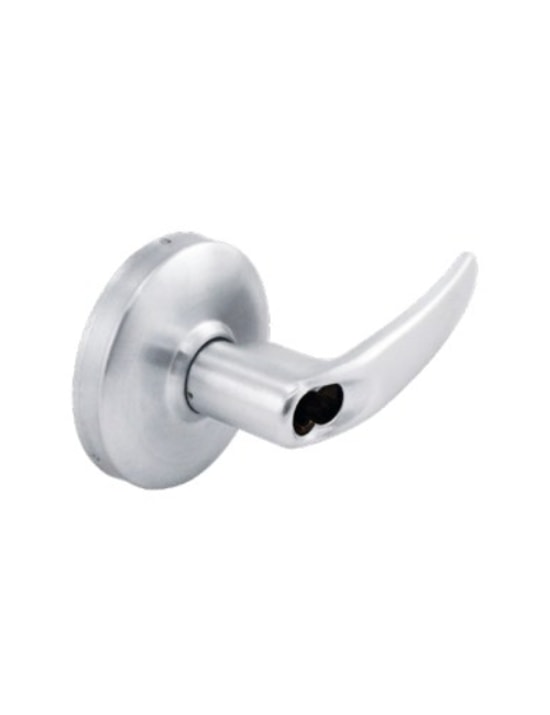

Free turning handle in the locked position, without retracting the latch to help prevent breaking of handle 2-SPA DESIGN 2-AT DESIGN **YALE LFIC ONLY AVAILABLE IN 2-AT & 2-SPA LEVER DESIGNS **SARGENT & CORBIN / RUSSWIN LFIC ONLY AVAILABLE IN 2-AT , 2-SPA, 2-AUG, 2-DAN, 2-LON, & 2-TAC LEVER DESIGNS Optional Tactile Lining
