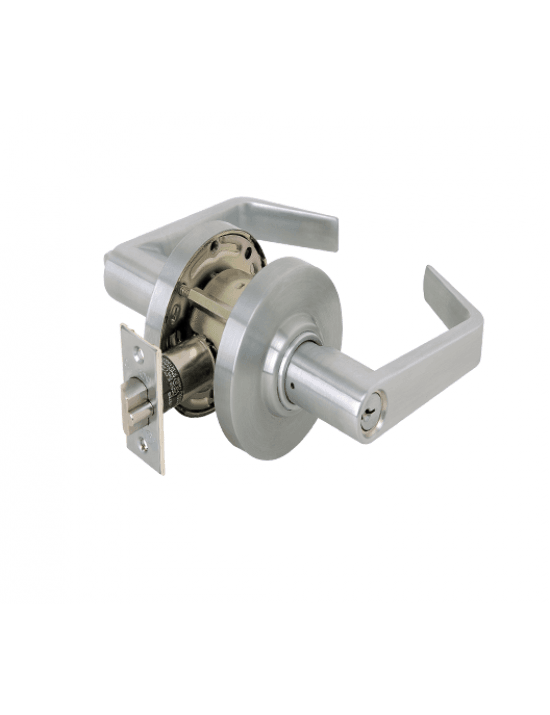

Explorer Series

Specifications

Applications

For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.

Door Ranges

1 ⅜” to 2” thickness doors; 1 ¾” Standard for XP-T360 (Optional Adapter Ring for 1 ⅜” thick doors for XP-T360)

Backset

2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.;

Latch Faceplate

2 ¼” x 1”, square corner packed with ⅛” filler for 1 ⅛” width.

Ansi Standards

Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.

Strikes

ASA strike standard, “T” and full lip strike available on request.

Cylinder & Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Interchangeable Core (Ic)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available. TACTILE & LEAD LINING available upon request. Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance Cylindrical Body
