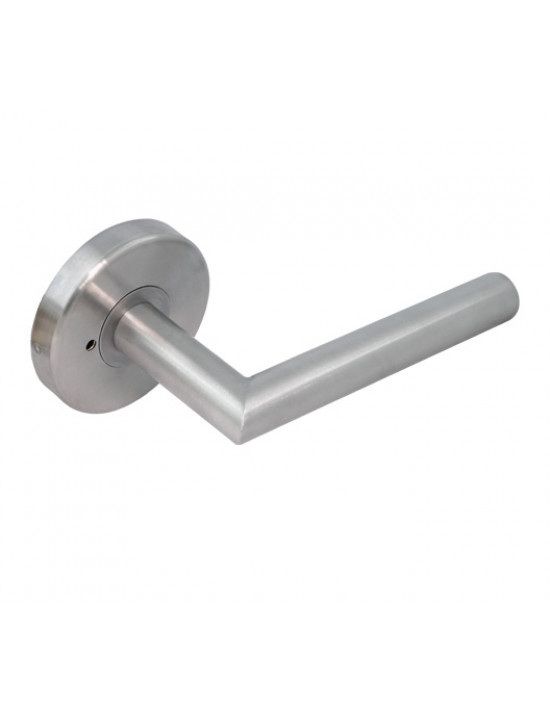

Grand Series

Specifications

Applications

For hotel / guest rooms, high-end apartments, condominiums, office buildings, and home offices.

Backset

2 ¾” or 2 ⅜” backset. Optional 90-Minute Fire Rated UL Listed Latch also available. Specify when ordering.

Latch Faceplate

2 ¼” x 1” faceplate with plastic filler for 2 ¾” backset. 2 ¼” x 1” faceplate for 2 ⅜” backset.

Strikes

T-Strike standard. Optional ANSI and Full Lip Strike available.

Door Ranges

1 ⅜” to 1 ¾” thickness doors. 2” thickness available upon request.

Handing

GERARD and VALENCIA lever designs are handed, field reversible. Must specify R (Right) or L (Left) when ordering.

Ansi Standards

Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles. WILSON “WIL”
