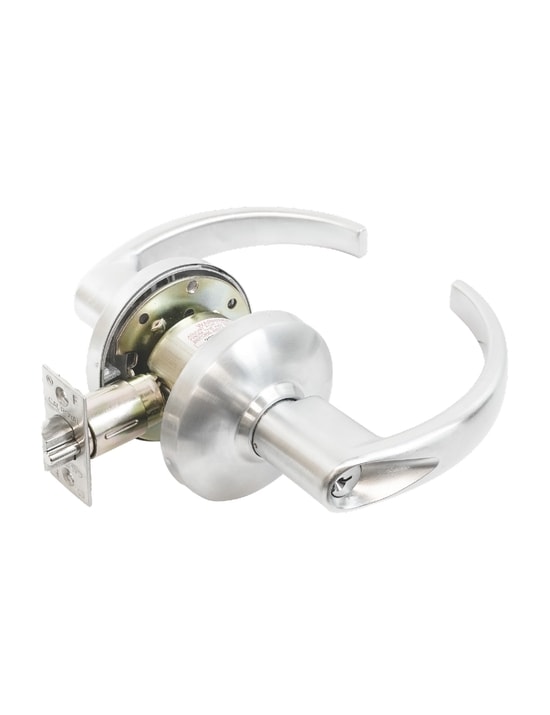

Pioneer Series

Specifications

Applications

For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.

Door Ranges

1 ⅜” to 1 ¾” thickness doors.

Backset

2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.

Latch Faceplate

2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.

Ansi Standards

Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.

Cylinder & Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Clutch

Clutch available on all keyed locks and privacy functions. Prefix “C” before part number.

Interchangeable Core

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated.Temporary construction cores available. Factory keying with control key and master key available.

Strikes

ASA strike standard, “T” and full lip strike available on request. TACTILE & LEAD LINING available upon request. Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance Cylindrical Body
