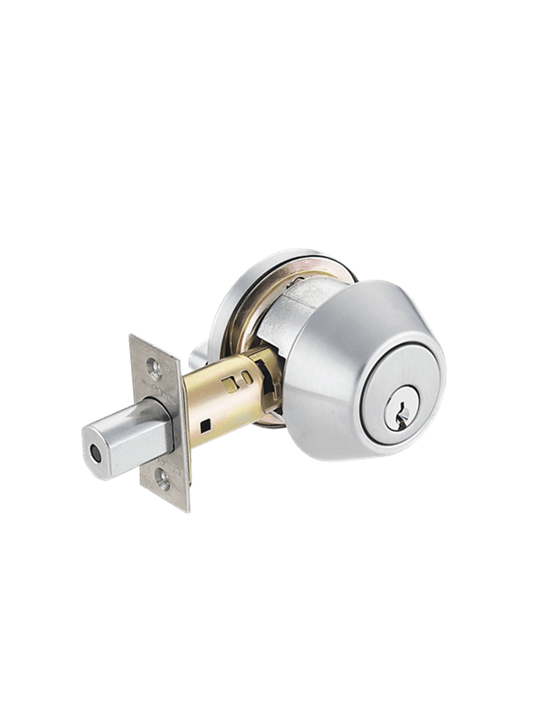

CRB600

Specifications

Trim

Wrought Brass or Stainless Steel.

Door Ranges

Adjustable 1 ⅜” (40mm) to 2” (51mm) door thickness.

Backset

UL Listed 3 Hour Fire Rating 2 ¾” latch bolt. 2 ⅜” optional.

Strike

1 ⅛” x 2 ¾” square corner. Extra security 1” throw bolt with ¼” free spinning anti-cut through pin. 2 pcs x 3” screws with wood frame reinforcer greatly strengthens door frames.

Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Interchangeable Core (Ic)

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Also available with SCHLAGE large format cylinders. 2 ½” 1 ”7 8 1 ” 1” 2 ½” 1 ” 1”
