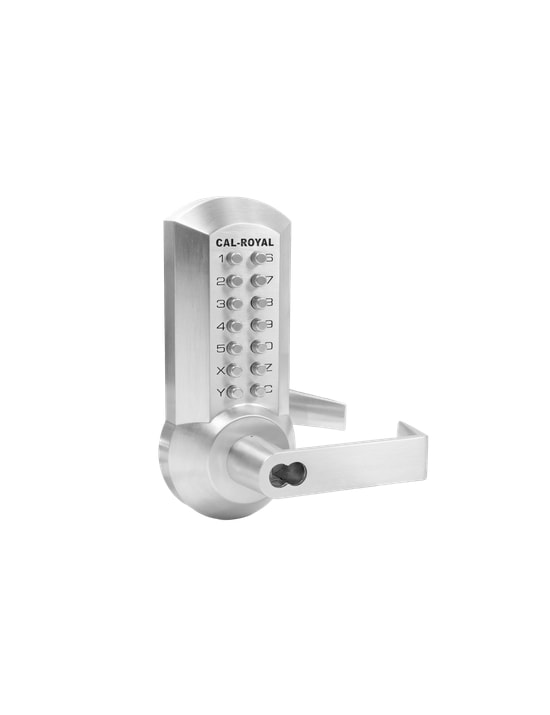

CRCODE204 Series

Specifications

Applications

Offices, Schools, Hospitals, Apartments, Hotels / Motels, Residential, Commerical and Public Buildings

Door Thickness

1 ¾” - 2”

General

Full length 5 ½” lever handle with ⅞” return. Escutcheon dimension 3 ½” x 8 ⅛”. Key removable outside lever for all models for fast re-keying. Non-handed levers. 2 ⅛” diameter bore.

Door Ranges

1 ⅜” - 2 ¼” for CRCODE202, 1 ⅜” - 1 ¾” for CRCODE203, 1 ¾” - 2” for CRCODE204

Ansi Standards

Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements.

Strikes

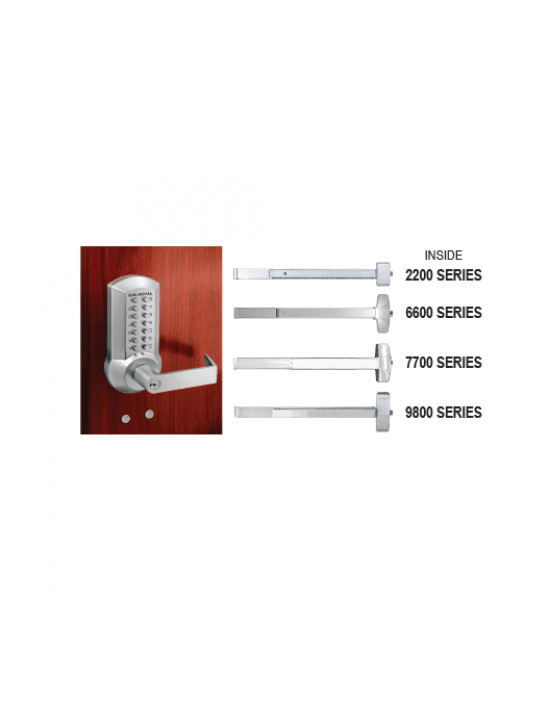

ASA 1 ¼” x 4 ⅞” standard for CRCODE202 and CRCODE203 only. Other strikes available upon request. Strikes for CRCODE204 comes standard with exit device ordered.

Latch Faceplate

Standard 2 ¼” x 1 ⅛” for 2 ¾” backset for CRCODE202 and CRCODE203 only.

Cylinder & Keyways

6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Trim

Thru-bolted assembly through door with separate spring cage for each lever.

Interchangeable Core

Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number.

Latch Options

2 ¾” standard, brass with ½” throw (with optional 2 ⅜” backset, 2 ¼” x 1” faceplate) for CRCODE202 and CRCODE203. Note: CRCODE202 and CRCODE203 for Non-Fire Application Only.
