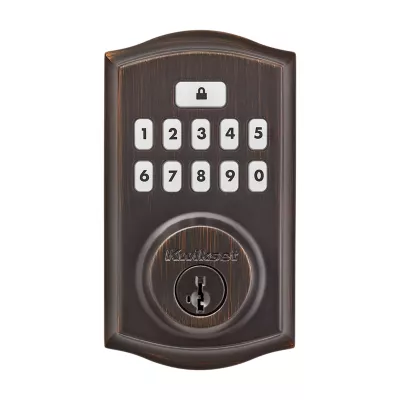

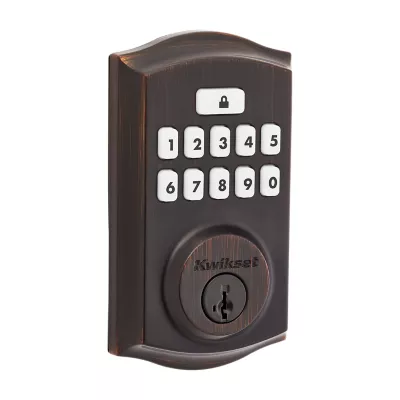

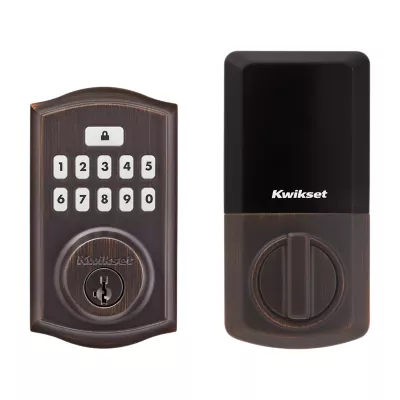

Kwikset 260 SmartCode Traditional Electronic Deadbolt — manufacturer family view

Manufacturer family image. Confirm the selected function, configuration and finish on your quote.

Kwikset · electronic-locks

260 SmartCode Traditional Electronic Deadbolt

Supplier item 260 TRL 11P

Project pricing by quote

Finish — Venetian Bronze

View manufacturer reference

Features & options

  • Convenient Keyless Entry: Keypad entry makes coming and going secure and simple. Easily lock and unlock your door without having to take out your keys.
  • Certified Advanced Security: Security, Durability and Finish are Grade 2 Bhma certified, which is up to 2.5x stronger than Grade 3 Bhma Certified lock sets.
  • Auto-Lock: Enjoy security and peace of mind knowing your door can lock itself. Customize it to automatically lock every 30 sec, 1 min, 3 min, 5 min or 10 min.
  • 12-Month Battery Life: Battery lasts at least 12 months, giving you more time in between battery replacements. Uses 4x Aa alkaline batteries (batteries not included).
  • Easy Code Management: Customize up to 50 user codes, 10 one-time user codes and 1 programming code that lets you edit or delete user codes whenever you need to.
  • Easy Install And Bilt App: Installs with just a screwdriver. Bilt 3D interactive instructions provide voice, text and animation guidance for an easy installation.
  • Intrusion Alert: After 3 consecutive incorrect code entries, the lock sounds an alarm and disables the keypad for 1 min to prevent anyone from tampering with it.
  • Vacation Mode: Activate Vacation Mode to temporarily disable the keypad, and feel safe knowing no one can operate your door lock when you’re out of town.
  • Featuring Smartkey® Security: Protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. Re-key the lock to any (KW1) key.
  • Microban® Protection: Kwikset®’s door hardware is treated with Microban®, this offers powerful product protection that is 99.9% cleaner than an unprotected surface.

Specifications

Kwikset Family
SmartCode Deadbolts Touchpad
Product Type
Deadbolt
Style
Traditional
SmartKey
Yes
Has Microban?
Yes
ANSI Grade
Grade 2
UL Time Rating
20 min
Min Door Thickness
1-3/8
Max Door Thickness
1-3/4
Assembled Height
5
Assembled Width
2-13/16
Assembled Length
1
Latch Backset Size
Adjustable
Cross Bore
2-1/8"
ADA Compliant

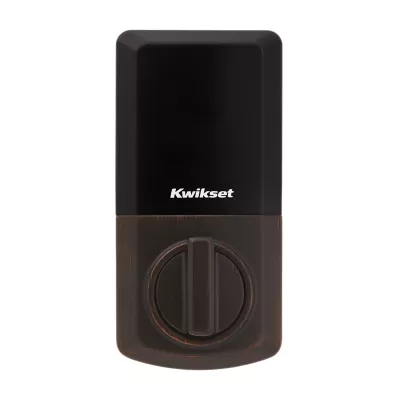

Interior Turn Piece Only
# Of Codes
50
Battery Type Required
4 AA, purchase separately
Key Quantity Per Pack
2

Product documents
