Manufacturer family image. Confirm the selected function, configuration and finish on your quote.
Kwikset · electronic-locks

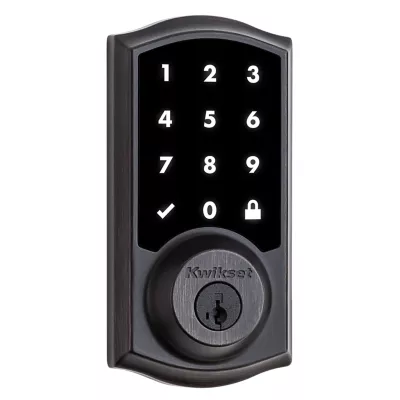

916 SmartCode Traditional Electronic Deadbolt with Zigbee Technology
Supplier item 916TRL ZB 11P
Project pricing by quote
Account quote required
Add these choices to your request. Abel will confirm the complete item, selling unit and price.
Finish — Venetian Bronze
Features & options
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Deadbolt Latch is 20 minute fire rated with round corner face
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 in. deadbolt throw
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Requires 4 AA batteries, included
- Keypad stays lit for 5 seconds after inactivity
- Featuring Home Connect™ technology, your electronic lock can now interface with security and home automation systems using a ZigBee radio that connects to an in-home hub, such as a wireless router
Specifications
- Kwikset Family
- SmartCode Deadbolts Touchscreen with Home Connect
- Product Type
- Deadbolt
- Style
- Traditional
- SmartKey
- Yes
- Has Microban?
- Yes
- ANSI Grade
- Grade 2
- UL Time Rating
- 20 min
- Min Door Thickness
- 1-3/8
- Max Door Thickness
- 2
- Assembled Height
- 5-5/8
- Assembled Width
- 2-13/16
- Assembled Length
- 1-3/16
- Latch Backset Size
- Adjustable
- Cross Bore
- 2-1/8"
- ADA Compliant
- Interior Turn Piece Only
- Voice Control Enabled
- Alexa via Samsung SmartThings ; Google Assistant via Samsung SmartThings
- Lock Technology
- Zigbee
- Hub Required
- Requires Smart Hub
- Electronic Works With
- SmartThings ; Alexa
- # Of Codes
- 30
- Battery Type Required
- 4 AA, included
Product documents
Drilling Template 203.4 KBkw dt 5061884 electronicInstallation Guide - English 14.8 MBkw ig 5068561 916 514 Installation Guide - Spanish 15.2 MBkw ig 5068562 916 514 Instruction Sheet 5.4 MBkw is 5061026 916[zw-zb]Instructions to re-key a SmartKey Security lock 1.4 MBkw smt 5029550Regulatory Compliance 39.2 KBkw sd 5061890 electronicTroubleshooting Guide 3.7 MBkw tg 5062818 916
