Manufacturer family image. Confirm the selected function, configuration and finish on your quote.
Kwikset · electronic-locks

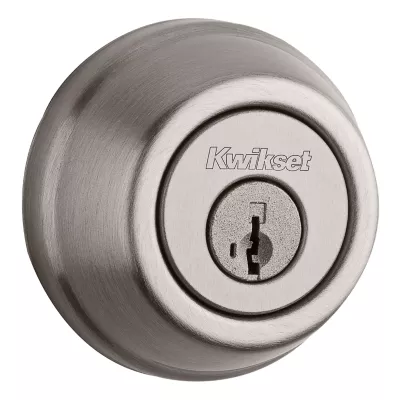

Signature Series Deadbolt (Round) with Home Connect with Z-Wave 500 Technology
Supplier item 914 S 2 TRL ZW500 15
Project pricing by quote
Account quote required
Add these choices to your request. Abel will confirm the complete item, selling unit and price.
Features & options
- Motor-driven deadbolt latch allows for true remote locking and unlocking
- Check status of the door o determine if it’s locked or unlocked
- Z-Wave Plus Certified with the Z-Wave 500 chipset
- Extended wireless range and superior 128-bit wireless encryption
- Tapered designed latch enables misaligned doors to lock without pushing or pulling a door shut
- BHMA grade 2 certified
- SmartKey® technology - the lock you can re-key yourself in seconds in three easy steps
- 30 user codes plus master code feature for added security
- 20 minute fire rating – UL certified
- Full 128-bit encryption security
- SmartKey® re-key technology is compatible with Kwikset (KW1) keyway
- Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks
- Installs in minutes with just a screw driver no hard wiring needed
- Fits standard doors (1-3/8in. – 2in.) no new screw holes required
Specifications
- Kwikset Family
- SmartCode Deadbolts Touchpad with Home Connect
- Product Type
- Deadbolt
- Style
- Traditional
- SmartKey
- No
- Has Microban?
- Yes
- ANSI Grade
- Grade 2
- Min Door Thickness
- 1-3/8
- Max Door Thickness
- 2
- Assembled Height
- 2-5/8
- Assembled Width
- 2-5/8
- Assembled Length
- 1-5/32
- Cross Bore
- 2-1/8"
- ADA Compliant
- Interior Turn Piece Only
- Voice Control Enabled
- Google Assistant via Wink hub ; Google Assistant via Samsung SmartThings ; Alexa via Wink Hub ; Alexa via Samsung SmartThings
- Lock Technology
- Z-Wave500
- Hub Required
- Hub required for remote access
- Electronic Works With
- SmartThings ; Wink ; Vera ; Alexa ; Ring
- # Of Codes
- 0
- Battery Type Required
- 4 AA, included
- Key Quantity Per Pack
- 2
Product documents
