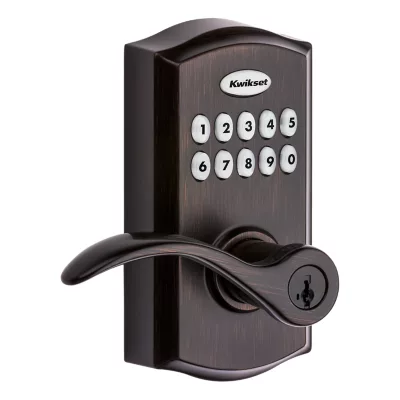

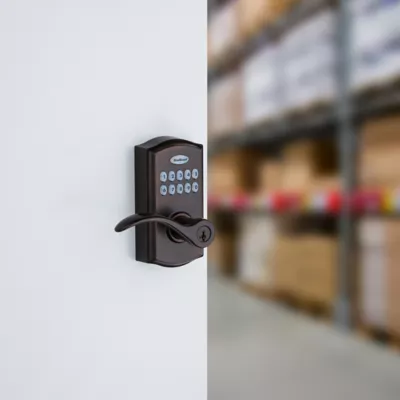

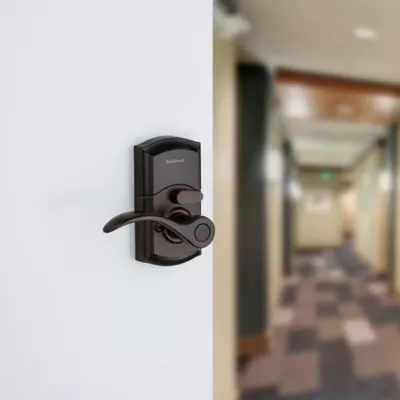

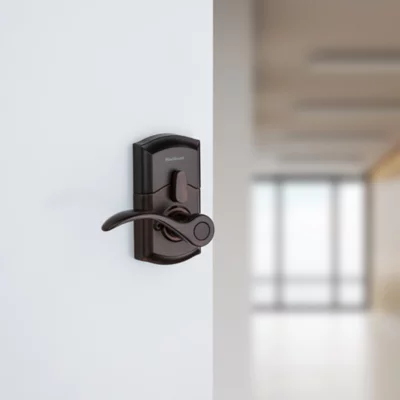

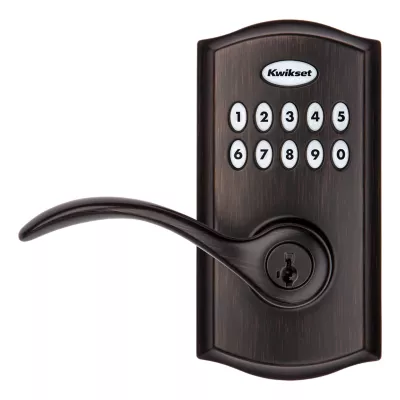

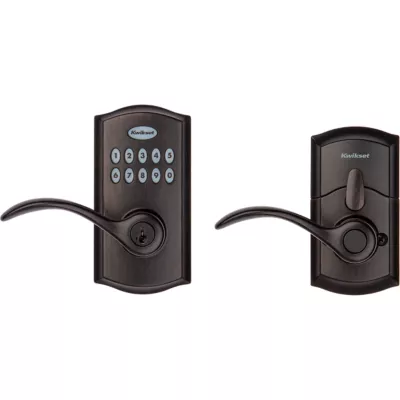

Kwikset SmartCode 955 Pembroke Light Commercial Electronic Lever — manufacturer family view

Manufacturer family image. Confirm the selected function, configuration and finish on your quote.

Kwikset · light-commercial

SmartCode 955 Pembroke Light Commercial Electronic Lever

Supplier item 955PML 11P

Project pricing by quote

Finish — Venetian Bronze

View manufacturer reference

Features & options

  • Convenient Keyless Entry: Keypad entry makes coming and going secure and simple. Easily lock and unlock your door without having to take out your keys
  • 3-Year Battery Life: Battery lasts at least 3 years, giving you more time in between battery replacements. Uses 1x 9V battery, battery included
  • High Traffic Durability: Lock tested to 500,000 cycles to ensure lasting, reliable performance in high-traffic entryways
  • Easy Code Management: Customize up to 30 user codes, 1 one-time user code and 1 programming code that lets you edit or delete user codes whenever you need to

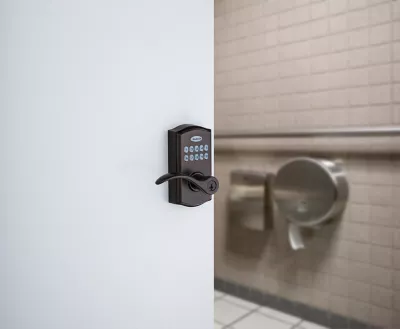

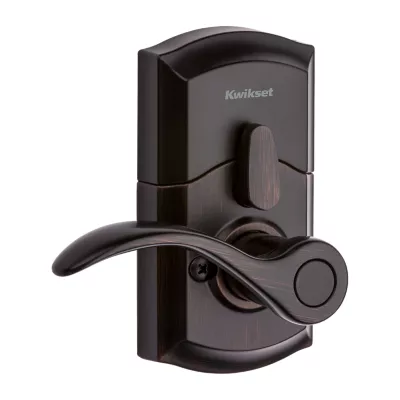

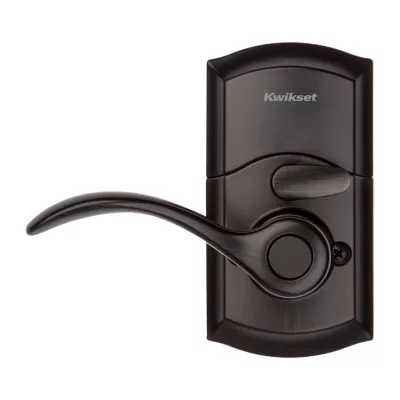

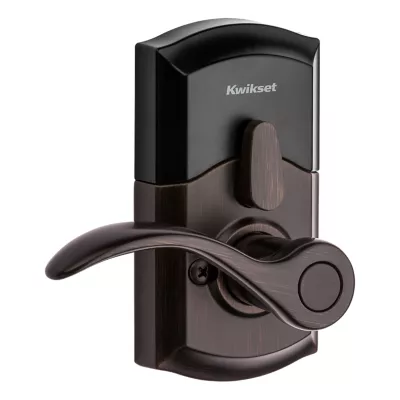

  • 3 Lock Modes: Easily switch between Auto-Lock and Passage modes with the turnpiece. Disable the turnpiece to stay in Auto-Lock mode — ideal for public restrooms
  • Certified Advanced Security: Security, Durability and Finish are Grade 2 Bhma Certified, which is up to 2.5x stronger than Grade 3 Bhma Certified lock sets
  • Intrusion Alert: After 3 consecutive incorrect code entries, the lock sounds an alarm and disables the keypad for 1 minute to prevent anyone from tampering with it
  • Easy Low Light Code Entry: Bright Led lights illuminate the keypad so you can easily enter your user code at night. Simply tap the keypad to turn on the lights
  • Featuring Smartkey® Security: Protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds. Re-key the lock to any (KW1) key

Specifications

Kwikset Family
SmartCode 955
Product Type
Lever
Style
Traditional
SmartKey
Yes
Has Microban?
Yes
ANSI Grade
Grade 2
UL Time Rating
Not rated
Min Door Thickness
1-3/8
Max Door Thickness
2
Assembled Height
5-31/32
Assembled Width
5-3/4
Assembled Length
3-5/16
Latch Backset Size
Adjustable
Cross Bore
2-1/8"
ADA Compliant
Yes
Hub Required
No Hub required
# Of Codes
30
Battery Type Required
9V, included
Key Quantity Per Pack
2
