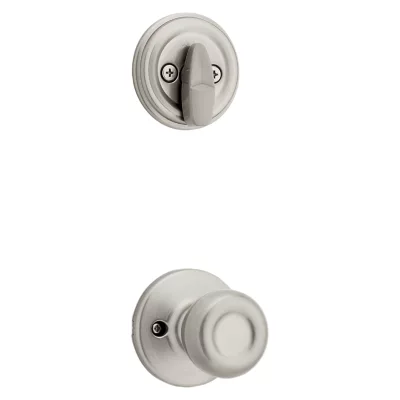

Manufacturer family image. Confirm the selected function, configuration and finish on your quote.
Kwikset · handlesets
Tylo and Deadbolt Interior Pack - Deadbolt Keyed One Side - for Signature Series 800 and 687 Handlesets
Supplier item 966T 15
Project pricing by quote
Account quote required
Add these choices to your request. Abel will confirm the complete item, selling unit and price.
Finish — Satin Nickel
Features & options
- Interior Lever for Handleset: Match your home décor. Interior door lever and deadbolt turn piece are for all 801Kwikset® handlesets. Interior hardware only
- Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
- Fits Standard Doors: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
- Adjustable Latch: By sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8" or 2-3/4" in order to fit all standard door preparations
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset® warranty for more details
Specifications
- Kwikset Family
- Tylo
- Product Type
- Knob
- Style
- Traditional
- SmartKey
- No
- Has Microban?
- Yes
- ANSI Grade
- Not Rated
- UL Time Rating
- Not rated
- Min Door Thickness
- 1-3/8
- Max Door Thickness
- 1-3/4
- Assembled Height
- 2-5/8
- Assembled Width
- 2-5/8
- Assembled Length
- 2-1/2
- Cross Bore
- 1"
- ADA Compliant
- No
- Body Material
- Metal
