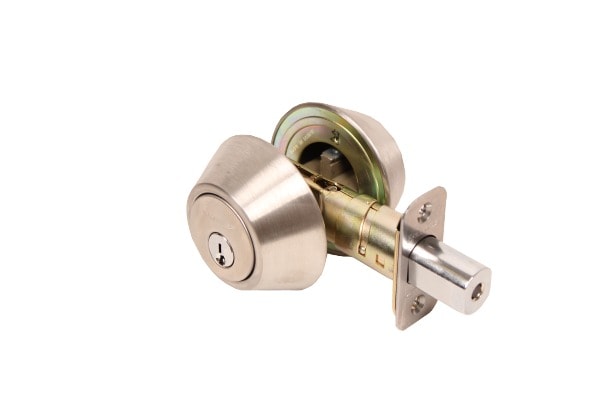

Shown in Satin Stainless Steel.
Pamex · Locksets
Double Cylinder Construction Lock
Supplier item CD262
Project pricing by quote
Finish — Satin Stainless Steel
Features & options
- ANSI/BHMA A156.5, Grade 3
- Door Prep: 2-1/8” Cross Bore; 1” Edge
- 5-pin KW keyway; solid brass cylinder, zinc die-cast housing & 5 and 6-pin SC “C” keyway available
- Latch Backset: 2-3/8” deadbolt standard(other options available)
- Strike Plate: 2-1/4” x 1-3/4” round corner full lip strike standard(other options available)
- Faceplate: 1” x 2-1/4” round corner standard(other options available)
- 2-1/4” x 1-3/4” round corner full lip strike standard(other options available)
Specifications
- Door Prep
- 2-1/8” Cross Bore; 1” Edge
- Latch Backset
- 2-3/8” deadbolt standard(other options available)
- Strike Plate
- 2-1/4” x 1-3/4” round corner full lip strike standard(other options available)
- Faceplate
- 1” x 2-1/4” round corner standard(other options available)
