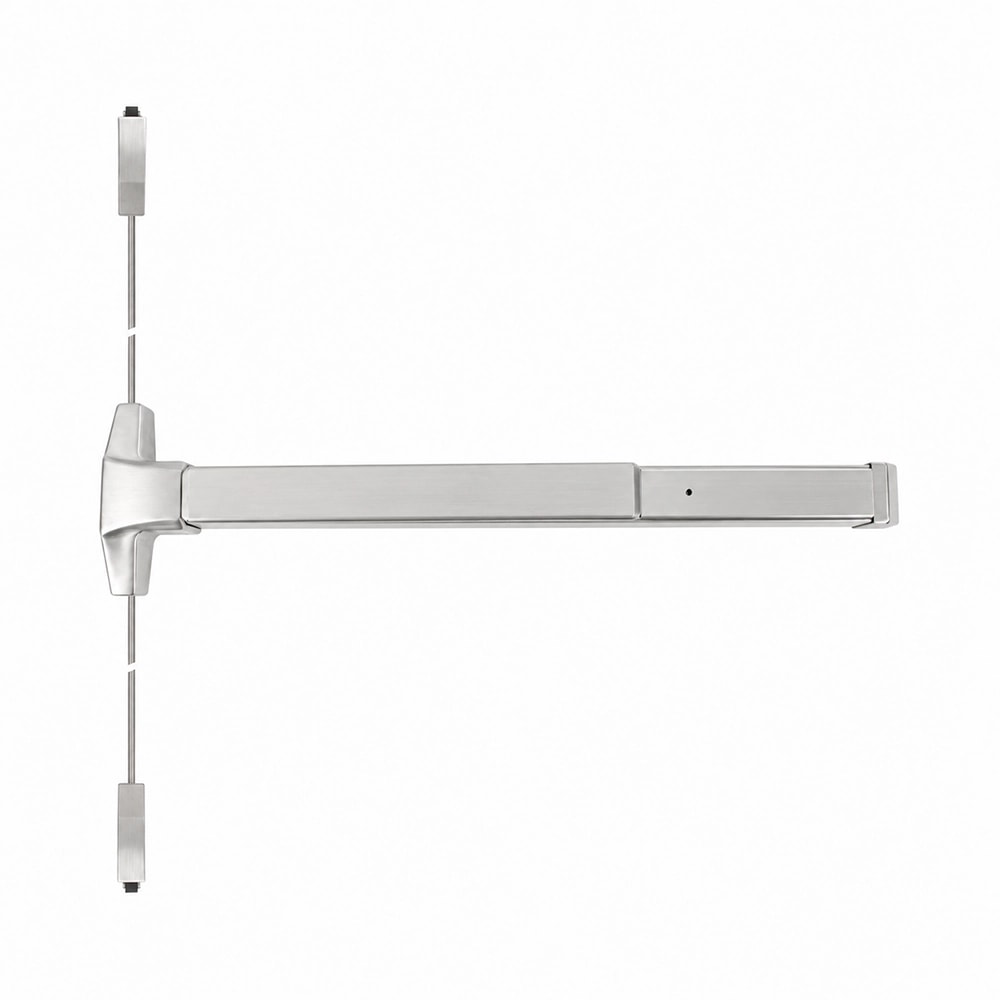

Shown in Satin Stainless Steel.
Pamex · Electronic Hardware
E9100 Series Latch Retraction Vertical Rod
Supplier item E910EV/EO3X7-SS
Project pricing by quote
Finish — Satin Stainless Steel
Features & options
- Momentary or maintained latch bolt and push pad retraction, with simultaneous dogging. Automatic re-triggering of latch retraction
- 24VDC @ 1.5 Amp inrush, 200mA continuous (Pamex EPS-1 power controller will accommendate 1.5amp inrush)
- ANSI/BHMA A156.3, Grade 1
- UL Listed, UL (10C) and UBC (7-2) codes
- UL 3-hour fire rated
- Available for 3’x7’ and 4’x8’ doors
- Compatible only with Pamex E9100 trims & accessories
- Optional add-on: REX - Request to Exit LBM - Latch Bolt Monitoring
Specifications
- Optional add-on
- REX - Request to Exit LBM - Latch Bolt Monitoring
