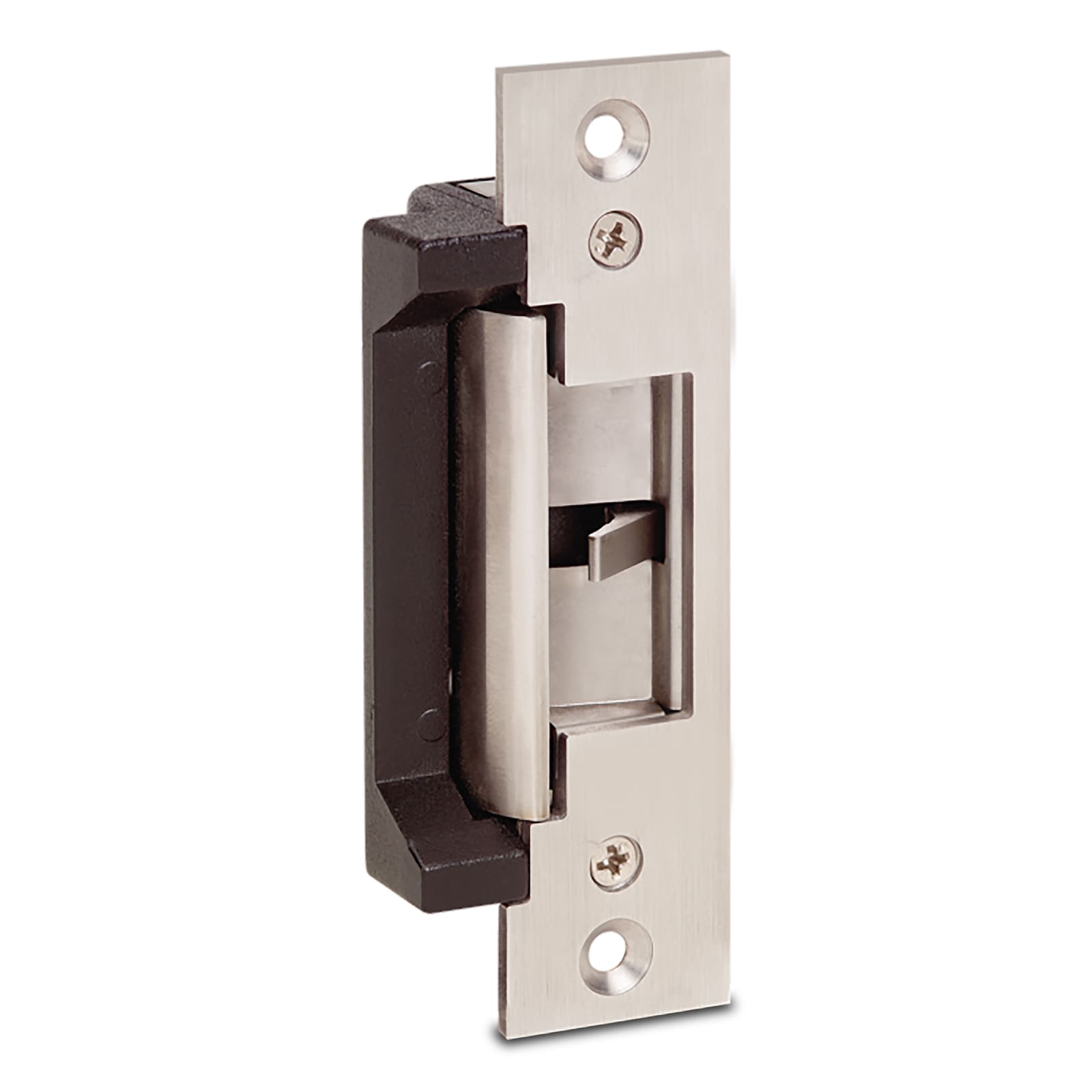

Shown in Satin Stainless Steel.
Pamex · Electronic Hardware
Electric Strike - 100 Series
Model ES-100
Project pricing by quote
Finish — Satin Stainless Steel
Features & options
- ANSI/BHMA A156.31
- Fail-Secure & reversible for Fail-Safe operation
- Dual Voltage: 300/100mA @ 12/24VDC
- For latch throw up to 5/8" with 1/8" door gap
- Dimension: 1-1/4"W x 4-7/8"H x 1-1/2"D
Specifications
- Dual Voltage
- 300/100mA @ 12/24VDC
- Dimension
- 1-1/4"W x 4-7/8"H x 1-1/2"D
