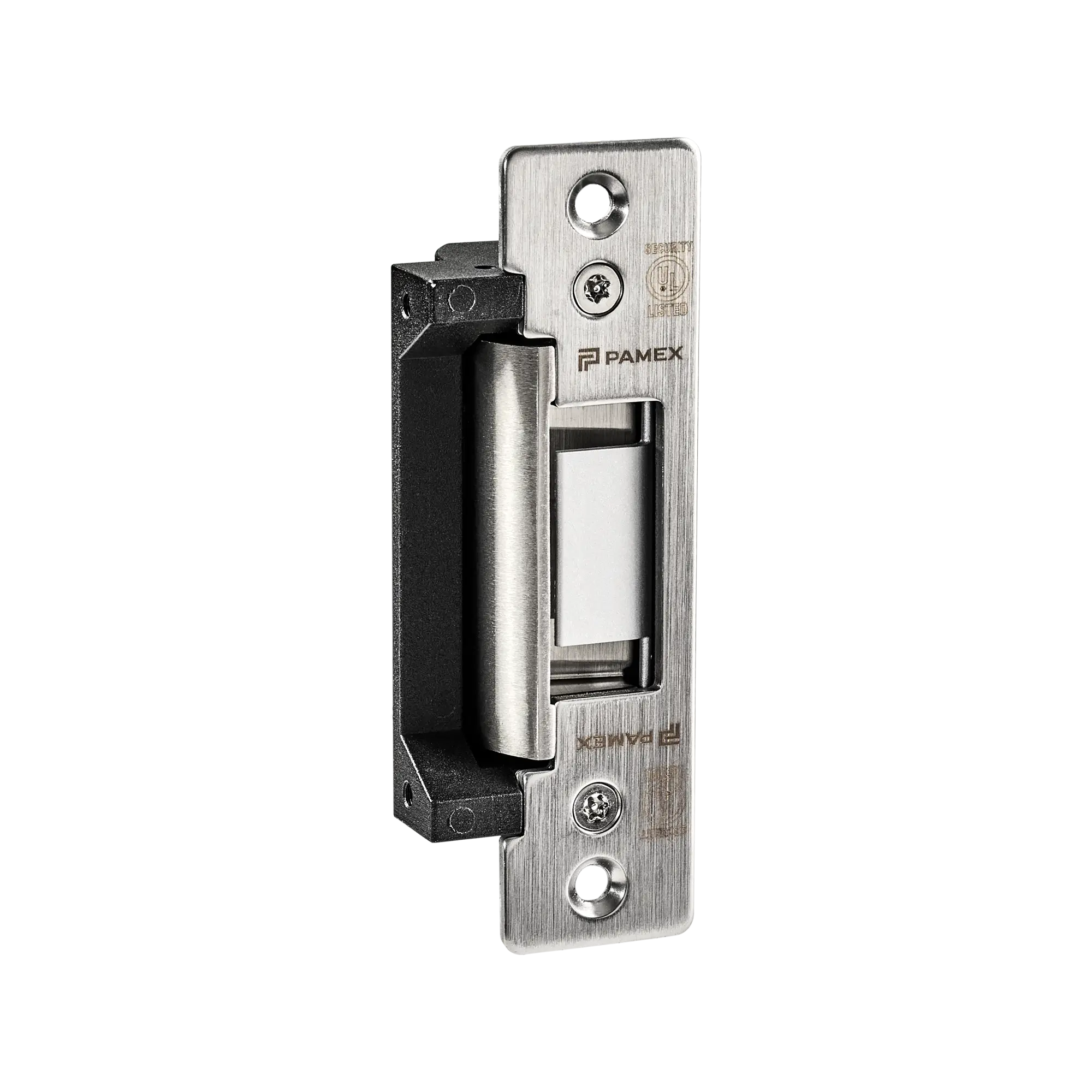

Shown in Stainless Steel.
Pamex · Electronic Hardware
Electric Strike - 110 Series
Supplier item ES-110SS
Project pricing by quote
Finish — Stainless Steel
Features & options
- For Tubular & Cylindrical Locks
- Built-in Latch monitoring
- Horizontal adjustment
- Non-handed & fully reversible
- Field reversible Fail-Secure or Fail-Safe
- Static strength: 1000 lbs.
- Dynamic strength: 50 ft-lbs.
- Latch Throw: 9/16” maximum
- Dual Voltage (field selectable): - 300mA @ 12VDC - 150mA @ 24VDC
- One year electronic warranty
- Five years finish warranty
- ANSI/BHMA A156.31. Grade 1
- UL 294, Access Control System
- UL 1034, Burglary-resistant rated
Specifications
- Static strength
- 1000 lbs.
- Dynamic strength
- 50 ft-lbs.
- Latch Throw
- 9/16” maximum
- Dual Voltage (field selectable)
- - 300mA @ 12VDC - 150mA @ 24VDC
Product documents
