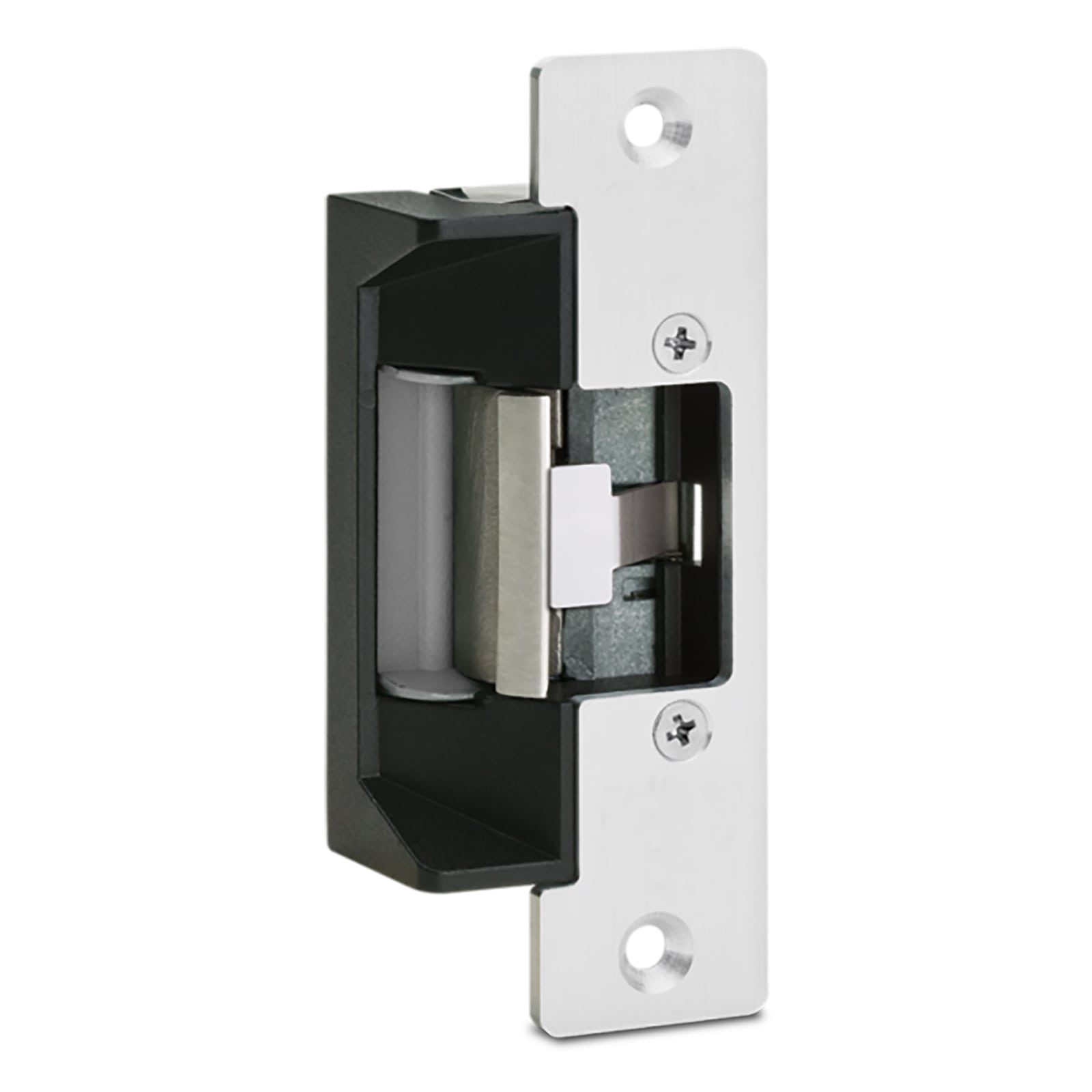

Shown in Satin Stainless Steel.
Pamex · Electronic Hardware
Electric Strike - 200 Series
Model ES-200
Project pricing by quote
Finish — Satin Stainless Steel
Features & options
- ANSI/BHMA A156.31, Grade 2
- UL Listed
- Fail-Secure & reversible for Fail-Safe operation
- Dual Voltage: 280/140mA @ 12/24VDC
- For latch throw up to 3/4" with 1/8" door gap
- Dimension: 1-1/4"W x 4-7/8"H x 1-3/16"D
Specifications
- Dual Voltage
- 280/140mA @ 12/24VDC
- Dimension
- 1-1/4"W x 4-7/8"H x 1-3/16"D
Product documents
