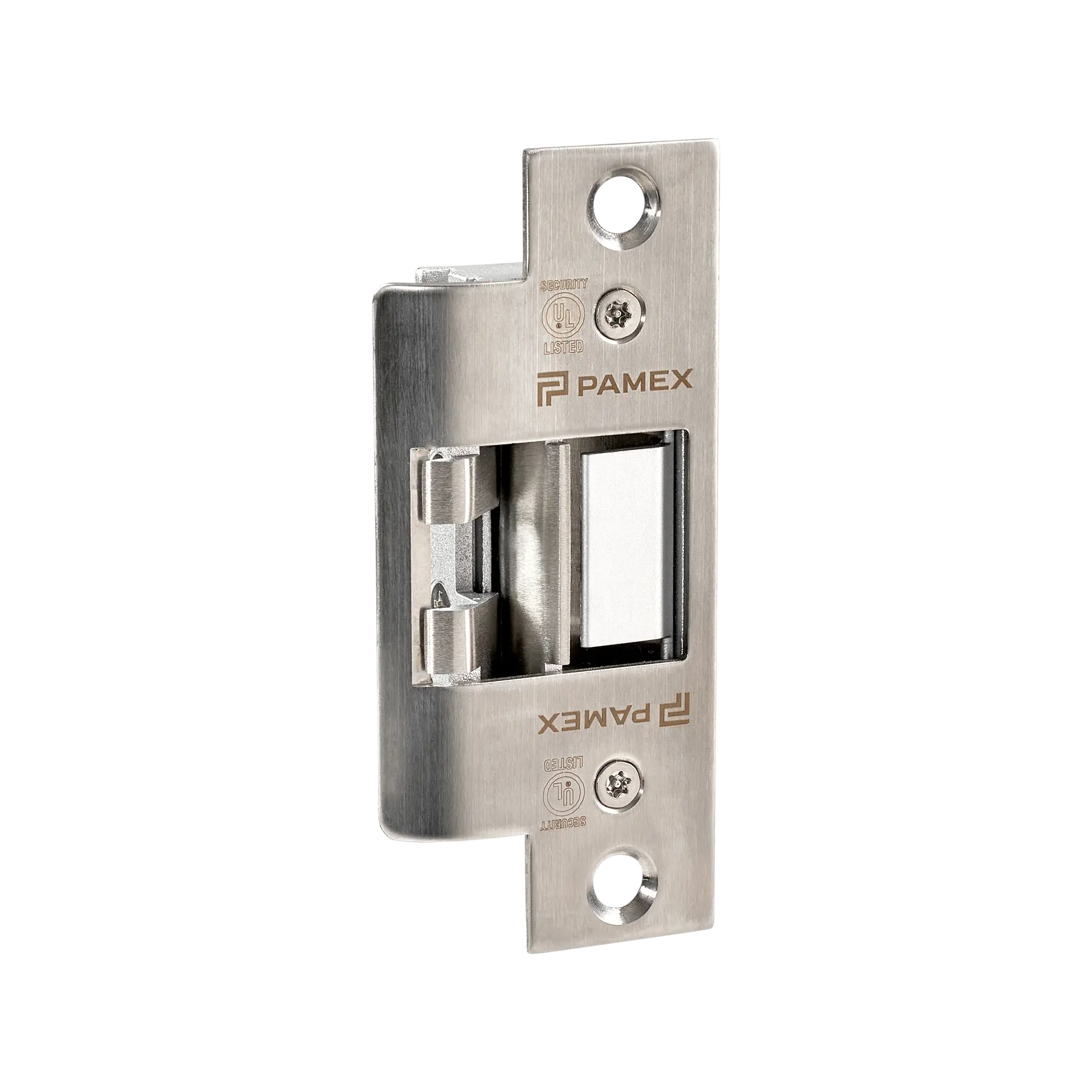

Shown in Satin Stainless Steel.
Pamex · Electronic Hardware
Electric Strike - 300 Series
Supplier item ES-300FSS
Project pricing by quote
Finish — Satin Stainless Steel
Features & options
- For Tubular & Cylindrical Locks
- Non-handed & fully reversible
- Field reversible for Fail-Secure or Fail-Safe
- Static strength: 1500 lbs.
- Dynamic strength: 70 ft-lbs.
- Latch Throw: 3/4” maximum
- Built-in Latch monitoring
- Horizontal adjustment
- Dual Voltage (field selectable): - 300mA @ 12VDC - 150mA @ 24VDC
- One year electronic warranty
- Five years finish warranty
- ANSI/BHMA A156.31. Grade 1
- UL 294, Access Control System
- UL 1034, Burglary-resistant rated
- UL 10C, 3-Hour Fire Rated (fail-secure only)
Specifications
- Static strength
- 1500 lbs.
- Dynamic strength
- 70 ft-lbs.
- Latch Throw
- 3/4” maximum
- Dual Voltage (field selectable)
- - 300mA @ 12VDC - 150mA @ 24VDC
