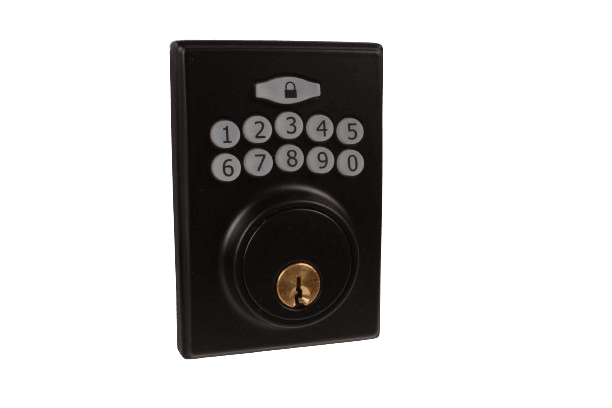

Shown in Matte Black.
Pamex · Locksets
Electronic Keypad Deadbolt
Model FKDS
Project pricing by quote
Finish — Matte Black
Features & options
- Door Preparation: Cross Bore: 2-1/8”, Edge: 1”
- Latch Backset: Adjustable UL deadbolt standard
- Faceplate: 1” x 2-1/4” round corner standard
- Bolt: 1” throw
- Door Thickness: Fit 1-3/8” to 1-3/4” standard
- Keyway: 5-pin KW keyway standard also available in 5 or 6-pin SC “C” keyway
- Strike Plate: 2-1/4” x 1” radius corner strike
- Batteries: 4 AA
Specifications
- Door Preparation
- Cross Bore: 2-1/8”, Edge: 1”
- Latch Backset
- Adjustable UL deadbolt standard
- Faceplate
- 1” x 2-1/4” round corner standard
- Bolt
- 1” throw
- Door Thickness
- Fit 1-3/8” to 1-3/4” standard
- Keyway
- 5-pin KW keyway standard also available in 5 or 6-pin SC “C” keyway
- Strike Plate
- 2-1/4” x 1” radius corner strike
- Batteries
- 4 AA
