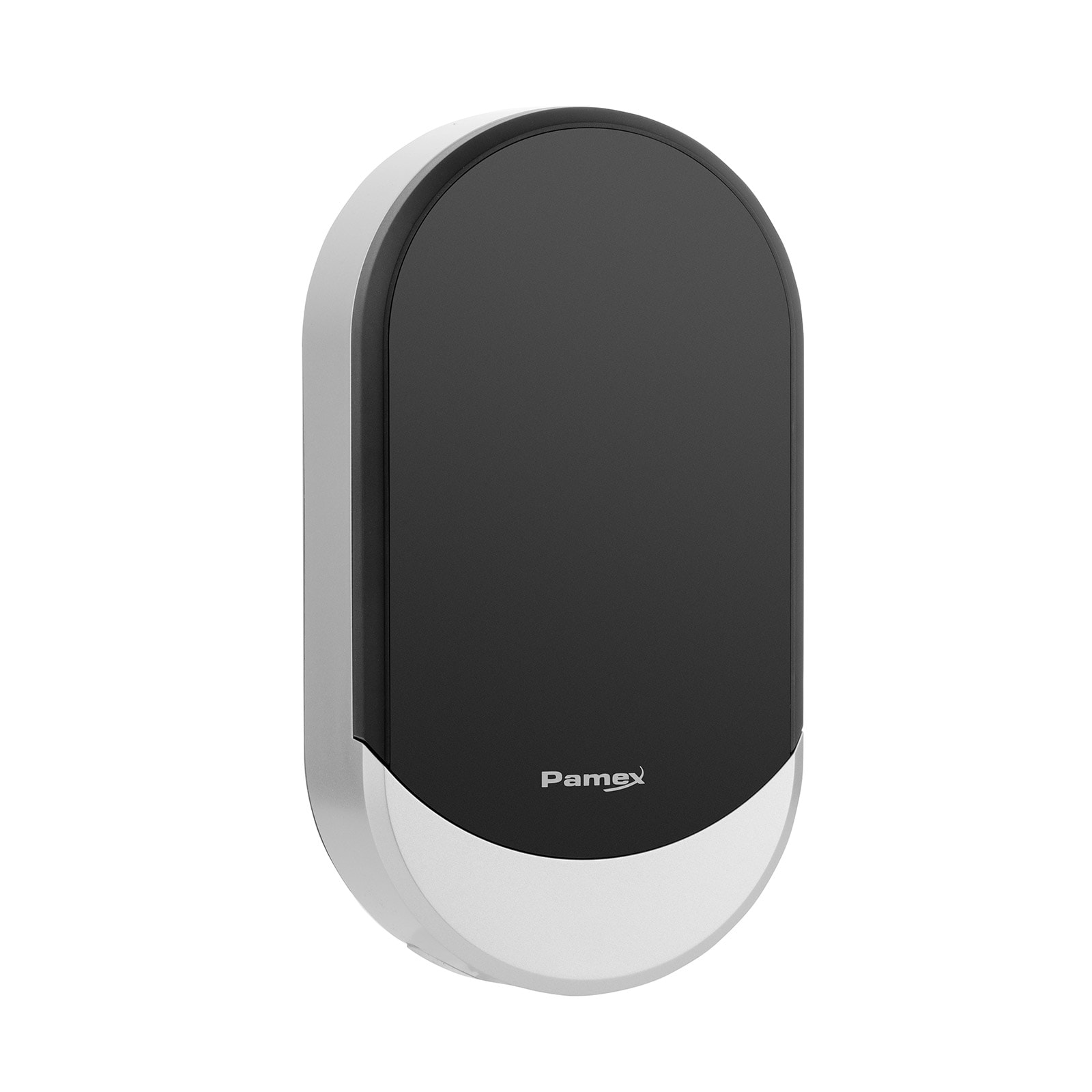

Shown in Satin Nickel.
Pamex · Multifamily Access Control
Enkore Wall-Reader
Model Enkore Wall-Reader
Project pricing by quote
Finish — Satin Nickel
Features & options
- Technologies: 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
- Frequency: 13.56MHz RFID
- Read Range: 1.5 cm (ISO Card); MIFARE DESFire
- Power Supply: Wired
- Operating Current: 30 mA typical, 150 mA max.
- Input Voltage: 12/24 Volts DC, 25VDC Absolute Max. rating
- Output Rating: Main Relay: Form “C” 2Amps @ 28 Volts max. Auxiliary Relay: Form “C” 2 Amp @ 28 Volts max.
- Operating Temperature: -30 to 120F
Specifications
- Technologies
- 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
- Frequency
- 13.56MHz RFID
- Read Range
- 1.5 cm (ISO Card); MIFARE DESFire
- Power Supply
- Wired
- Operating Current
- 30 mA typical, 150 mA max.
- Input Voltage
- 12/24 Volts DC, 25VDC Absolute Max. rating
- Output Rating
- Main Relay: Form “C” 2Amps @ 28 Volts max. Auxiliary Relay: Form “C” 2 Amp @ 28 Volts max.
- Operating Temperature
- -30 to 120F
