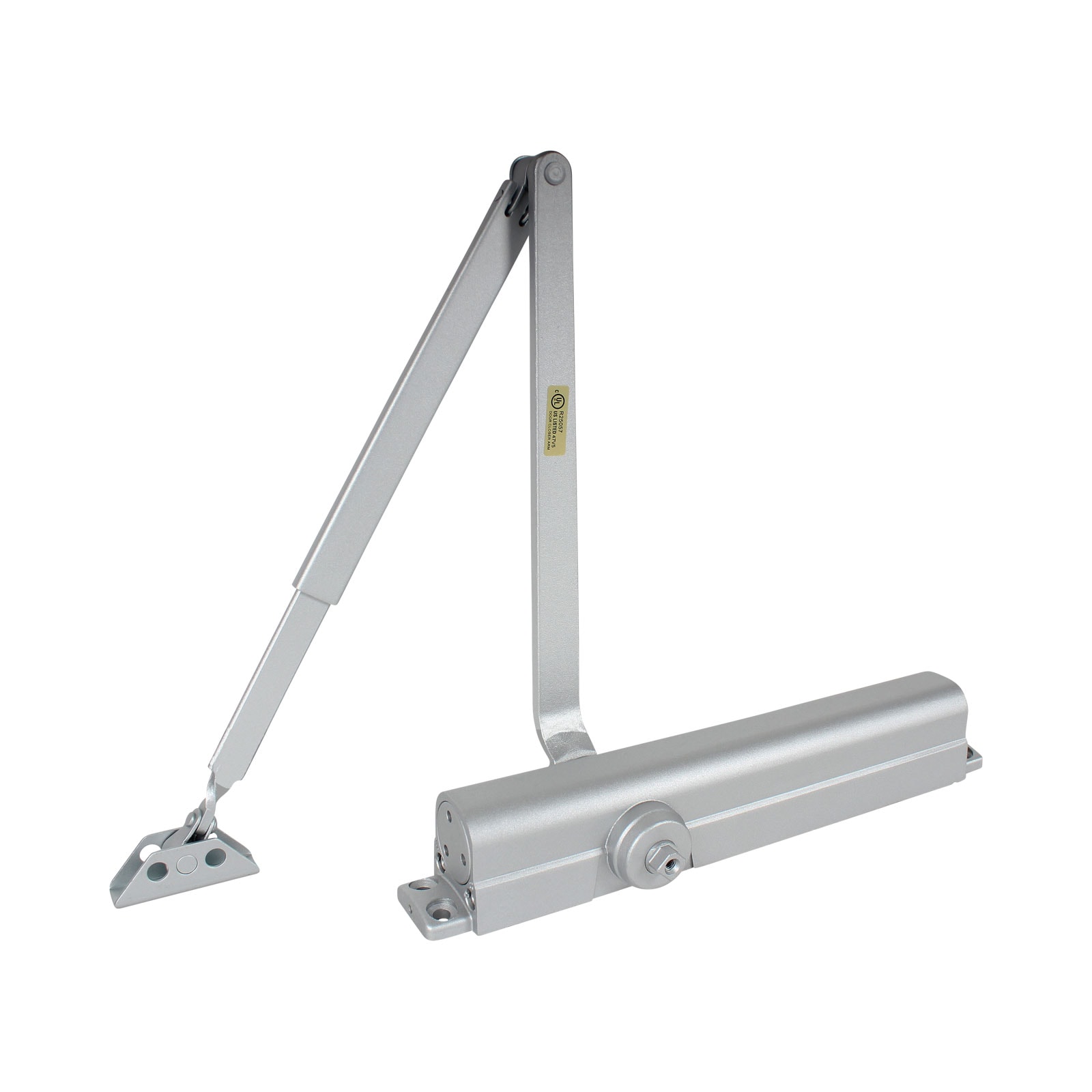

Manufacturer product view. Confirm the selected finish on your quote.
Pamex · Door Closers
GC6800 Series Door Closer
Supplier item GC6800BF-AL
Project pricing by quote
Finish — AL/689
Features & options
- ANSI/BHMA A156.4, Grade 1
- UL Listed, UL (10C) and UBC (7-2) Codes
- Universal application and non-handed installation (regular and parallel bracket included)
- Multi-size strength, power adjustable for 1 thru 6 (factory preset size 3)
- Double heat-treated steel, tempered springs
- Heat-treated steel piston and pinion
- Adjustable back check standard
- Tri-packed standard (for regular arm, top jamb, or parallel mounting)
- Adjustable closing and latching speed
- Optional delay action
- Door weight range from 44 ~ 265 lbs.
- Applications: Reliable heavy duty door closer designed for retail storefronts, schools, hospitals, and other high-use applications.
Specifications
- Applications
- Reliable heavy duty door closer designed for retail storefronts, schools, hospitals, and other high-use applications.
