Manufacturer product view. Confirm the selected finish on your quote.
Pamex · Door Hardware

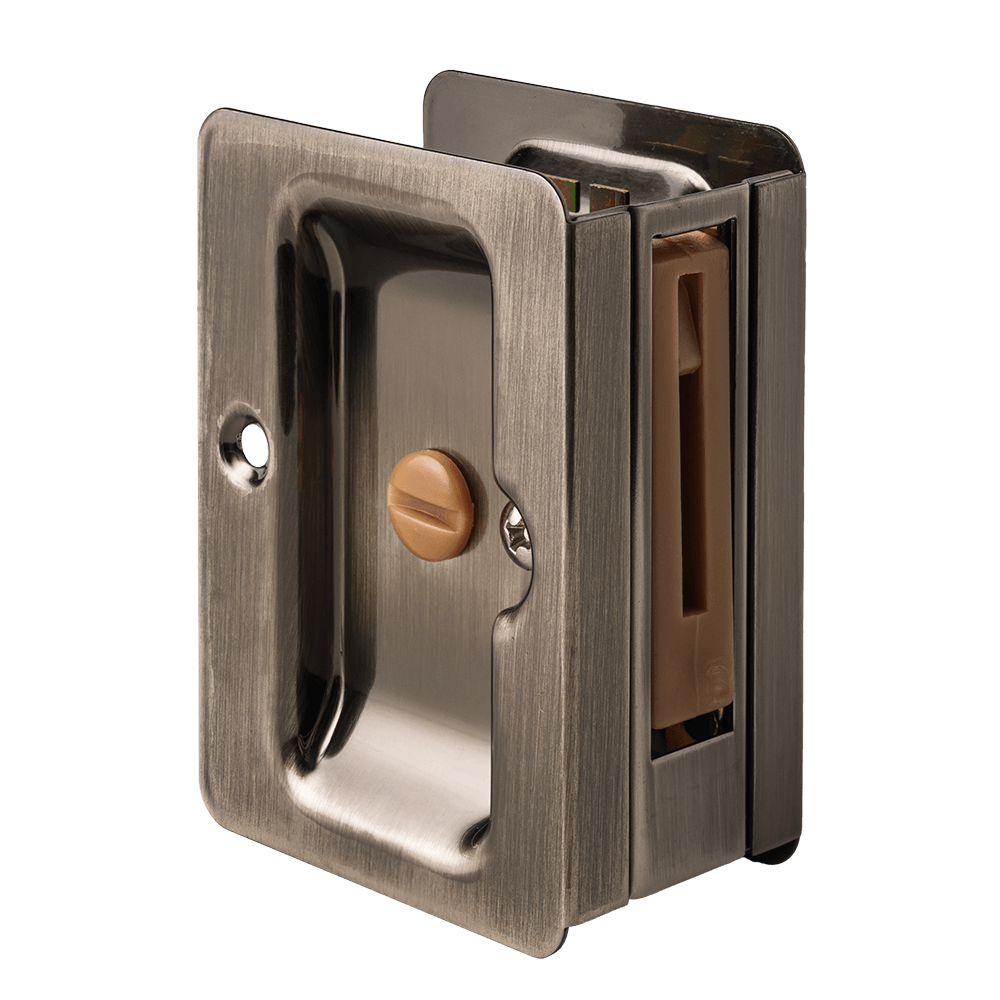

Sliding Door Lock (Weiser Style)
Supplier item FF1010
Project pricing by quote
Finish — Oil Rubbed Bronze
Features & options
- Door Preparation: Door Notching- 1-3/4” Depth x 2-7/8” High from Bore 1” Hole and 1/2” Deep
- Door Thickness: Fit 1-5/16” to 1-3/4” standard
- Bolt: 5/16” hook on Privacy only
- Strike Plate: 1-1/16 x 2-1/2” square corner strike
- Handing: Non-Handed
- Grade: ANSI/BHMAA 156.2 Grade 3
Specifications
- Door Preparation
- Door Notching- 1-3/4” Depth x 2-7/8” High from Bore 1” Hole and 1/2” Deep
- Door Thickness
- Fit 1-5/16” to 1-3/4” standard
- Bolt
- 5/16” hook on Privacy only
- Strike Plate
- 1-1/16 x 2-1/2” square corner strike
- Handing
- Non-Handed
- Grade
- ANSI/BHMAA 156.2 Grade 3
Product documents
Let’s work through the details
One call. One PO.
Doors, trim, and hardware for your next project. Share your selections and we will help complete the package.
