Pamex · Electronic Hardware

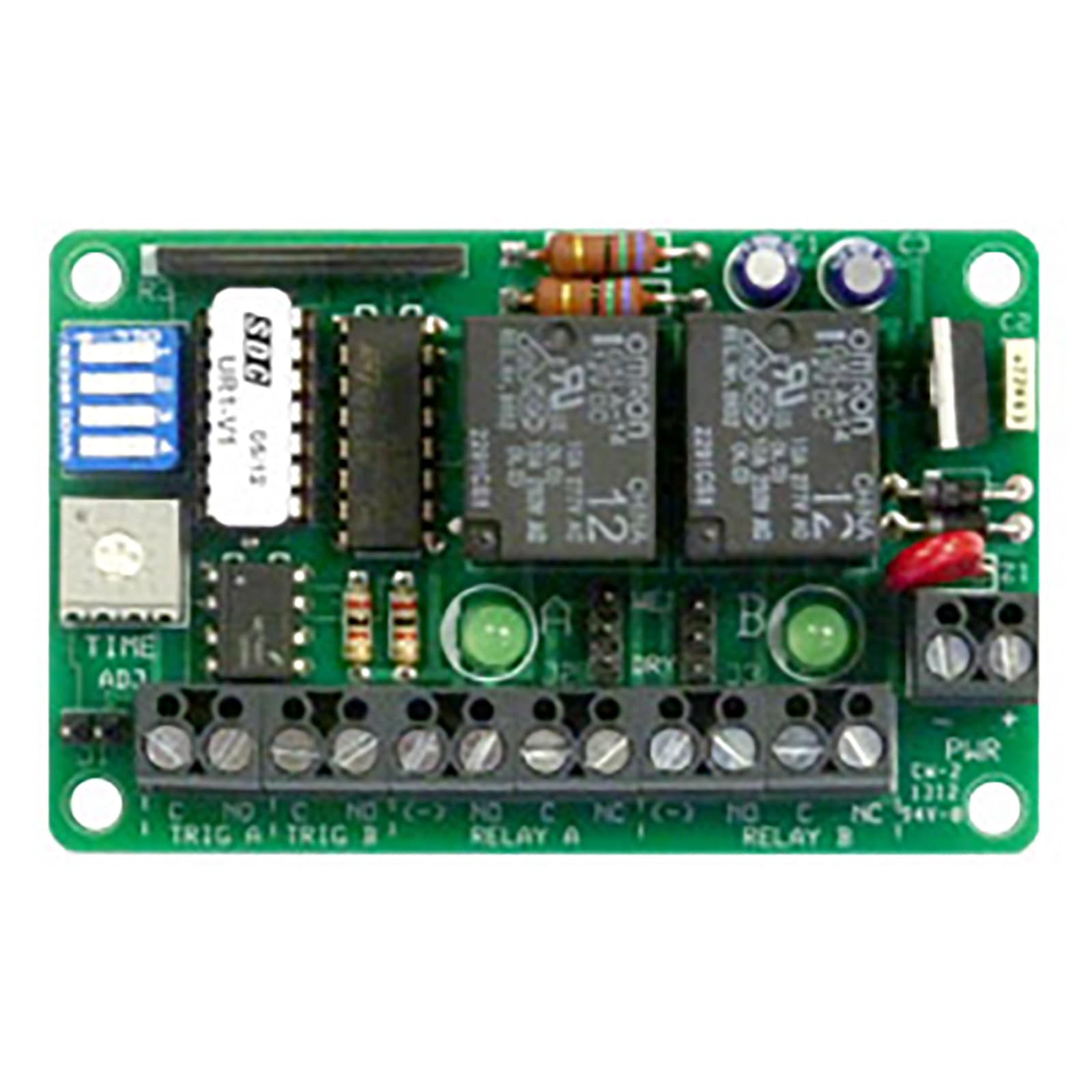

Universal Controller
Supplier item EPS-UC1
Project pricing by quote
Finish —
Features & options
- Provides a choice of individual dip switch selectable relay operating modes or system modes for lock control, monitoring, communicating door or lock system logic.
- Relay output modes may be individually configured as a Dray Contact or Voltage (Wet) Output.
- Relays may be configured to work independently or in tandem with adjacent relay.
- Input Voltage: Auto Sensing - 12VDC @ 120mA, 24VDC @ 175mA
- Trigger Inputs: Two Form "A" SPST, N.O. Inputs
- Outputs: Two Form "C" SPDT, (N.C. fail-safe, N.O. fail-secure)
- Dimension: 3-3/16" x 2" x 1"
Specifications
- Input Voltage
- Auto Sensing - 12VDC @ 120mA, 24VDC @ 175mA
- Trigger Inputs
- Two Form "A" SPST, N.O. Inputs
- Outputs
- Two Form "C" SPDT, (N.C. fail-safe, N.O. fail-secure)
- Dimension
- 3-3/16" x 2" x 1"
