01
Interior prehang
Flat jamb pairs, split-jamb options, headers, stops, and tall-opening sizes.
Paint-grade · 6/8 + 8/0
Opening components · sourced from SBP
The opening is
a system.
Jamb depth, wall build-up, handing, weather seal, sill, and slab all have to agree. Start with the opening—not a mislabeled pile of parts.
Opening detail A-17
Hinge jambStrike jambHead
72supplier listings
22priced core SKUs
4wall depths
Start with the application
Four jobs. Four different systems.
02
Exterior entry
Kerfed frames, weatherstrip, rot-resistant bottoms, sill pans, and complete sets.
Primed · stain-grade · composite
03
Pocket + cavity
Pocket frames and finished jamb kits matched to slab thickness, wall depth, and opening.
2×4 + 2×6 walls
04
Repair + retrofit
Replacement heads, legs, sill decks, extenders, frame stock, and water-management parts.
Component-level ordering
Core stock matrix
Find the part. Build the opening.
24 shown
SBP ProductsJ458FJP
Confirm availabilityPrimed finger-joint jamb pair
Paint-grade flat jamb legs for a standard 6/8 interior prehang.
- Size
- 11/16 in × 4-5/8 in × 81-11/16 in
- Material
- Finger-joint pine
- Finish
- Primed
Core stock6/8
$13.89 / pair
Budget price · final by quote
SBP ProductsF68514FJK
Confirm availabilityKerfed primed jamb pair
Deeper paint-grade jamb with a kerf ready for seal or weatherstrip.
- Size
- 1-1/4 in × 5-1/4 in × 82 in
- Material
- Finger-joint pine
- Finish
- Primed
Kerfed6/8
$52.49 / pair
Budget price · final by quote
SBP ProductsF68658FJ
Confirm availability6-5/8 in primed jamb pair
Wide flat jamb for deeper wall assemblies; no weatherstrip kerf.
- Size
- 1-1/4 in × 6-5/8 in × 82 in
- Material
- Finger-joint pine
- Finish
- Primed
Deep wall6/8
$39.11 / pair
Budget price · final by quote
SBP ProductsF80658FJ
Confirm availability8/0 wide primed jamb pair
Eight-foot flat jamb for tall openings and 2×6 wall conditions.
- Size
- 1-1/4 in × 6-5/8 in × 98 in
- Material
- Finger-joint pine
- Finish
- Primed
Deep wall8/0
$47.24 / pair
Budget price · final by quote
SBP ProductsF68658FJKWS
Confirm availabilityKerfed exterior jamb pair
Primed exterior frame legs with compression weatherstrip included.
- Size
- 1-1/4 in × 6-5/8 in × 82 in
- Material
- Finger-joint pine
- Finish
- Primed
Weatherstrip6/8
$40.54 / pair
Budget price · final by quote
SBP ProductsF80658FJKWS
Confirm availability8/0 kerfed exterior jamb pair
Tall primed frame legs, kerfed and supplied with weatherstrip.
- Size
- 1-1/4 in × 6-5/8 in × 98 in
- Material
- Finger-joint pine
- Finish
- Primed
Weatherstrip8/0
$48.65 / pair
Budget price · final by quote
SBP ProductsF68678FJKWS
Confirm availability6-7/8 in kerfed frame pair
Extra-deep exterior frame with installed weatherstrip for masonry or thick-wall details.
- Size
- 1-1/4 in × 6-7/8 in × 82 in
- Material
- Finger-joint pine
- Finish
- Primed
Weatherstrip6-7/8 in
$44.26 / pair
Budget price · final by quote
SBP ProductsF80678FJKWS
Confirm availability8/0 extra-deep frame pair
Eight-foot, 6-7/8 inch primed frame legs with compression weatherstrip.
- Size
- 1-1/4 in × 6-7/8 in × 98 in
- Material
- Finger-joint pine
- Finish
- Primed
Weatherstrip8/0
$50.60 / pair
Budget price · final by quote
SBP ProductsF30458FJPWSSET
Confirm availability3/0 primed exterior frame set
Complete 3/0 paint-grade frame set with kerf and weatherstrip.
- Size
- 4-5/8 in jamb depth × 6/8 opening
- Material
- Finger-joint pine
- Finish
- Primed
Complete set3/0
$56.40 / each
Budget price · final by quote
SBP ProductsFL458FJPWSSET
Confirm availability4-5/8 in weatherstripped frame set
Standard-depth exterior frame kit for a 6/8 door opening.
- Size
- 1-1/4 in × 4-5/8 in × 82 in
- Material
- Finger-joint pine
- Finish
- Primed
Weatherstrip6/8
$20.13 / each
Budget price · final by quote
SBP ProductsF70458KA
Confirm availabilityPremium knotty alder frame pair
Stain-grade exterior frame legs for a 7/0 entry door.
- Size
- 4-5/8 in jamb depth × 7/0 opening
- Material
- Knotty alder
- Finish
- Unfinished
Stain grade7/0
$100.31 / pair
Budget price · final by quote
EnduraFS1X4FJ7P
Confirm availabilityFrameSaver rot-resistant frame stock
Primed finger-joint frame stock with a rot-resistant composite bottom.
- Size
- 11/16 in × 3-1/4 in × 7 ft
- Material
- Wood + composite
- Finish
- Primed
Rot-resistantRepair
$24.44 / pc
Budget price · final by quote
SBP ProductsFS612
Confirm availabilitySolid exterior frame stock
Solid frame material sold by the linear foot for custom openings and repairs.
- Size
- Exterior frame profile
- Material
- Solid wood
- Finish
- Unfinished
Cut to length
$7.39 / lf
Budget price · final by quote
SILLCOVER

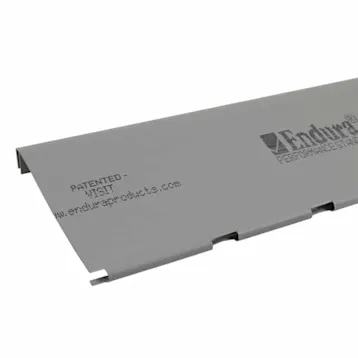

Confirm availabilityZ-Series inswing sill cover
Replacement deck cover for an Endura Z-Series inswing threshold.
- Size
- 32 in × 4-9/16 in
- Material
- Composite
- Finish
- Dark cap
Replacement
$3.44 / each
Budget price · final by quote
EnduraVERSAPAN4916PKG
Confirm availabilityVersaPan sill pan kit
Field-trimmable pan flashing system for exterior door installation.
- Size
- 42 in × 4-9/16 in
- Material
- Composite
- Finish
- Black
Water management
$24.08 / each
Budget price · final by quote
OS73ADA

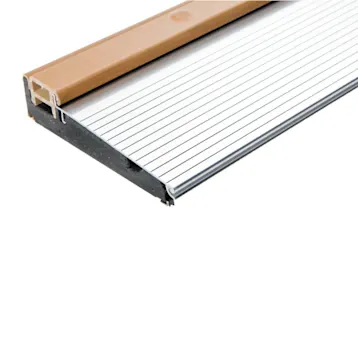

Confirm availabilityADA outswing threshold
Low-profile thermally broken outswing sill for accessible openings.
- Size
- 73 in × 5-5/8 in
- Material
- Aluminum
- Finish
- Mill
ADAOutswing
$59.36 / each
Budget price · final by quote
MVISTA90

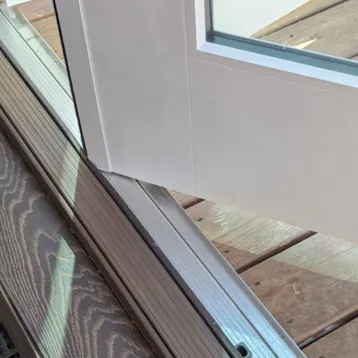

Confirm availabilityMiraVista folding-door sill
Sill system for multi-panel folding door assemblies; configured by opening.
- Size
- Multiple opening widths
- Material
- Aluminum
- Finish
- Mill / bronze
Folding doorConfigured
Configure for price
Budget price · final by quote
CSJK4SW308013449

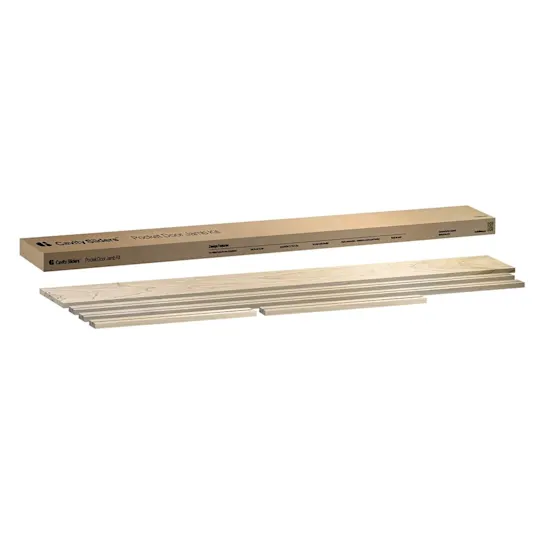

Confirm availability4-9/16 in pocket jamb kit
Complete split-jamb finishing kit for a 3/0 × 8/0 pocket-door opening.
- Size
- 3/0 × 8/0 opening; 4-9/16 in wall
- Material
- Poplar
- Finish
- Unfinished
Pocket door8/0
$335.53 / each
Budget price · final by quote
CSJK4SW308013849
Confirm availability4-9/16 in pocket jamb kit — 1-3/8
Poplar split-jamb finishing kit sized for a 1-3/8 inch slab.
- Size
- 3/0 × 8/0 opening; 4-9/16 in wall
- Material
- Poplar
- Finish
- Unfinished
Pocket door1-3/8 in slab
$335.53 / each
Budget price · final by quote
EnduraMVISTAFRMKIT
Confirm availabilityMiraVista frame assembly kit
Assembly hardware package for MiraVista folding-door frames.
- Size
- Frame assembly kit
- Material
- Mixed components
- Finish
- Factory
Assembly kit
$32.35 / each
Budget price · final by quote
SBP ProductsPH30
Confirm availability3/0 weatherstripped frame head
Primed 3/0 head piece with compression weatherstrip installed.
- Size
- 3/0 opening × 4-5/8 in depth
- Material
- Finger-joint pine
- Finish
- Primed
Header3/0
$8.94 / each
Budget price · final by quote
SBP ProductsJ458KA30
Confirm availabilityKnotty alder frame head
Stain-grade 3/0 header for knotty-alder exterior frame assemblies.
- Size
- 38 in × 4-5/8 in
- Material
- Knotty alder
- Finish
- Unfinished
HeaderStain grade
$28.39 / each
Budget price · final by quote
8541FJ8P

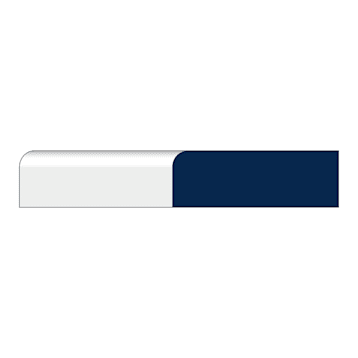

Confirm availabilityWM876 primed door stop
Barcoded paint-grade stop for interior jamb and prehang assemblies.
- Size
- 7/16 in × 1-3/8 in × 98 in
- Material
- Finger-joint pine
- Finish
- Primed
WM8768/0
$2.57 / each
Budget price · final by quote
Worldwide Door ComponentsWPC0106FXT
Confirm availability4Ever composite frame system
Fully composite frame material for wet zones, coastal exposure, and high-abuse entries.
- Size
- Multiple depths and lengths
- Material
- Composite
- Finish
- White
No-rotConfigured
Configure for price
Budget price · final by quote
Opening anatomy
Five parts.
One weather-tight opening.
We match the frame to the wall, the slab, and the exposure. That means fewer field shims, fewer callbacks, and no guessing which “jamb” a schedule meant.
- 1HeadMatch opening width and jamb depth.
- 2Hinge legCarries slab weight; prep follows hinge schedule.
- 3Strike legBore, latch, and handing determine the prep.
- 4Stop / sealInterior stop or exterior compression weatherstrip.
- 5Sill systemInswing, outswing, ADA, or folding-door geometry.
No-rot composite systemRot-resistant bottomJamb depth guide
Measure the finished wall—not just the stud.
Drywall, tile, wainscot, and masonry returns change the number. If the wall build-up varies, send the schedule and a field photo.
| Jamb depth | Typical wall | Best use |
|---|---|---|
| 4-5/8 in | 2×4 framing + 1/2 in drywall each side | Standard interior and exterior openings |
| 5-1/4 in | 2×4 framing with thicker finish build-up | Tile, paneling, or uneven renovation walls |
| 6-5/8 in | 2×6 framing + 1/2 in drywall each side | Deep-wall residential construction |
| 6-7/8 in | 2×6 framing with added finish thickness | Masonry returns and special wall assemblies |
Budget prices use the current supplier unit cost and Abel’s Door Frames & Jambs target margin. Volume tiers, prep, assembly, delivery, and job conditions are confirmed on the quote.
Let’s work through the details
Send the opening schedule. We’ll solve the system.
Interior jambs, exterior frames, weatherseal, thresholds, and pocket systems—matched to wall depth, slab, handing, and exposure on one quote.
