Beams & Ceilings · Formal rectangular room
Classic Square Coffered Ceiling
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements

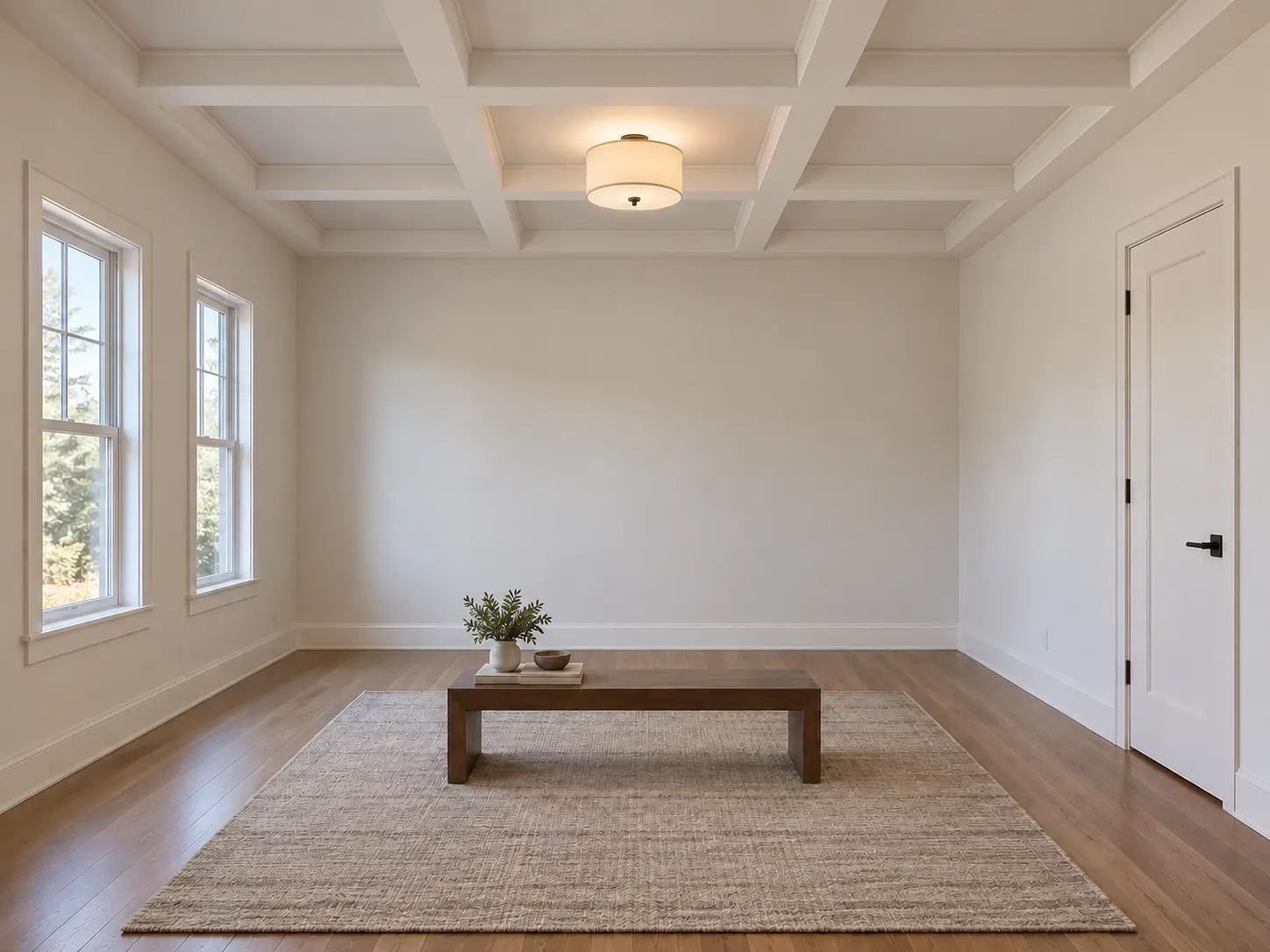

Lay out a centered 4 ft by 4 ft grid. Build 6 in wide by 6 in deep hollow beams, keep perimeter coffers equal, and center the grid on the room rather than on a wall.
- Material / finish
- Painted warm white MDF with crisp square inside corners
- Default species
- Paint grade MDF
- Nominal sizes

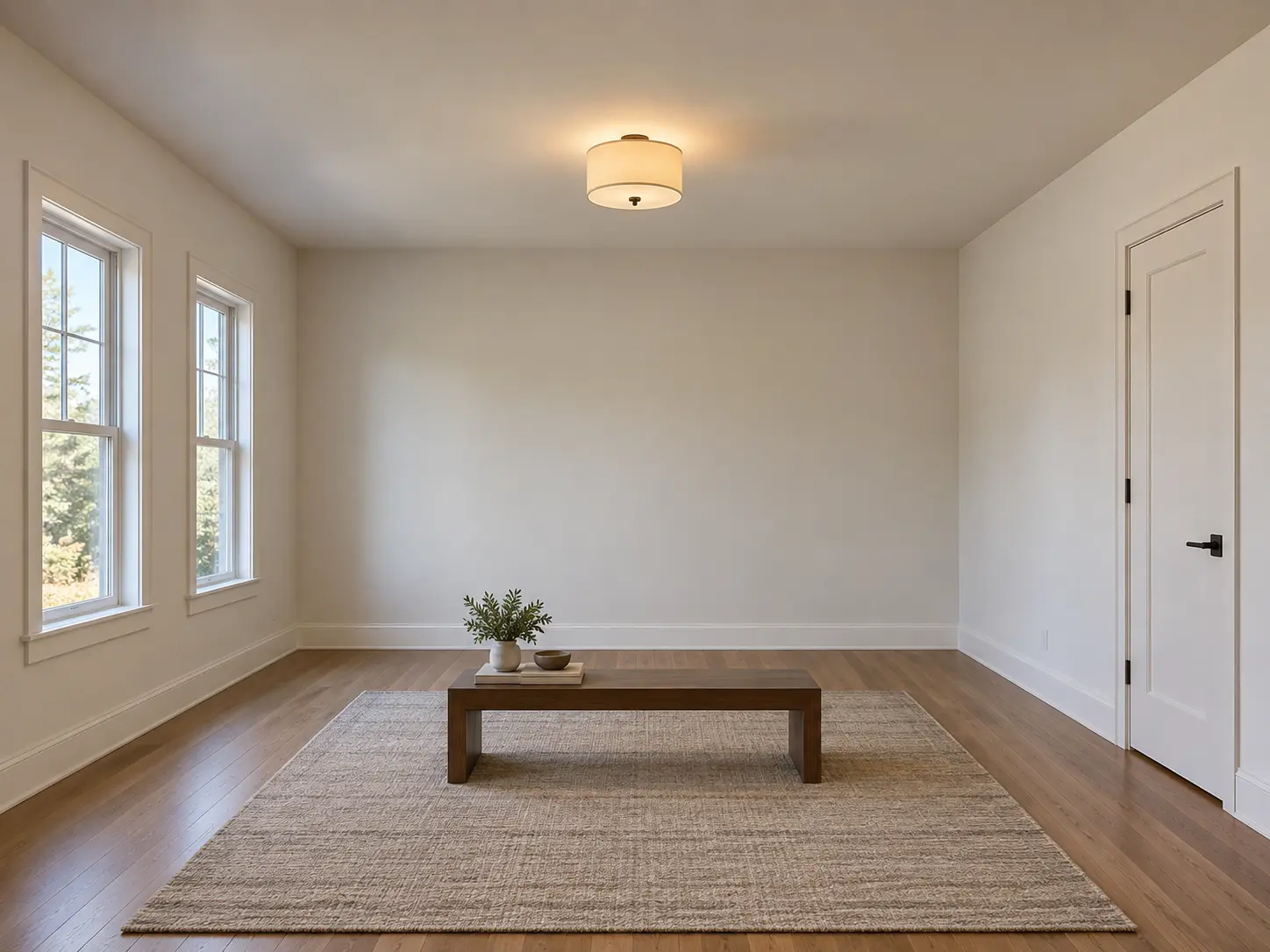

- 12 ft clear width by 16 ft clear length, 10 ft flat ceiling, feature wall on the 12 ft north wall, square corners, level floor and ceiling planes. Two matching 3 ft by 6 ft windows centered on the west wall with 2 ft between them; one 3 ft by 8 ft door on the east wall, 18 in from the south corner; north feature wall uninterrupted. Field measurement required before material release.
- Milled parts
- 6
- Material package
- ASM-FINISH-F01-MAT
- Labor package
- ASM-FINISH-F01-INST
- Planning crew hours
- 48
Installed labor scope
- Field measure and site-condition reviewLAB-WALL-SURVEY-EA1 per design area
- Mobilization, protection and containmentLAB-WALL-PROTECT-EA1 per mobilization
- Substrate prep, flattening and patchingLAB-WALL-PREP-SFNet treated SF
- Pattern layout, datum setup and elevation verificationLAB-WALL-LAYOUT-EA1 per design area
- Custom shop fabrication and dry fitLAB-SHOP-MILL-HRShop hours from approved cut list
- Install panel, sheet or plank finish systemLAB-FLD-PANEL-SFNet installed panel SF
- Install beams, trim, rails, stiles and mouldingsLAB-FLD-TRIM-LFInstalled millwork LF
- Prep, prime, caulk and apply two finish coatsLAB-FIN-PAINT-SFCalculated finishable surface SF
- Final detail, cleanup and turnoverLAB-WALL-CLEAN-EA1 per project
Activities are tied to this installed package. Crew size, production rates, minimums and sell rates remain estimator-approved quote inputs.
Baseline material package
- Beam skins and bottomsMDF-3/4-4X81 planning line; SF quantity by approved field takeoff
- Beam blockingSPF-2X4-81 planning line; LF quantity by approved field takeoff
- Coffer field trimMLD-PM-1.251 planning line; LF quantity by approved field takeoff
- Installation consumablesCONS-FAST-ADH1 planning line; SET quantity by approved field takeoff
- Joint finishingCONS-CAULK-FILL1 planning line; SET quantity by approved field takeoff
- Paint finishFIN-PAINT-SYSTEM1 planning line; SF quantity by approved field takeoff
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Planning assembly SKUs, component codes, construction geometry, cut-list rules, waste factors and labor activities are tied to this design. Exact active Spruce item numbers, purchase units, verified quantities, appliance clearances and labor rates require estimator approval before ordering or quoting.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Beam skins and bottoms3/4 in paint-grade MDF beam-wrap stock · Paint grade MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Beam blockingKiln-dried SPF backing and ladder blocking · Paint grade MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Coffer field trim1-1/4 in panel moulding at recessed fields · Paint grade MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Installation consumablesCompatible adhesive, finish fasteners, shims and blocking accessories · Paint grade MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Joint finishingPaint-grade filler, caulk and abrasives · Paint grade MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Paint finishPrimer plus two approved finish coats · Paint grade MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- This component’s quantity formula needs a reviewed construction detail.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
Your measurement summary
