Beams & Ceilings · Large flat ceiling great room
Coffered Ceiling With Plank Fields
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements

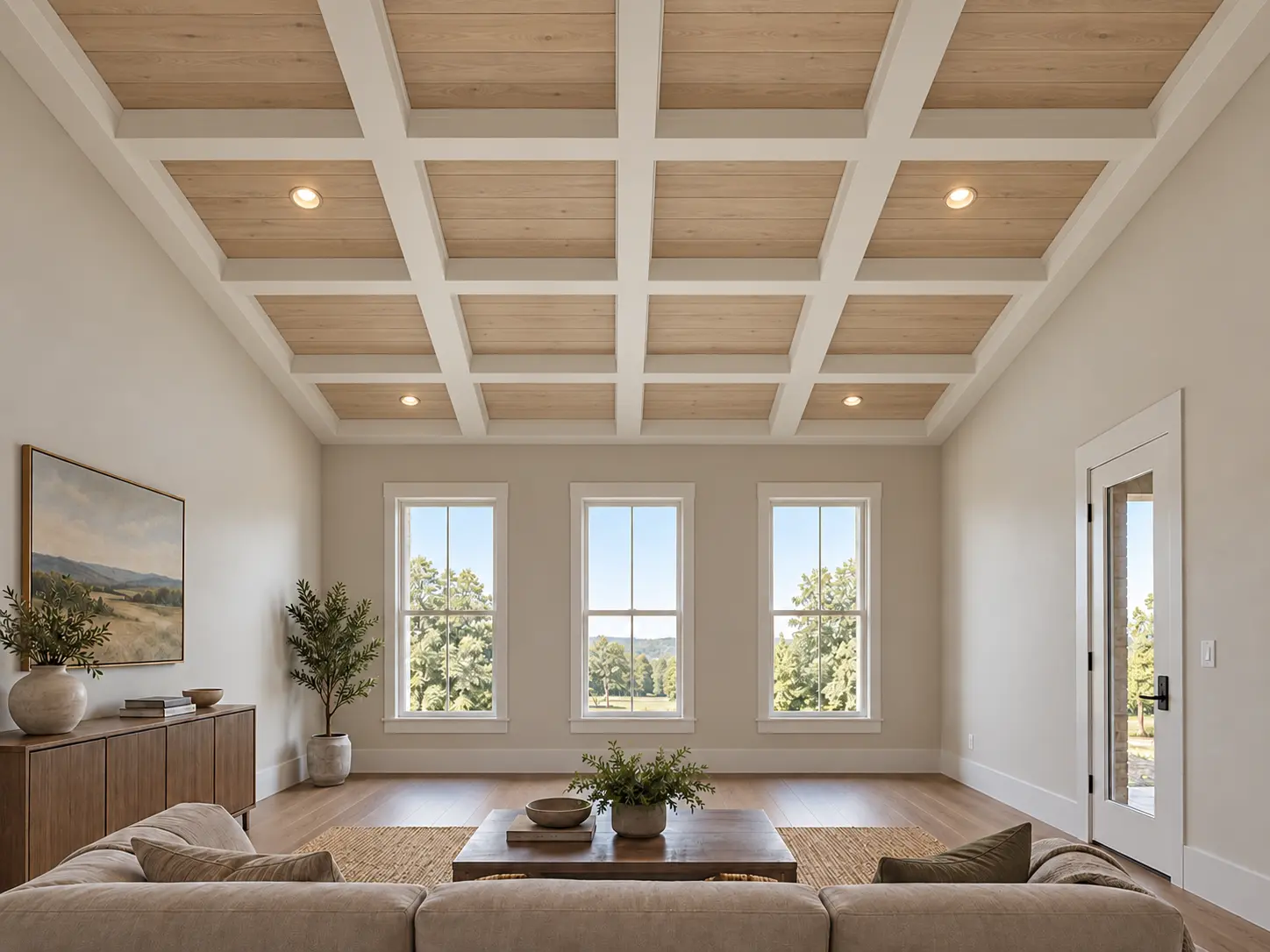

Build a 4 ft square coffer grid with 6 in by 6 in beams. Fill each recessed field with centered 1x6 tongue and groove boards running consistently in one direction.
- Material / finish
- Painted beams with natural white oak plank fields
- Default species
- White oak
- Nominal sizes

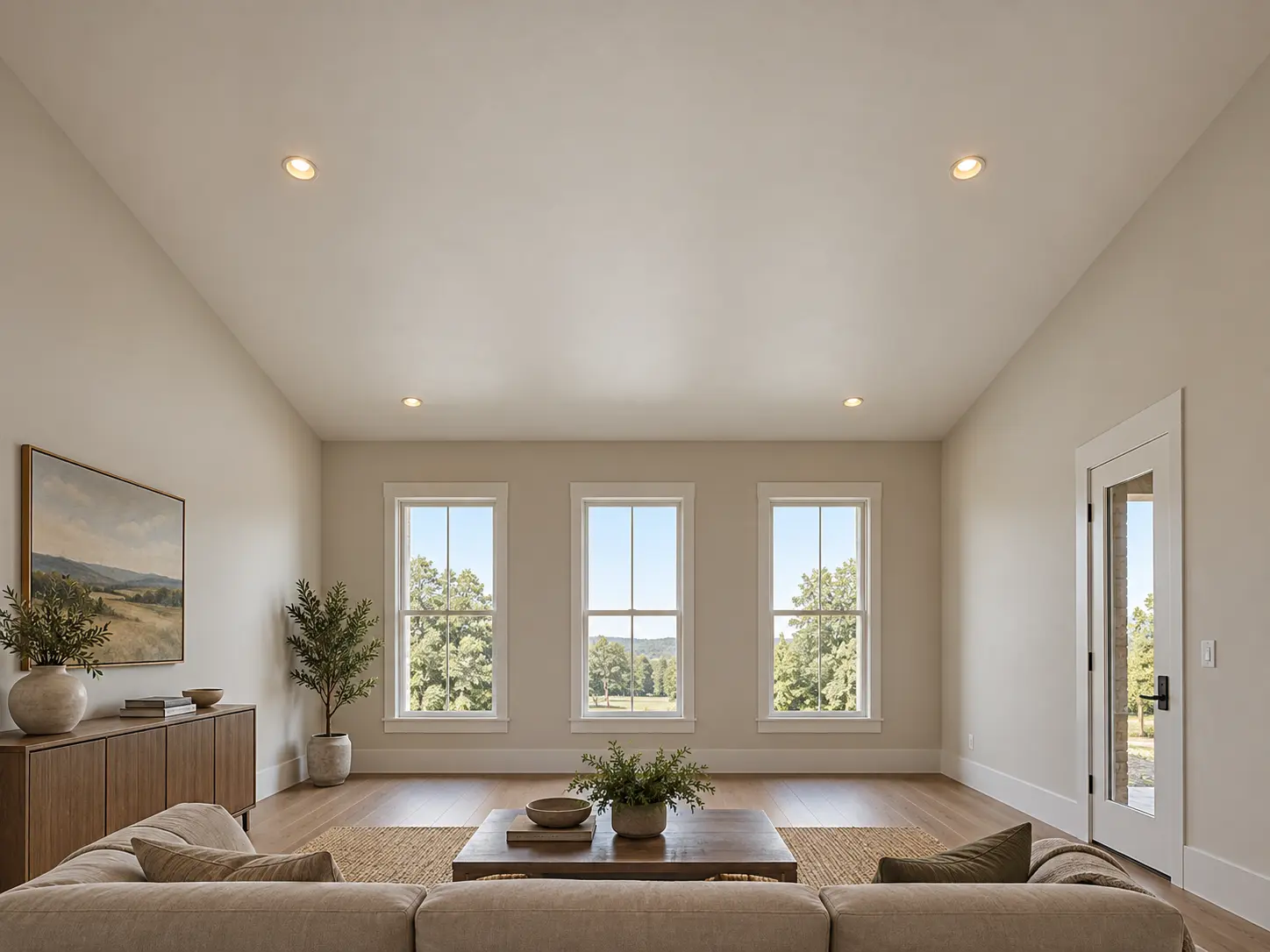

- 16 ft clear width by 20 ft clear length, 10 ft flat ceiling, centered room axes, no soffits, flush ceiling plane before treatment. Three 3 ft by 6 ft windows equally spaced on the west wall; one 3 ft by 8 ft door on the east wall near the south corner; north and south walls otherwise uninterrupted. Field measurement required before material release.
- Milled parts
- 7
- Material package
- ASM-FINISH-F12-MAT
- Labor package
- ASM-FINISH-F12-INST
- Planning crew hours
- 48
Installed labor scope
- Field measure and site-condition reviewLAB-WALL-SURVEY-EA1 per design area
- Mobilization, protection and containmentLAB-WALL-PROTECT-EA1 per mobilization
- Substrate prep, flattening and patchingLAB-WALL-PREP-SFNet treated SF
- Pattern layout, datum setup and elevation verificationLAB-WALL-LAYOUT-EA1 per design area
- Custom shop fabrication and dry fitLAB-SHOP-MILL-HRShop hours from approved cut list
- Install panel, sheet or plank finish systemLAB-FLD-PANEL-SFNet installed panel SF
- Install beams, trim, rails, stiles and mouldingsLAB-FLD-TRIM-LFInstalled millwork LF
- Prep, prime, caulk and apply two finish coatsLAB-FIN-PAINT-SFCalculated finishable surface SF
- Sand, stain or oil and clear-finish woodworkLAB-FIN-WOOD-SFCalculated exposed wood SF
- Final detail, cleanup and turnoverLAB-WALL-CLEAN-EA1 per project
Activities are tied to this installed package. Crew size, production rates, minimums and sell rates remain estimator-approved quote inputs.
Baseline material package
- Beam skins and bottomsMDF-3/4-4X81 planning line; SF quantity by approved field takeoff
- Beam blockingSPF-2X4-81 planning line; LF quantity by approved field takeoff
- Recessed plank fieldsMAT-WO-TG-1X61 planning line; SF quantity by approved field takeoff
- Installation consumablesCONS-FAST-ADH1 planning line; SET quantity by approved field takeoff
- Joint finishingCONS-CAULK-FILL1 planning line; SET quantity by approved field takeoff
- Paint finishFIN-PAINT-SYSTEM1 planning line; SF quantity by approved field takeoff
- Wood finishFIN-WOOD-CLEAR1 planning line; SF quantity by approved field takeoff
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Planning assembly SKUs, component codes, construction geometry, cut-list rules, waste factors and labor activities are tied to this design. Exact active Spruce item numbers, purchase units, verified quantities, appliance clearances and labor rates require estimator approval before ordering or quoting.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Beam skins and bottoms3/4 in paint-grade MDF beam-wrap stock · White oakComponent 1 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Beam blockingKiln-dried SPF backing and ladder blocking · White oakComponent 2 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Recessed plank fields1x6 tongue-and-groove white oak · White oakComponent 3 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Installation consumablesCompatible adhesive, finish fasteners, shims and blocking accessories · White oakComponent 4 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Joint finishingPaint-grade filler, caulk and abrasives · White oakComponent 5 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Paint finishPrimer plus two approved finish coats · White oakComponent 6 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Wood finishApproved stain or oil plus protective clear finish · White oakComponent 7 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- This component’s quantity formula needs a reviewed construction detail.
- Set contents and quantities require a reviewed assembly definition.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
