Mantels & Fireplaces · Centered fireplace great room
Paneled Fireplace Chimney Wall
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements

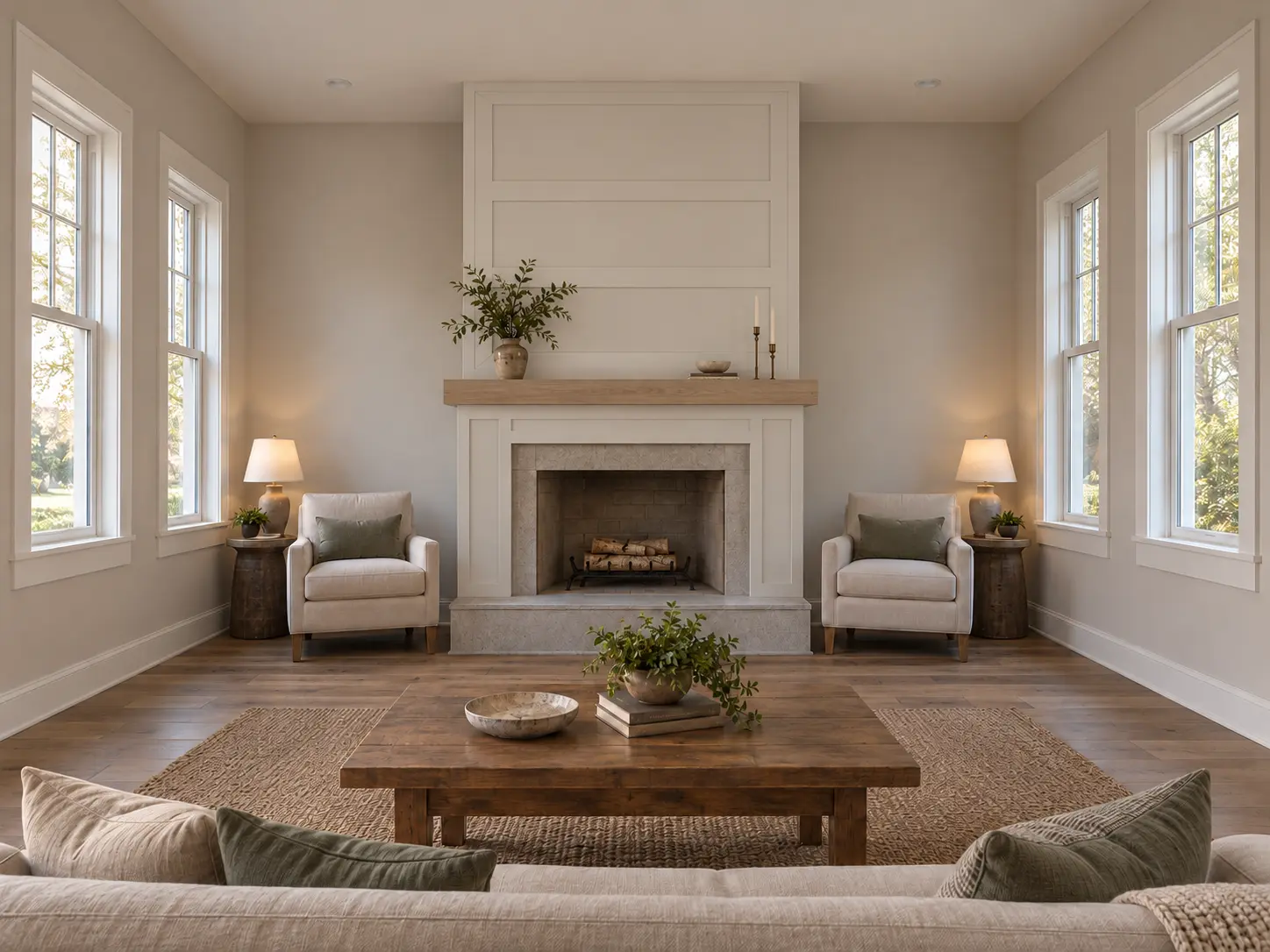

Frame a 6 ft wide chimney breast to the ceiling. Use three stacked shaker panels above the mantel and symmetrical narrow panel wings beside the firebox.
- Material / finish
- Painted MDF panels with stained white oak mantel
- Default species
- White oak
- Nominal sizes
- 16 ft wide by 20 ft deep room, 10 ft ceiling, 6 ft wide centered chimney mass on the north wall, firebox opening 42 in wide by 32 in high with sill 12 in above floor. Two 3 ft by 6 ft windows on west wall, two matching windows on east wall, one rear door outside the hero frame; fireplace wall otherwise symmetrical. Field measurement required before material release.
- Milled parts
- 7
- Material package
- ASM-FINISH-F36-MAT
- Labor package
- ASM-FINISH-F36-INST
- Planning crew hours
- 44
Installed labor scope
- Field measure and site-condition reviewLAB-WALL-SURVEY-EA1 per design area
- Mobilization, protection and containmentLAB-WALL-PROTECT-EA1 per mobilization
- Substrate prep, flattening and patchingLAB-WALL-PREP-SFNet treated SF
- Pattern layout, datum setup and elevation verificationLAB-WALL-LAYOUT-EA1 per design area
- Custom shop fabrication and dry fitLAB-SHOP-MILL-HRShop hours from approved cut list
- Install panel, sheet or plank finish systemLAB-FLD-PANEL-SFNet installed panel SF
- Install beams, trim, rails, stiles and mouldingsLAB-FLD-TRIM-LFInstalled millwork LF
- Coordinate firebox clearances and finish interfacesLAB-FLD-FIREPLACE-EA1 fireplace
- Prep, prime, caulk and apply two finish coatsLAB-FIN-PAINT-SFCalculated finishable surface SF
- Sand, stain or oil and clear-finish woodworkLAB-FIN-WOOD-SFCalculated exposed wood SF
- Final detail, cleanup and turnoverLAB-WALL-CLEAN-EA1 per project
Activities are tied to this installed package. Crew size, production rates, minimums and sell rates remain estimator-approved quote inputs.
Baseline material package
- Painted panel systemMDF-3/4-4X81 planning line; SF quantity by approved field takeoff
- Mantel assemblyWO-1X10-81 planning line; LF quantity by approved field takeoff
- Fireplace support and backerMAT-FP-FRAMING-BACKER1 planning line; SET quantity by approved field takeoff
- Installation consumablesCONS-FAST-ADH1 planning line; SET quantity by approved field takeoff
- Joint finishingCONS-CAULK-FILL1 planning line; SET quantity by approved field takeoff
- Paint finishFIN-PAINT-SYSTEM1 planning line; SF quantity by approved field takeoff
- Wood finishFIN-WOOD-CLEAR1 planning line; SF quantity by approved field takeoff
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Planning assembly SKUs, component codes, construction geometry, cut-list rules, waste factors and labor activities are tied to this design. Exact active Spruce item numbers, purchase units, verified quantities, appliance clearances and labor rates require estimator approval before ordering or quoting.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Painted panel systemPaint-grade MDF panels with poplar rails, stiles and trim · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Mantel assemblyRift white-oak mantel shelf or beam · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Fireplace support and backerBlocking plus listed noncombustible backer at firebox · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Installation consumablesCompatible adhesive, finish fasteners, shims and blocking accessories · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Joint finishingPaint-grade filler, caulk and abrasives · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Paint finishPrimer plus two approved finish coats · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Wood finishApproved stain or oil plus protective clear finish · White oak | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- This component’s quantity formula needs a reviewed construction detail.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
