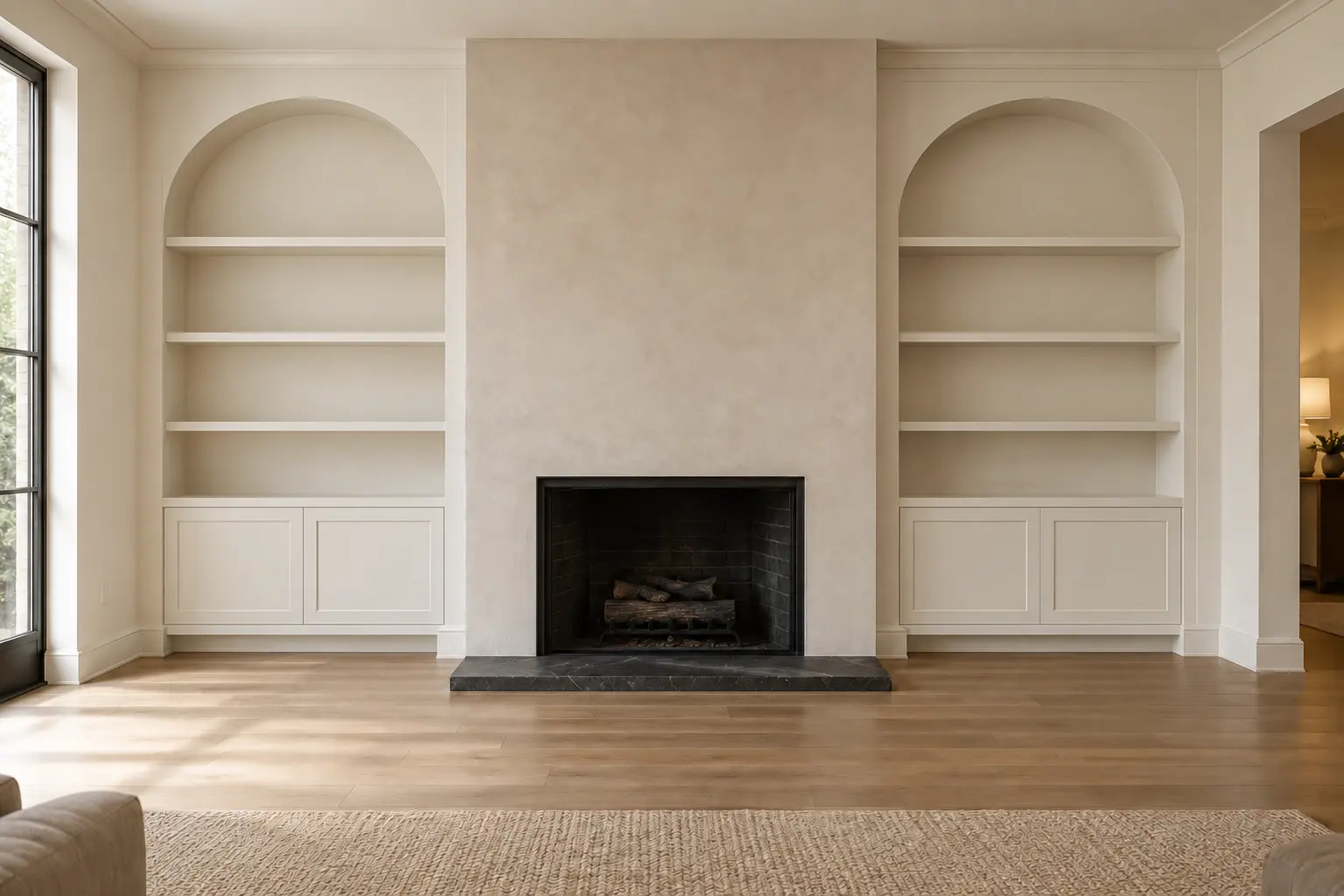

Arched Alcove Built Ins
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements
matched 20 in rise arches, three shelves per side, inset lower doors
- Material / finish
- Paint-grade poplar and MDF; warm white satin
- Default species
- Paint grade poplar and MDF
- Nominal sizes
- Overall 168 in W × 120 in H; shelf 74 in W × 9 in D; legs 7 in W
- Milled parts
- 13
- Material package
- MTL-B38-KIT
- Labor package
- LAB-B38-PKG
- Planning crew hours
- 120
Baseline material package
- Mantel shelfPOP-1X10-81 pcs 8 ft
- Leg or pilaster blanksPOP-1X7-82 pcs 8 ft
- Frieze or header blankPOP-1X8-122 pcs 12 ft
- Build-up and panel stockMDF-3/4-4X82 4x8 sheets
- Applied profile packageMLD-COVE-BEAD4 16 ft sticks
- Built-in cabinet casesPLY-MAPLE-3/43 4x8 sheets
- Built-in backsPLY-1/2-4X82 4x8 sheets
- Face frames and shelf nosingPOP-1X2-816 pcs 8 ft
- Cabinet hardwareHDW-BUILTIN1 set
- Wall cleats and blockingSPF-2X4-83 pcs 8 ft
- Construction adhesiveADH-PL-284 tubes
- Fastener setFAST-MANTEL1 set
- Finish consumablesFIN-CONS2 set
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Baseline package is tied to the listed planning codes and crew-hour allowance. Exact Spruce item numbers, current sell rates, appliance clearances and field dimensions require estimator approval before ordering.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Mantel shelfPOP nominal 1x10, 8 ft · Paint grade poplar and MDF | 1 EAPurchase quantity: review requiredQuote required | Quote required |
| Leg or pilaster blanksPOP nominal 1x7, 8 ft · Paint grade poplar and MDF | 2 EAPurchase quantity: review requiredQuote required | Quote required |
| Frieze or header blankPOP nominal 1x8, 12 ft · Paint grade poplar and MDF | 2 EAPurchase quantity: review requiredQuote required | Quote required |
| Build-up and panel stockPaint-grade MDF, 3/4 in · Paint grade poplar and MDF | 2 EAPurchase quantity: review requiredQuote required | Quote required |
| Applied profile packageCOVE-BEAD molding, 16 ft · Paint grade poplar and MDF | 4 EAPurchase quantity: review requiredQuote required | Quote required |
| Built-in cabinet casesPrefinished maple plywood, 3/4 in · Paint grade poplar and MDF | 3 EAPurchase quantity: review requiredQuote required | Quote required |
| Built-in backsPaint or stain-grade plywood, 1/2 in · Paint grade poplar and MDF | 2 EAPurchase quantity: review requiredQuote required | Quote required |
| Face frames and shelf nosingPOP nominal 1x2, 8 ft · Paint grade poplar and MDF | 16 EAPurchase quantity: review requiredQuote required | Quote required |
| Cabinet hardwareSoft-close hinges, levelers and pulls allowance · Paint grade poplar and MDF | 1 EAPurchase quantity: review requiredQuote required | Quote required |
| Wall cleats and blockingSPF 2x4 kiln-dried · Paint grade poplar and MDF | 3 EAPurchase quantity: review requiredQuote required | Quote required |
| Construction adhesivePremium panel/construction adhesive, 28 oz · Paint grade poplar and MDF | 4 EAPurchase quantity: review requiredQuote required | Quote required |
| Fastener set18 ga nails, trim screws and structural cleat screws · Paint grade poplar and MDF | 1 EAPurchase quantity: review requiredQuote required | Quote required |
| Finish consumablesFiller, caulk or color-match putty, abrasives · Paint grade poplar and MDF | 2 EAPurchase quantity: review requiredQuote required | Quote required |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- Exact SKU, purchase unit and public price basis require review.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
