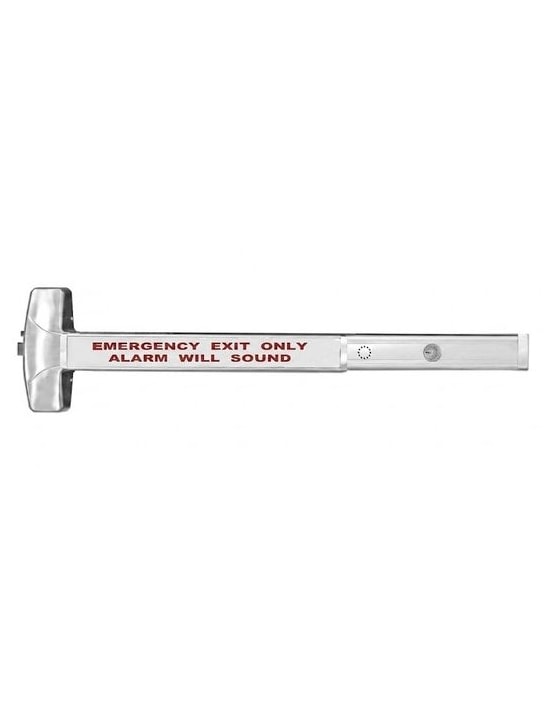

A7700 & AF7700 Rim Type Exit Device (ADA)

Specifications

Dimensions

Touchbar height to finished floor 41” (1041 mm) at center Touchbar projection Neutral 3 ⅝” (92 mm) Depressed 2 ⅞” (73 mm) Center case 8 ⅟16” x 2 ¾” x 2 ½” (205 mm x 70 mm x 63 mm) MODEL ACTUAL LENGTH MAX CUT DOWN DOOR SIZE A7700EO36, AF7700EO36 32” 6” 30” to 36” door width A7720EO48 , AF7720EO48 44” 10” 38” to 48” door width 4 ½” Minimum Stile Requirements *Refer to the Price List for Stock Sizes and Finishes *Americans with Disability Act (ADA) compliant 5 lbs opening force on ADA Series only ( FOR FIRE RATED RIM & VERTICAL
