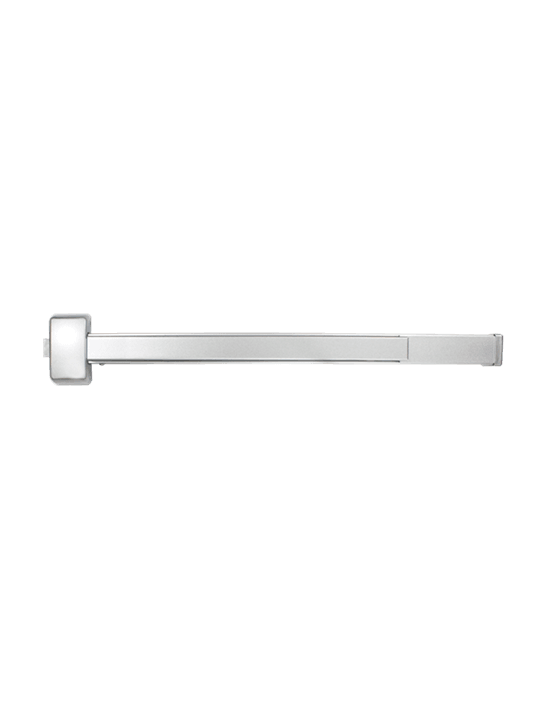

A2200 & AF2200 Rim Type Exit Device (ADA)

Specifications

Dimensions

Touchbar height to finished floor 41” (1041 mm) at center Touchbar projection Neutral 2 ½” (64 mm) Depressed 1 ¾” (45 mm) MODEL ACTUAL LENGTH MAX CUT DOWN DOOR SIZE A2200EO24 and AF2200EO24 20” 2” 22” to 24” door width A2200EO32 and AF2200EO32 28” 6” 26” to 32” door width A2200EO36 and AF2200EO36 32” 6” 30” to 36” door width A2220EO48 and AF2220EO48 44” 12” 36” to 48” door width
