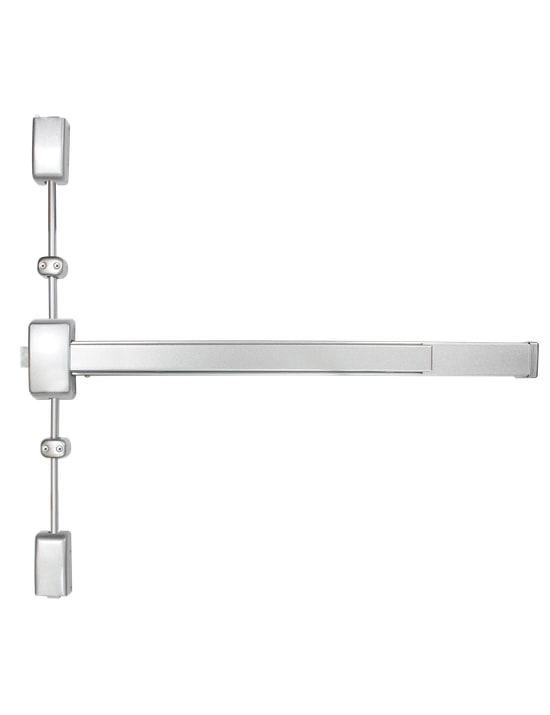

A2260V & AF2260V Surface Vertical Rod Type Exit Device (ADA)

Specifications

Dimensions

Touchbar height to finished floor 41” (1041 mm) at center Touchbar projection Neutral Depressed 2 ½” (64 mm) 1 ¾” (45 mm) Panic grade top & bottom latch case 3 15/16” x 2 ⅛” x 1 ⅜” (100 mm x 54 mm x 35 mm) Fire grade top latch case 3 15/16” x 2 11/16” x 2 1/16” (100 mm x 68 mm x 52 mm) Fire grade bottom latch case 3 15/16 x 2 ⅛” x 1 ⅜” (100 mm x 54 mm x 42 mm) Top and bottom rod length for 36” x 84” doors Top rod 39 3/16” (995 mm), bottom rod 37 3/16” (945 mm) Top and bottom rod length for 48” x 96” doors Top rod 51 3/16” (1300 mm), bottom rod 37 3/16” (945 mm) Vertical Rods ½” (13 mm) Round tubing MODEL ACTUAL LENGTH MAX CUT
